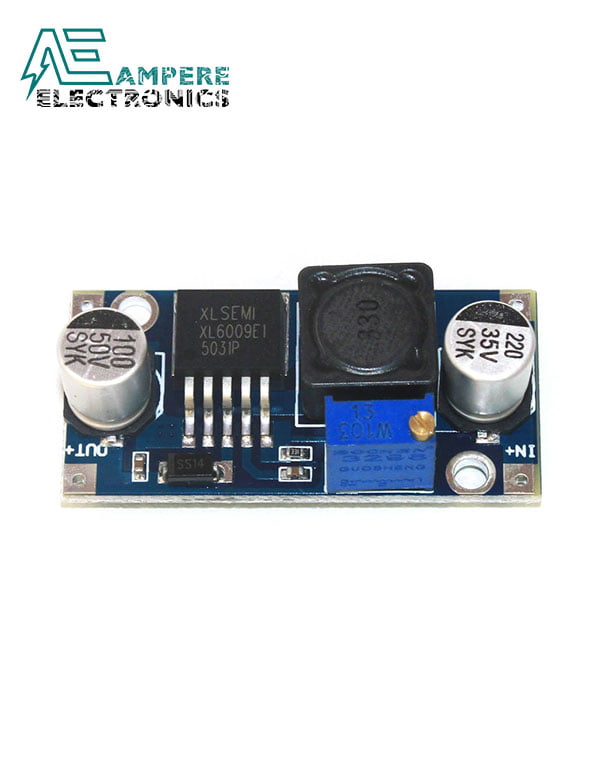

XL6009 DC-DC Boost Converter Module
45,00 EGP
XL6009 DC-DC Boost Converter Module
- Input voltage: 3 – 32V
- Output voltage: 5 – 35V (adjustable)
- Output current: Maximum output current 4A
- Note: The higher the voltage, the load current increases.
- Efficiency of this regulator upto <94%
- Load regulation: 0.5%
- Voltage regulation: 0.5%
- Adjustable potentiometer onboard for output voltage adjustment.
- Non – isolated constant voltage module.
- Non – synchronous rectification.
- Short circuit proportion: current limiting since the recovery.
- Dimension: 45*20*14 mm (L*W*H)
In stock
Description
XL6009 DC-DC Boost Converter Module
The XL6009 module is a DC to DC BUCK-BOOST converter module that operates at a switching frequency of 400kHz. In such high frequency, it provides smaller sized filter components compared with low frequency switching regulators. It is the upgraded version of the LM2577 based module.
Pin Out:
| Pin Name | Description |
| IN+ | Positive input (Unregulated or Regulated) |
| IN- | Negative input (Ground) |
| OUT+ | Positive Output (Regulated) |
| OUT- | Negative Output (Ground) |
Applications:
- DIY based power supply
- To serve the power requirements of Audio-based circuits
- High current applications with small space
Package Includes:
- 1x XL6009 Converter Module
