SKU: 23834
UT681C Cable Tester Network/Telephone Line Dual Tester | UNI-T
350,00 EGP

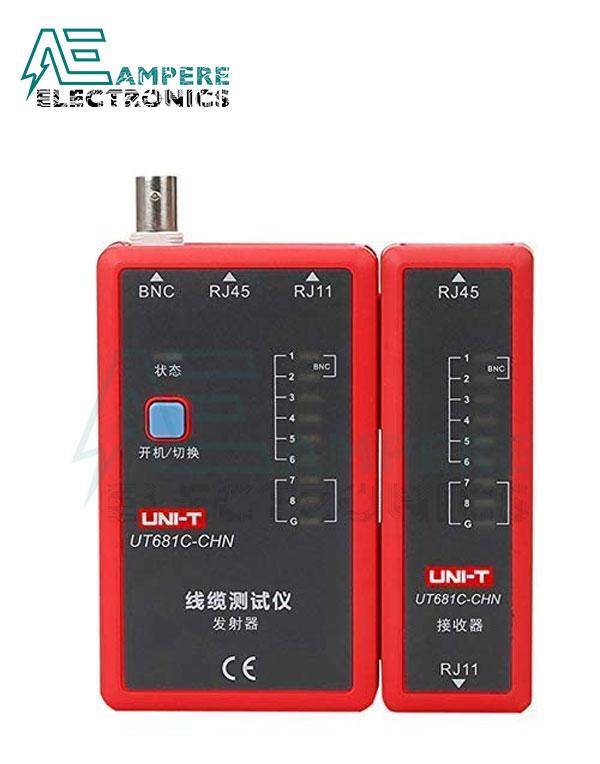

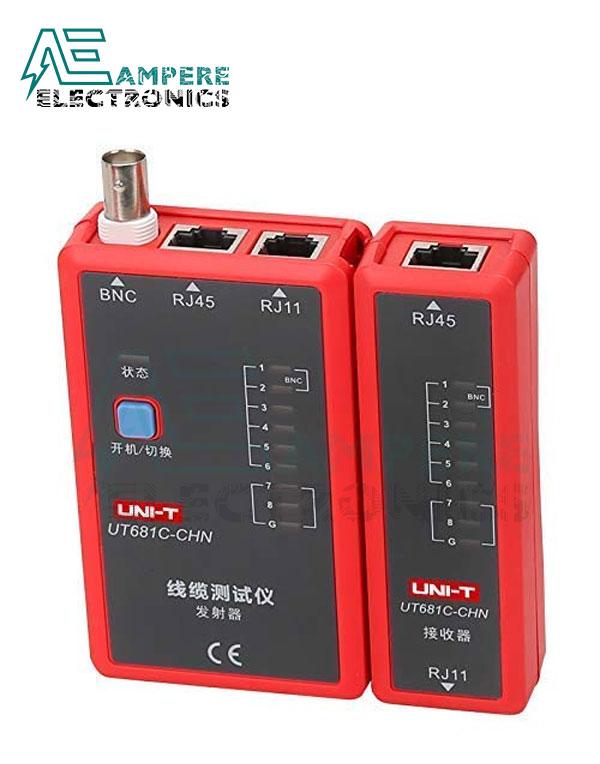

UT681C Cable Tester
- LED status display
- Auto check of open/short/crossover circuit
- Single key operation
- Manual/auto power off (after10-minute inactivity)
- Low battery indication

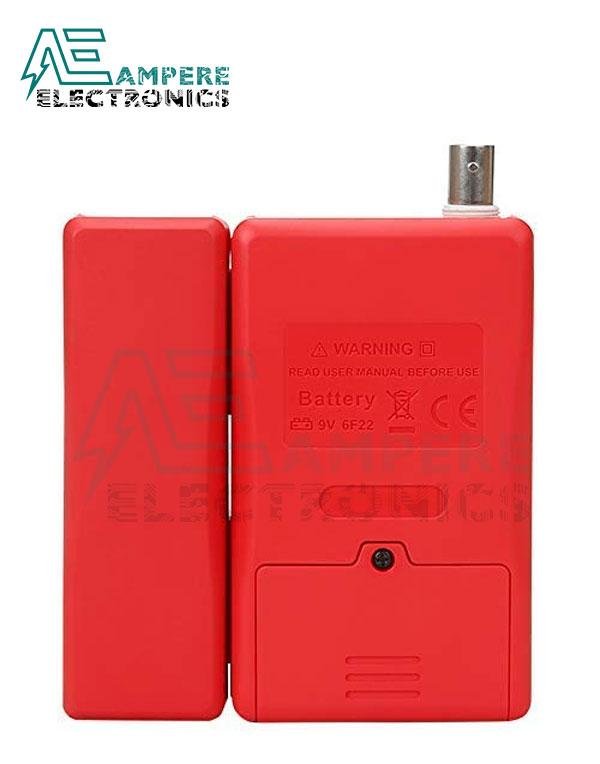

- Power supplied by 9V battery
Out of stock
Description
UT681C Cable Tester Network/Telephone Line Dual Tester | UNI-T
UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.
Specifications:
Specifications | Range | UT681L | UT681C | UT681HDMI | Description |
Test function | To test for: RJ45/RJ11 | √ | |||
To test for: RJ45/RJ11/BNC | √ | Need to use RJ45 to BNC adaptor | |||
To test for: HDMI/MINI-HDMI | √ | ||||
Fast test mode | √ | √ | LED1~LED8, LED_G | ||
Slow test mode | √ | √ | LED1~LED8, LED_G | ||
Scan test mode | √ | LED1~LED19, LED_S | |||
Full display test mode | √ | LED1~LED19, LED_S | |||
To test for the case of short circuit, crossover, open circuit, etc. | √ | √ | √ | ||
Ethernet cable: shielded/ unshielded test | √ | √ | √ | ||
Manual shutdown function | √ | √ | √ | ||
Auto shutdown function | √ | √ | √ | No operation within 10 minutes, the device will shut down automatically | |
Single key operation | √ | √ | √ | ||
Power supply: 9V battery | √ | √ | √ | ||
Low battery detection | √ | √ | √ | Less than 7.2V | |
Application environment | Operating temperature: 0~40℃ | √ | √ | √ | |
Storage temperature: -10~50℃ | √ | √ | √ | ||
Operating humidity: 20~80%RH | √ | √ | √ | ||
Storage humidity: 10~90%RH | √ | √ | √ | ||
Altitude: ≤2000 meters | √ | √ | √ | ||
Safety standard | CE EN61326-1: 2013; EN61326-2-2: 2013 | √ | √ | √ | |
General Characteristics | |||||
Product color | Red and grey | ||||
Product net weight | Transmitter: 87g; receiver: 51g | ||||

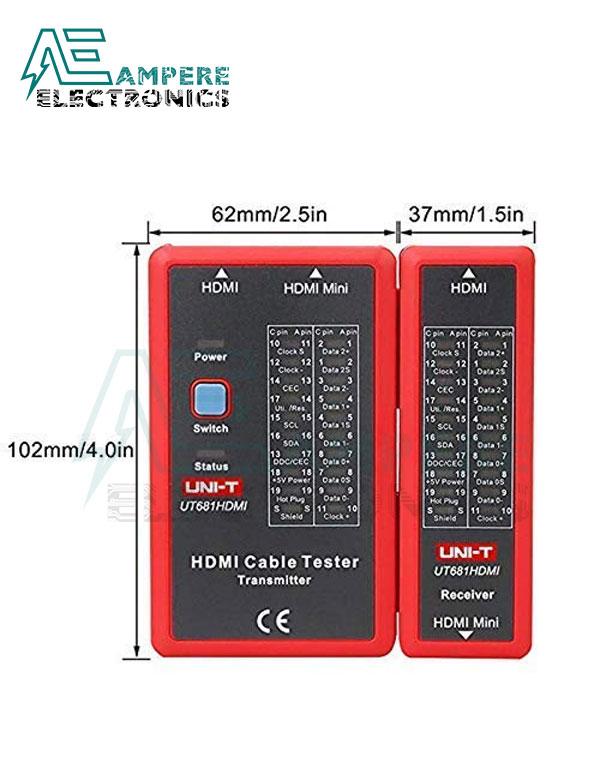

Product size | Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm | ||||
Standard accessories | 9V battery, BNC to RJ45 adaptor (UT681C) | ||||
Standard individual packing | Gift box, English manual | ||||
Standard quantity per carton | 40pcs | ||||
Standard carton measurement | 455mm x 410mm x 225mm | ||||
Standard carton gross weight | UT681L: 6.4kg; UT681C: 8.7kg; UT681HDMI: 9.5kg |
