SKU: 22685
UT61E Modern Digital Multimeter | UNI-T
1.750,00 EGP

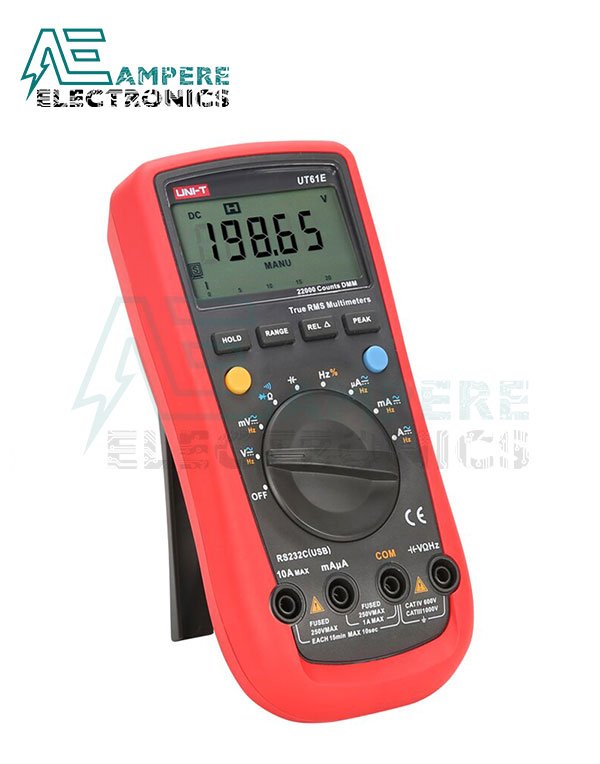

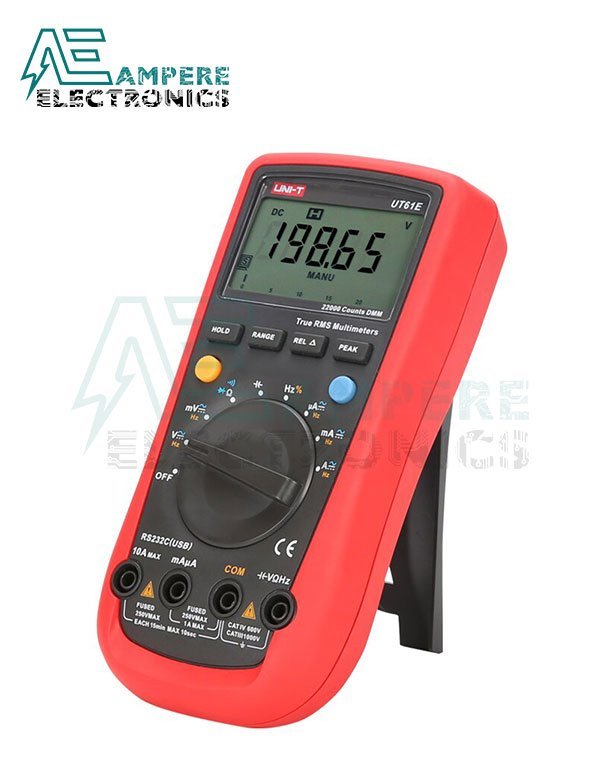

UT61E Modern Digital Multimeter
- Auto range
- MAX/MIN/REL mode
- RS-232 and USB interface
- Analog bar graph
- Low battery indication
- True RMS
- Peak value/hold
- Diode/continuity buzzer
- Data hold
- Input protection
Out of stock
Description
UT61E Modern Digital Multimeter | UNI-T
UT61 series complies with CE, ETL, and GS standards. This series is all auto range with
selectable True RMS models (UT61D/E). This series has an abundant of features and
combined with high safety rating of CAT IV 600V. It is suitable for
advanced electronics and electrical users.
Features:
- Auto range
- MAX/MIN/REL mode
- RS-232 and USB interface
- Analog bar graph
- Low battery indication
- True RMS
- Peak value/hold
- Diode/continuity buzzer
- Data hold
- Input protection
| Specifications | Range | UT61E |
| DC voltage (V) | 1000V | ?(0.1%+2) |
| AC voltage (V) | 750V | ?(0.8%+10) |
| DC current (A) | 10A | ?(0.5%+10) |
| AC current (A) | 10A | ?(0.8%+10) |
| Resistance (?) | 220M? | ?(0.5%+10) |
| Capacitance (F) | 220mF | ?(3%+5) |
| Frequency (Hz) | 10Hz~220MHz | ?(0.01%+5) |
| Features | ||
| Display count | 22000 | |
| Bandwidth (Hz) | 45Hz~10kHz | |
| Duty cycle | 0.1%~99.9% | ? |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 65mm x 43mm | |
| Product color | Red and grey | |
| Product net weight | 370g | |
| Product size | 180mm x 87mm x 47mm | |
| Standard accessories | Battery, test leads, multi-purpose socket, RS-232 interface cable, PC software CD | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 22pcs | |
| Standard carton measurement | 455mm x 335mm x 375mm | |
| Standard carton gross weight | 12.9kg | |
| Optional accessory | USB interface cable | |
