SKU: 22818

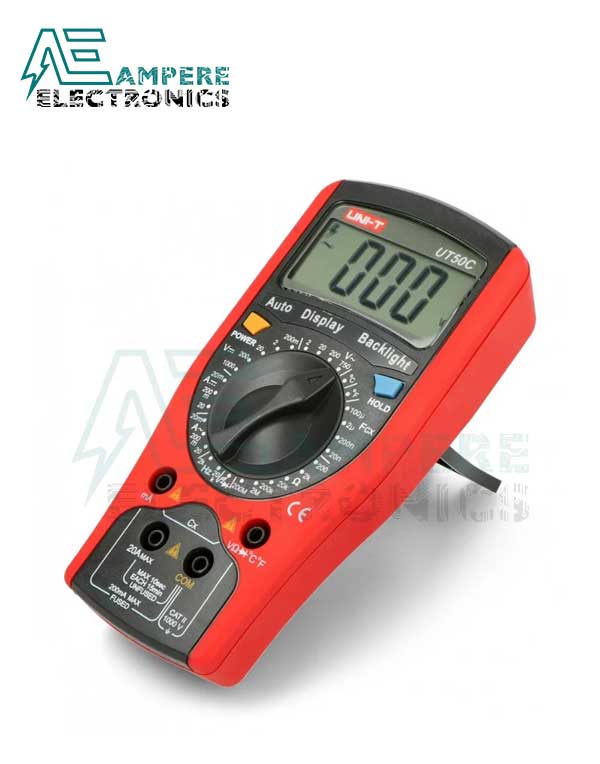

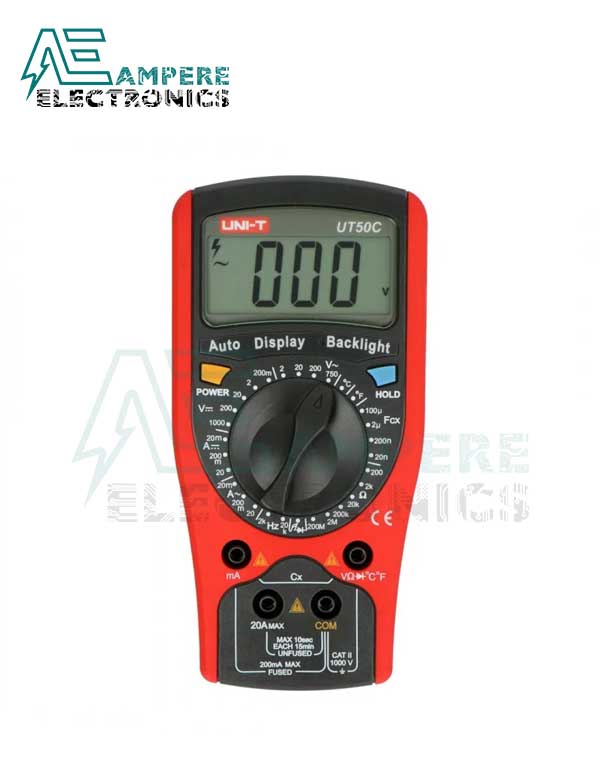

UT50C Digital Multimeter | UNI-T
557,75 EGP
UT50C Digital Multimeter | UNI-T
- Diode
- Continuity buzzer
- Data Hold
- Icon display
- Sleep mode
- Low battery display
- Input impedance for DC voltage: 10 MOhm
- Display backlight – auto sensor
- Max. display 1999 (59 x 25mm)
Out of stock
Description
UT50C Digital Multimeter | UNI-T
Multimeter can measure voltage DC and AC up to 1 kV, flow, AC and DC current to 20 A, resistance, frequency and capacitance. The device has a?backlight?function, recording of the last measurement result, standby mode and warning sound.?The meter is powered by the popular 9V battery, which is also included.?The battery discharge is displayed?on?a digital indicator. Everything is?enclosed in?a protected, original box.

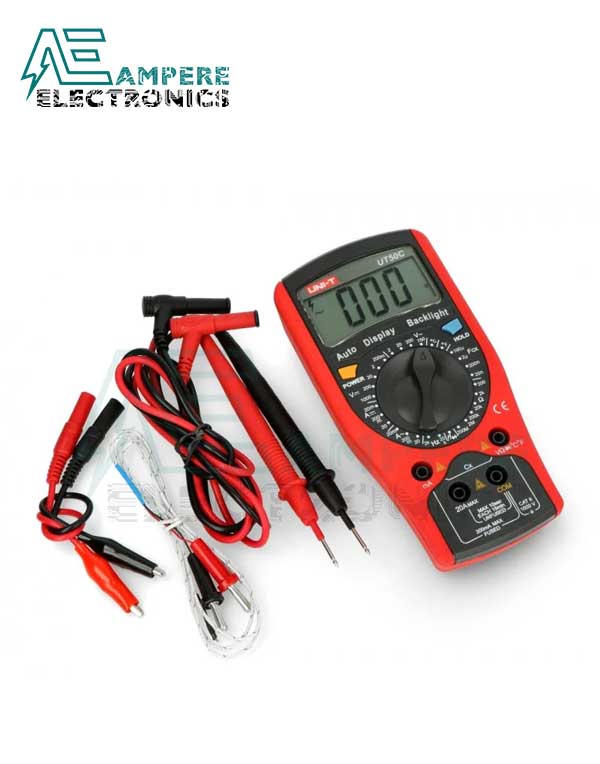

Includes:
- Test leads
- Probe for temperature measurement
- 9 V Battery
- Instruction: in English and Polish
- Warranty: 24 months
Specifications | Range | Best Accuracy |
| Model | UT50C | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ?(0.5%+1) |
| AC Voltage (V) | 2V/20V/200V/750V | ?(0.8%+3) |
| DC Current (A) | 20mA/200mA/20A | ?(0.8%+1) |
| AC Current (A) | 20mA/200mA/20A | ?(1%+3) |
| Resistance (?) | 200?/2k?/20k?/200k?/2M?/20M?/200M? | ?(0.8%+1) |
| Capacitance (F) | 20nF/200nF/2?F/100?F | ?(4%+3) |
| Temperature (?F) | -40oF~1832oF | ?(1%+4) |
| Temperature (?C) | -40?~1000? | ?(1%+3) |
| Frequency (Hz) | 2kHz/20kHz | ?(1.5%+5) |
Features | ||
| Full Icon Display | ? | |
| Diode | ? | |
| Continuity Buzzer | ? | |
| Low Battery Display | ? | |
| Input Impedance for DC Voltage Measurement | 10M? | ? |
| Data Hold | ? | |
| Display Backlight | Auto | ? |
| Max. Display | 1999 | ? |
| Auto Power Off | ? | |
Device Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 95mm?25mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 275g | |
| Product Size | 165mm?80mm?38.3mm | |
| Standard Accessories | Test Lead, Battery, Point Contact Temperature Probe, Test Clip | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 Pcs | |
| Standard Carton Measurement | 588mm?408mm?326mm( 0.085 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 20.5kg | |
| Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) | |
Includes:
- Test leads
- Probe for temperature measurement
- 9 V Battery
- Instruction: in English and Polish
- Warranty: 24 months
