SKU: 22688
UT50A Digital Multimeter | UNI-T
529,00 EGP

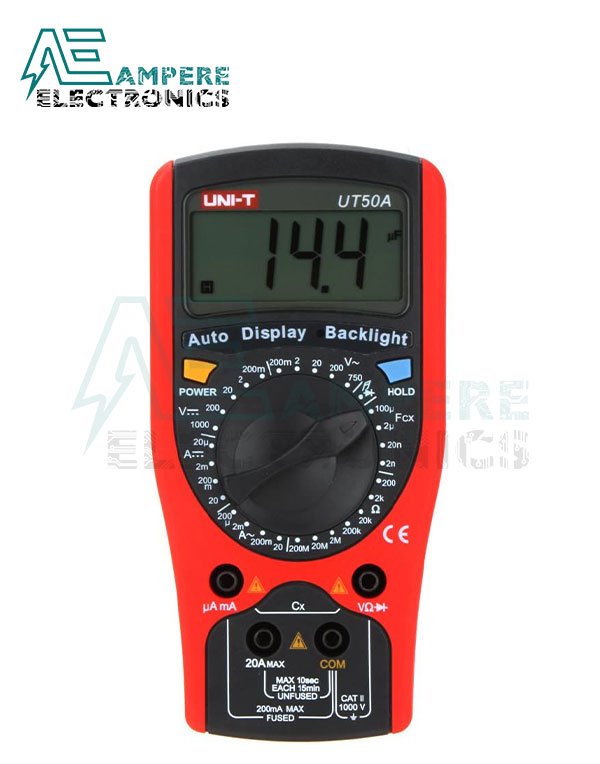

UT50A Digital Multimeter
- automatic power-off
- HOLD function
- low battery indicator
- manual ranging
Out of stock
Description
UT50A Digital Multimeter | UNI-T
UNI-T UT50A Modern Digital Multimeter with AC current measuring range of 20 mA/200mA/20A modern design with automatic back light is an economical option for a reliable multimeter. This digital meter from UNI-T uses large scale of integrated circuit with double integrated A/D converter as its core and has full range overload protection. It can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Frequency, Diodes and Continuity.
Specifications | Range | Best Accuracy |
| Model | UT50A | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ?(0.5%+1) |
| AC Voltage (V) | 200mV/2V/20V/200V/750V | ?(0.8%+3) |
| DC Current (A) | 20mA/2mA/200mA/20A | ?(0.8%+1) |
| AC Current (A) | 200mA/2mA/200mA/20A | ?(1%+3) |
| Resistance (?) | 200?/2k?/20k?/200k?/2M?/20M?/200M? | ?(0.8%+1) |
| Capacitance (F) | 2nF/20nF/2?F/100?F | ?(4%+3) |
Features | ||
| Full Icon Display | ? | |
| Diode | ? | |
| Continuity Buzzer | ? | |
| Low Battery Display | ? | |
| Input Impedance for DC Voltage Measurement | 10M? | ? |
| Data Hold | ? | |
| Display Backlight | Auto | ? |
| Max. Display | 1999 | ? |
| Auto Power Off | ? | |
Device Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 95mm?25mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 275g | |
| Product Size | 165mm?80mm?38.3mm | |

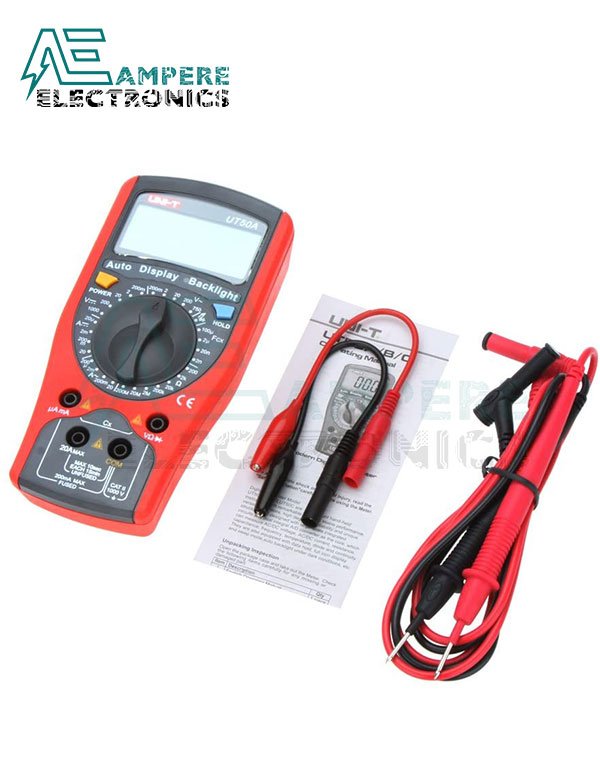

| Standard Accessories | Test Lead, Battery, Test Clip | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 Pcs | |
| Standard Carton Measurement | 588mm?408mm?326mm( 0.085 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 20kg | |
| Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) | |
