SKU: 23465
UT502A Insulation Resistance Meter | UNI-T
1.851,50 EGP

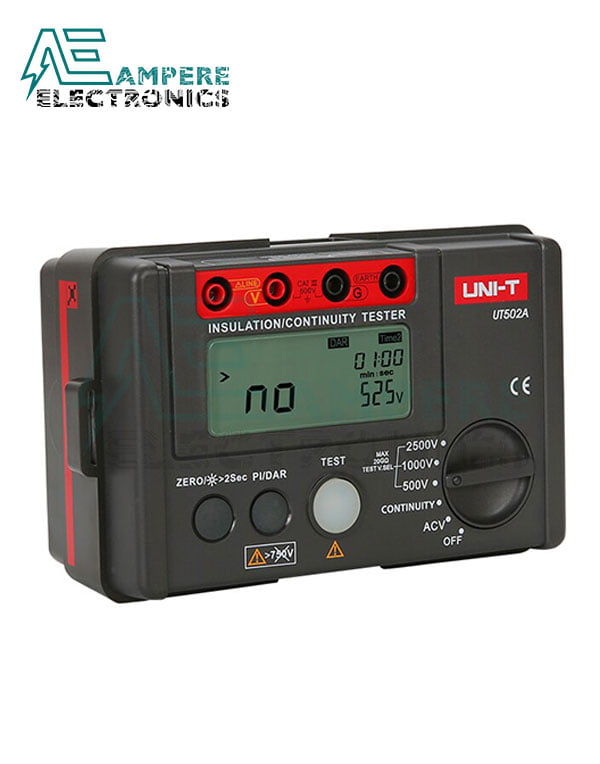

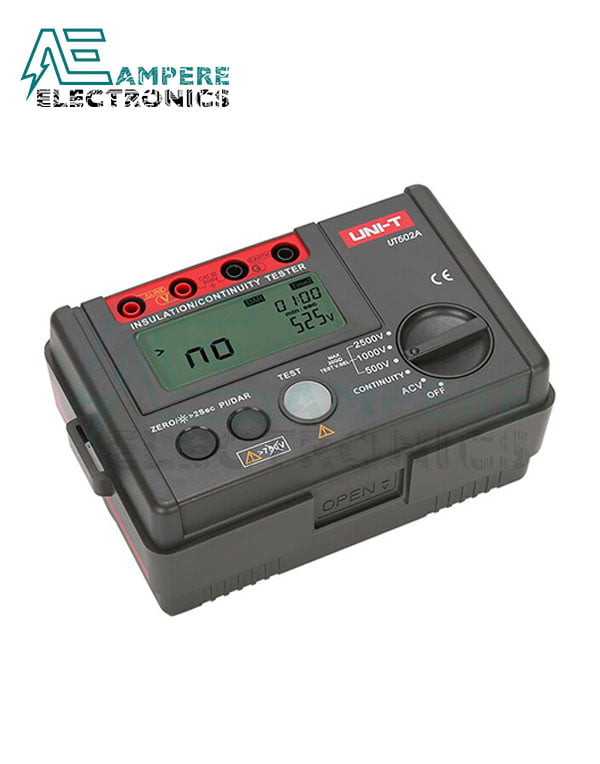

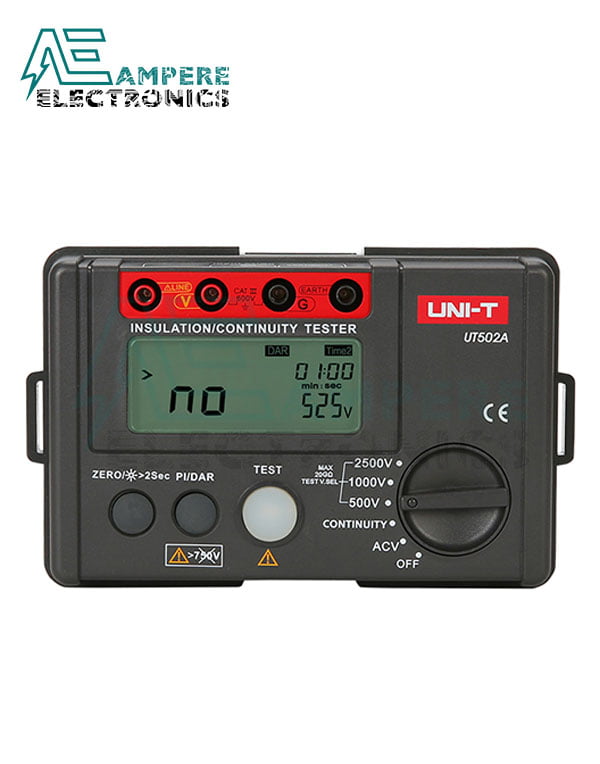

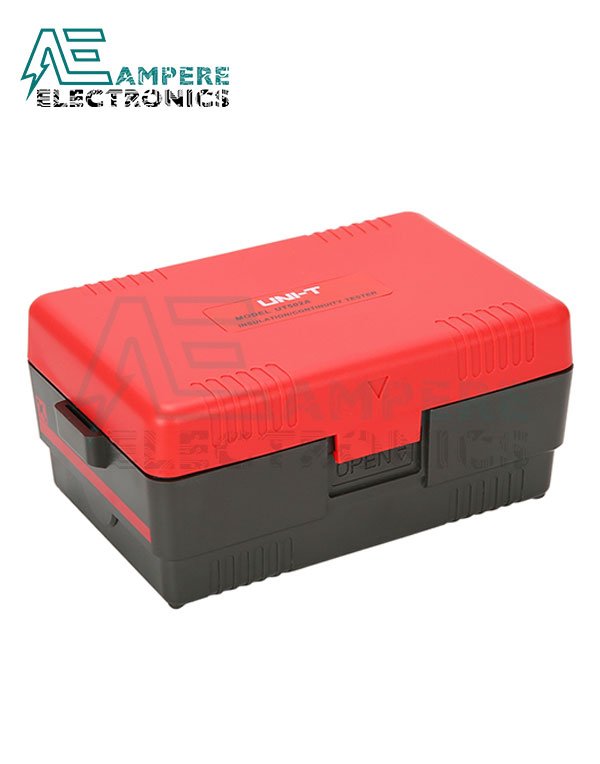

UT502A Insulation Resistance Meter
Out of stock
Description
UT502A Insulation Resistance Meter | UNI-T
It is used for insulation resistance measurement for insulation materials and various kinds of electric equipment’s such as transformer, electric machines, cables, switches, electrical appliance, a ideal tool for electric maintenance, testing and inspection.
| Specifications | Range | UT502A | |
| Insulation resistance (?) | Test voltages | 500V/1000V/2500V | 0%~10% |
| 500V | 0M?~99.9M? | ?(3%+5) | |
| 100M?~5G? | ?(5%+5) | ||
| 1000V | 0M?~99.9M? | ?(3%+5) | |
| 100M?~5G? | ?(5%+5) | ||
| 2500V | 0M?~99.9M? | ?(3%+5) | |
| 100M?~9.9G? | ?(5%+5) | ||
| 10G?~20G? | ?(10%+5) | ||
| Load current | 50V (R=50k?) 1mA | 0%~10% | |
| 100V (R=100k?) 1mA | 0%~10% | ||
| 250V (R=250k?) 1mA | 0%~10% | ||
| 500V (R=500k?) 1mA | 0%~10% | ||
| 1000V (R=1M?) 1mA | 0%~10% | ||
| 2500V (R=1M?) 1mA | 0%~10% | ||
| Short-circuit current | <2mA | ||
| Low resistance (?) | 0.01?~200? (about 5.0V/>200mA? | ?(2%+3) | |
| AC voltage (V) | 30V~600V | ?(2%+3) | |
| Features | |||
| Display count | 2000 | ||
| DAR | 60s/15s and 60s/30s | ? | |
| PI | ? | ||
| Auto range/Low battery indication | ? | ||
| LCD backlight/Light alarm | ? | ||
| Buzzer alarm/High voltage indication | ? | ||
| Over load indication/Auto discharge | ? | ||
| Test voltage secondary display | ? | ||
| 10M? internal resistance test | ? | ||
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007; 61557-4:2007 | ||
| General Characteristics | |||
| Power | 1.5V battery (LR6) x 6 | ||
| Display | 70.6mm x 34mm | ||
| Product color | Red and grey | ||
| Product net weight | 500g | ||
| Product size | 150mm x 100mm x 71mm | ||
| Standard accessories | Batteries, test leads, alligator clips, Gallus, test probes | ||
| Standard individual packing | Gift box, carrying bag, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 500mm x 380mm x 330mm (0.063 CBM per standard carton) | ||
| Standard carton gross weight | 18.9kg | ||
