SKU: 22726
UT213C Digital Clamp Meter 400A | UNI-T
1.123,55 EGP

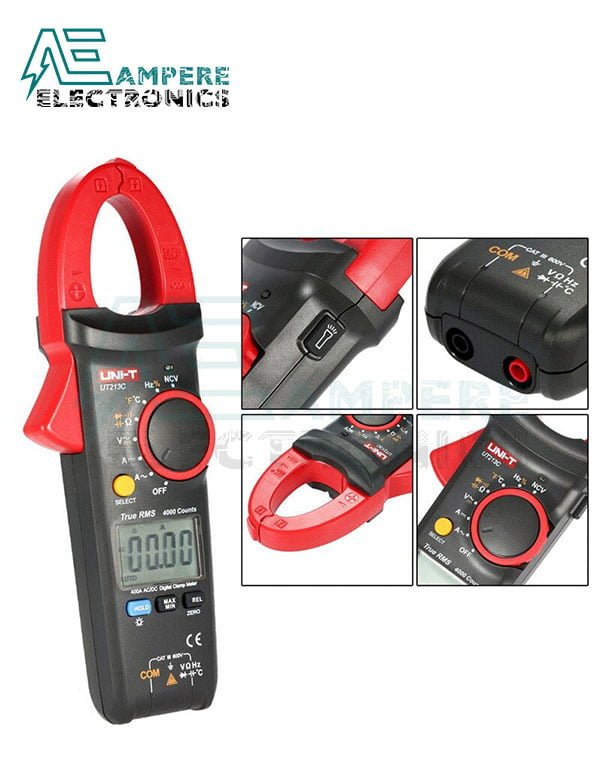

UT213C Digital Clamp Meter
UT213 series is 400A digital clamp meter with CAT III 600V safety standards. These meters
are designed for electricians and HVAC/R technicians. The built-in flashlight also makes
these meters useful tools when working in dark environments.
Out of stock
Description
UT213C Digital Clamp Meter 400A | UNI-T
UT213 series is 400A digital clamp meter with CAT III 600V safety standards. These meters
are designed for electricians and HVAC/R technicians. The built-in flashlight also makes
these meters useful tools when working in dark environments.
| Specifications | Range | UT213C |
| AC current (A) | 400A | ?(2.5%+5) |
| DC current (A) | 400A | ?(2%+3) |
| AC voltage (V) | 600V | ?(1.2%+5) |
| DC voltage (V) | 600V | ?(0.8%+3) |
| Resistance (?) | 40M? | ?(1%+2) |
| Capacitance (F) | 40mF | ?(4%+5) |
| Frequency | 10Hz~1MHz | ?(0.1%+4) |
| Temperature | -40?~1000? | ?(1%+3) |
| -40?~1832? | ?(1%+6) | |
| Features | ||
| Display count | 4000 | |
| Auto range | ? | |
| Jaw opening | 30mm | |
| True RMS | ? | |
| Diode | Around 3.0V | |
| NCV | ? | |
| Data hold | ? | |
| Relative mode | ? | |
| MAX/MIN | ? | |
| LCD backlight | ? | |
| Flashlight | ? | |
| Auto power off | ? | |
| Continuity buzzer | ? | |
| Low battery indication | ? | |
| Input protection | ? | |
| Input impedance for DCV | ? | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 38mm x 24mm | |
| Product net weight | Red and grey | |
| Product color | 231.7g | |
| Product size | 220mm x 75mm x 40mm | |
| Standard accessories | Batteries, test leads, point contact temperature probe | |
| Standard individual packing | Gift box, carrying bag, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton measurement | 485mm x 345mm x 385mm | |
| Standard carton gross weight | 19.4kg | |
