Name: UT204A Digital Clamp Meter 600A-600V | UNI-T | Ampere Electronics
SKU: 22673
Price: 785.00 EGP
Availability: OutOfStock

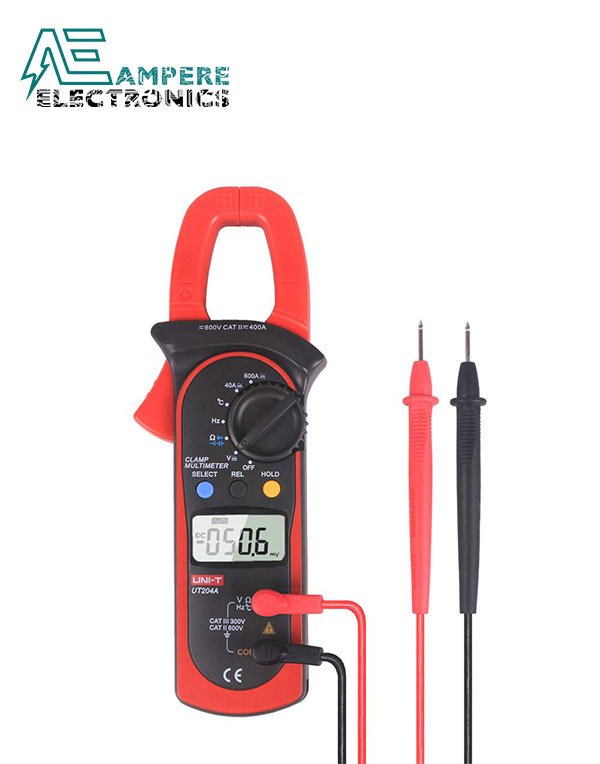

UT204A Digital Clamp Meter 600A-600V | UNI-T

785,00 EGP

UT204A Digital Clamp Meter

Relative mode for capacitance zeroing and o?set adjustment
Auto range
Data hold/auto power o?
Point contact temperature probe
3 times/s sampling rate
Capacitance measurement up to 100uF
Low battery/over-range indication and auto polarity display

Out of stock

SKU: 22673 Category: Uni-T

Description

UT204A Digital Clamp Meter 600A-600V | UNI-T

This series is UNI-T?s entry level digital clamp meter. It is a great choice for measuring
residential and commercial power wires. UT202 and UT204A come with
point contact temperature probe, perfect for working in HVAC.

Features:

Relative mode for capacitance zeroing and o?set adjustment
Auto range
Data hold/auto power o?
Point contact temperature probe
3 times/s sampling rate
Capacitance measurement up to 100uF
Low battery/over-range indication and auto polarity display

Specifications	Range	UT204A
AC current (A)	600A	?(2.5%+5)
DC current (A)	600A	?(2%+5)
AC voltage (V)	600V	?(1%+5)
DC voltage (V)	600V	?(0.8%+1)
Resistance (?)	40M?	?(1%+2)
Capacitance (F)	100?F	?(4%+3)
Frequency (Hz)	10Hz~10MHz	?(0.5%+3)
Temperature	-40?C~1000?C	?(2.5%+3)
Display count		4000
Auto range		?
General Characterisitics
Power	9V battery (6F22)
Display	35.6mm x 18mm
Product color	Red and grey
Product net weight	260g
Product size	208mm x 76mm x 30mm

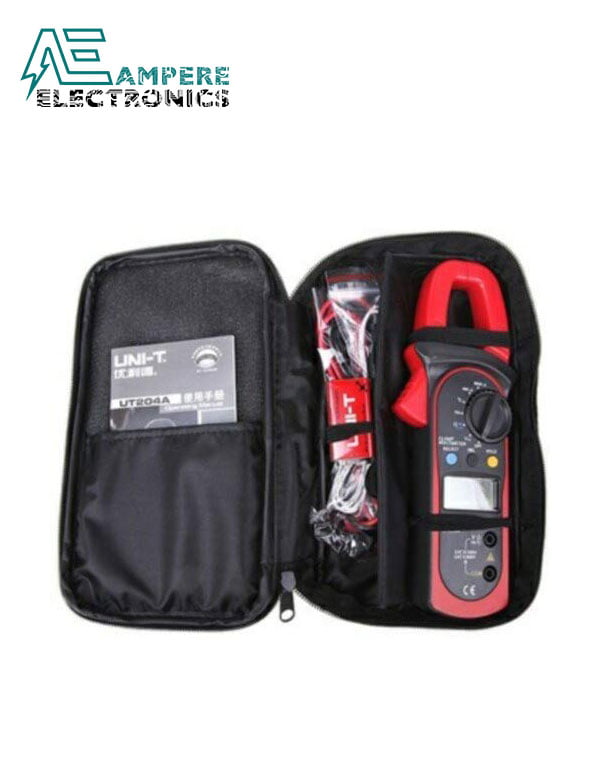

Standard accessories	Batteries, test leads, carrying bag, point contact temperature probe
Standard individual packing	Gift box, English manual
Standard quantity per carton	48pcs
Standard carton measurement	485mm x 320mm x 385mm
Standard carton gross weight	17kg
