Description

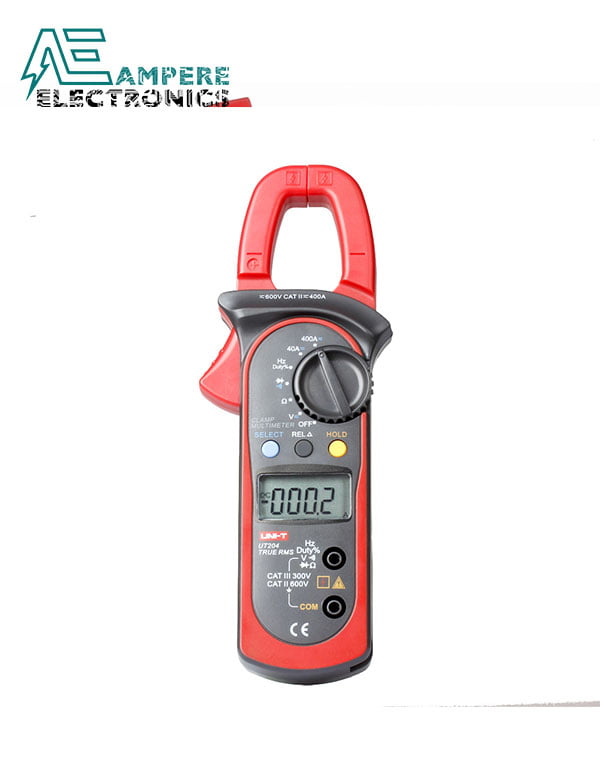

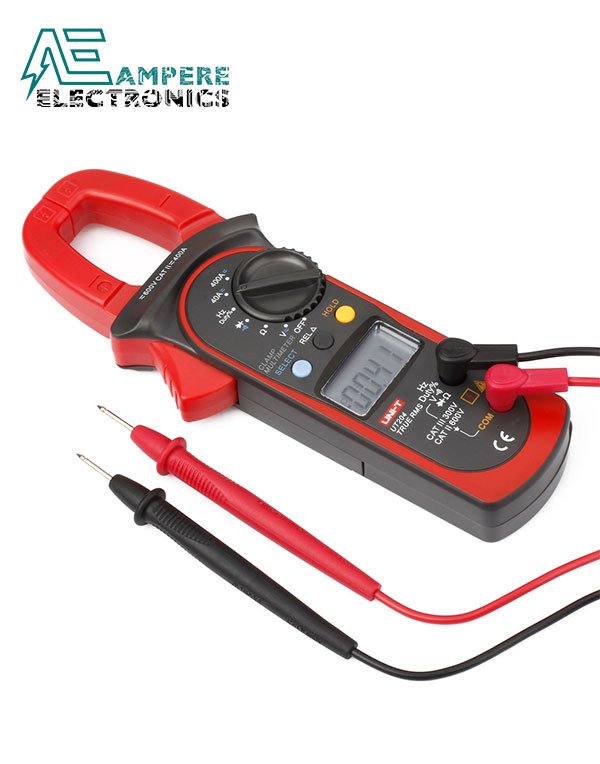

UT204 Digital Clamp Meter 400A-600V | UNI-T
UT204 is a 400A auto ranged True RMS digital clamp meter.
Non-linear signal can be precisely measured
Features:
- Auto range
- Data hold/auto power off
- 3/s sampling rate
- Low battery prompt, over-range prompt and auto polarity display
| Specifications |
| Model | ? | UT204 |
| AC Current (A) | 40A/400A | ?(2.5%+5) |
| DC Current (A) | 40A/400A | ??(2%+3) |
| AC Voltage (V) | 4V/40V/400V/600V | ?(1%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ?(0.8%+1) |
| Resistance (?) | 400?/4k?/40k?/400k?/4M?/40M? | ?(1%+2) |
| Frequency (Hz) | 10Hz ~ 10MHz | ?(0.1%+3) |
| Features |
| Display Count | | 3999 |
| Auto Range | | ? |

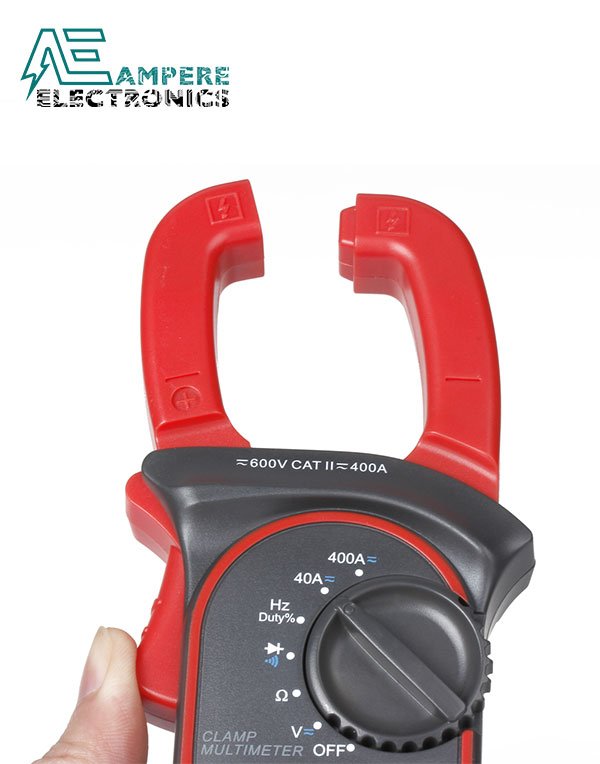

| Jaw Capacity | | 28mm |
| True RMS | | ? |
| Duty Cycle | 0.1%~99.9% | ? |
| Diode | | ? |
| Auto Power Off | | ? |
| Continuity Buzzer | | ? |
| Data Hold | | ? |
| Relative Mode | | ? |
| Setup | | ? |
| Input Impedance for DCV | Around 10M? | ? |
| General Characteristics? |
| Power | 9V Battery (6F22) |
| LCD Size | 35.6mm x18mm |
| Product Color | Red and grey |
| Product Net Weight | 260g |
| Product Size | 208mm X 76mm X30mm |

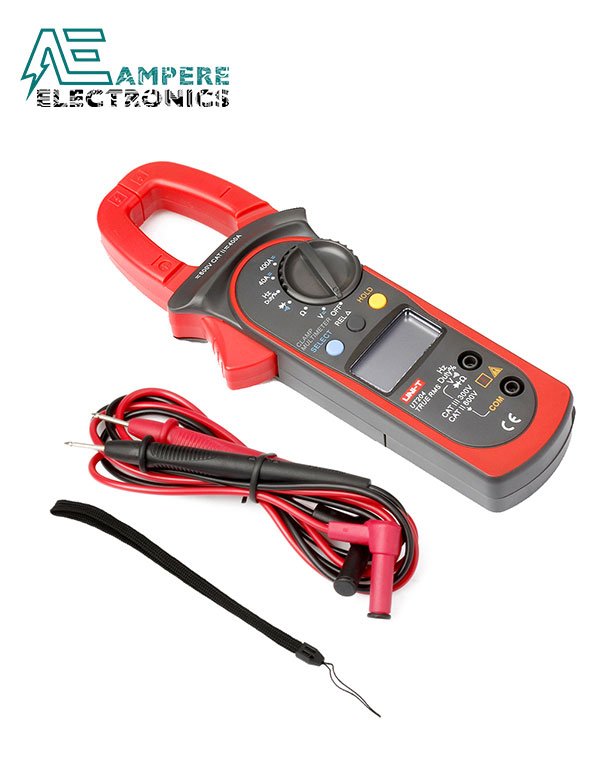

| Standard Accessories | Battery, Test Lead, Carrying Bag |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 48pcs |
| Standard Carton? Measurement | 503?485?295mm (0.072 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 58kg |
