SKU: 26358

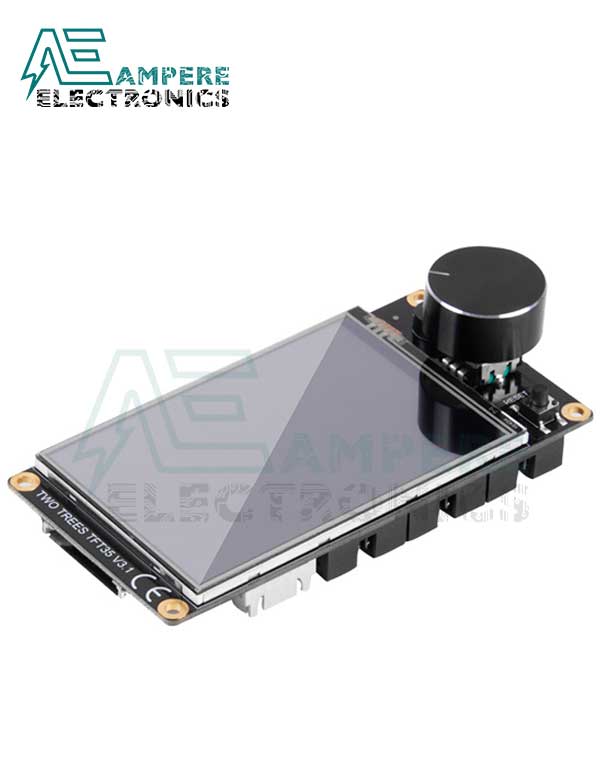

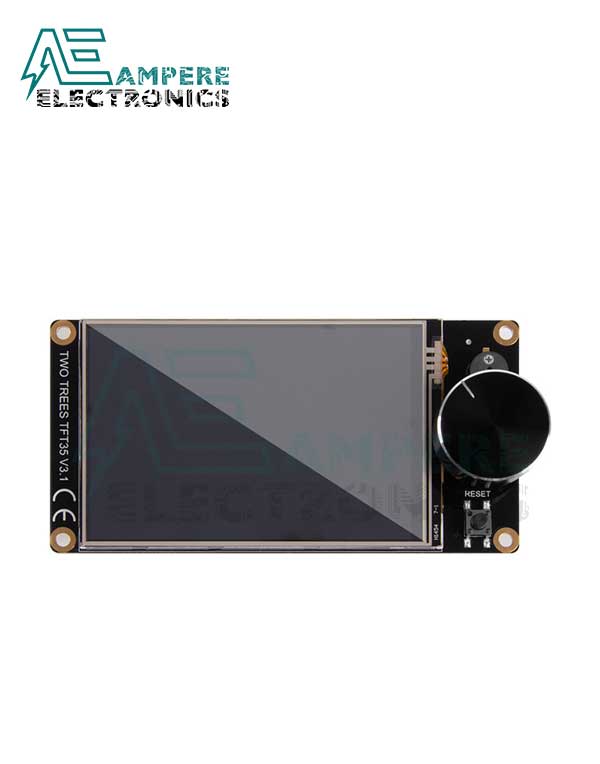

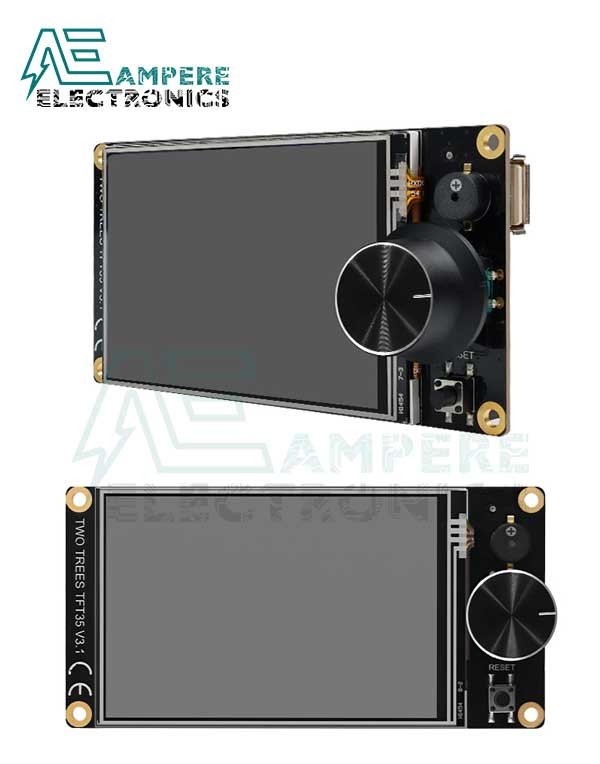

Two Trees TFT35 V3.1 Display – Two Working Modes

2.850,00 EGP

Two Trees TFT35 V3.1 Display – Two Working Modes

  • Supply voltage: 5 Vdc
  • SD card reader logic voltage: 3.3 – 5 Vdc
  • Display diagonal: 3,5”
  • Controller chip: STM32F207VCT6 32-bit with ARM Cortex-M3 core
  • Two operating modes: touch screen display or LCD 12864
  • Module equipped with USB port and SD card socket
  • Dimensions: 110 x 58 mm



Only 2 left in stock

SKU: 26358 Categories: ,

Description

Two Trees TFT35 V3.1 Display – Two Working Modes

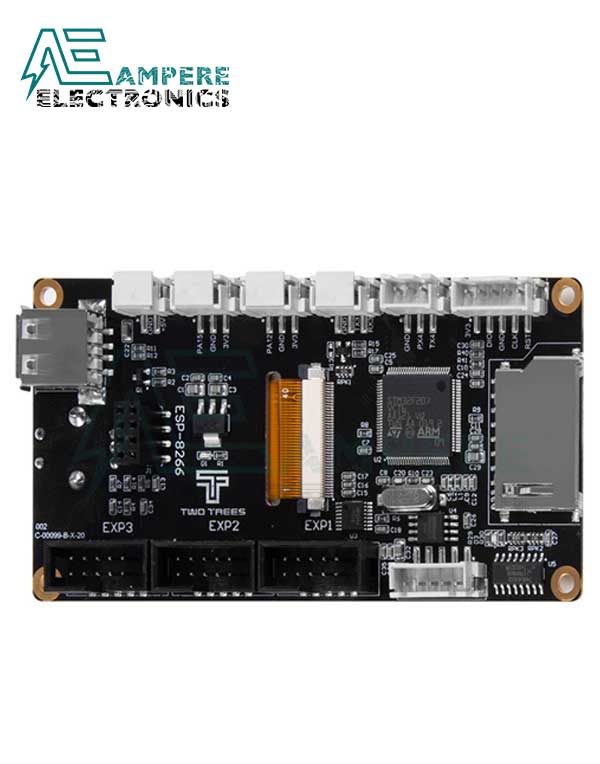

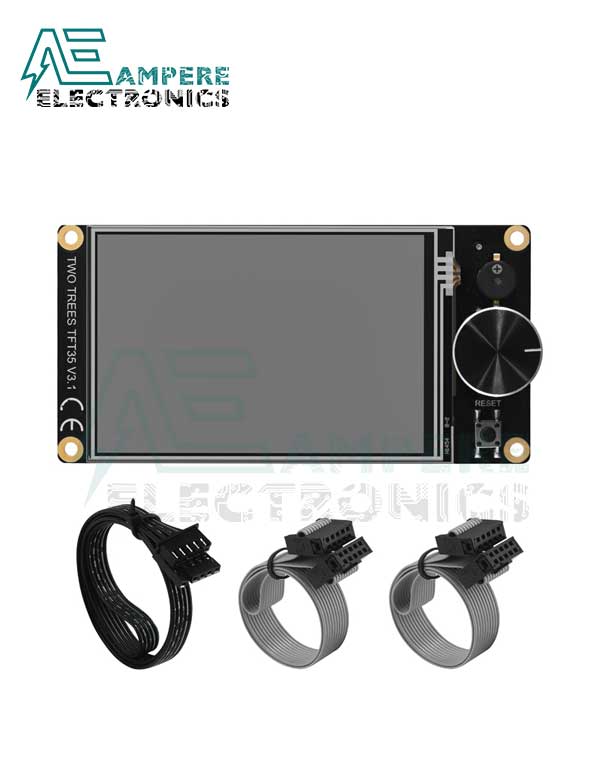

3,5”display allows to work in two modes, depending on the way of connection to the motherboard and chosen firmware. It can work as touchscreen or as simple LCD display type 12864. It works with voltage of 5V. The display is equipped with 32-bit STM32F207VCT6 chip with ARM Cortex-M3 core. There is additionally a USB port and an SD card reader on the board. TFT35 V3.0 offers the possibility to extend its functionality with Wi-Fi¬†connectivity based on ESP-8266 module. Connection cables are included.

Specifications:

  • Supply voltage: 5 Vdc
  • SD card reader logic voltage: 3.3 – 5 Vdc
  • Display diagonal: 3,5”
  • Controller chip: STM32F207VCT6 32-bit with ARM Cortex-M3 core
  • Two operating modes: touch screen display or LCD 12864
  • Module equipped with USB port and SD card socket
  • Dimensions: 110 x 58 mm

Package Includes:

  • 1x Two Trees TFT35 V3.1 Display

User Manual:
