TMC2208 V1.2 Stepper Motor Driver Module

Description

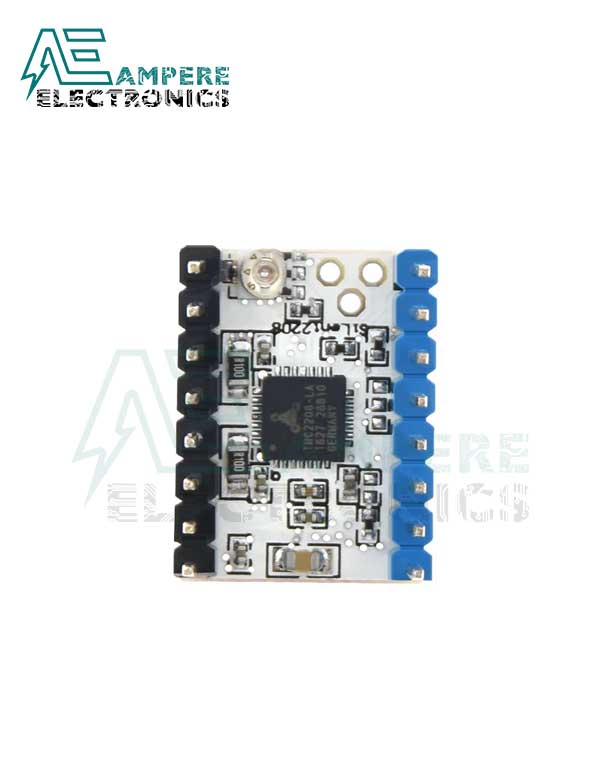

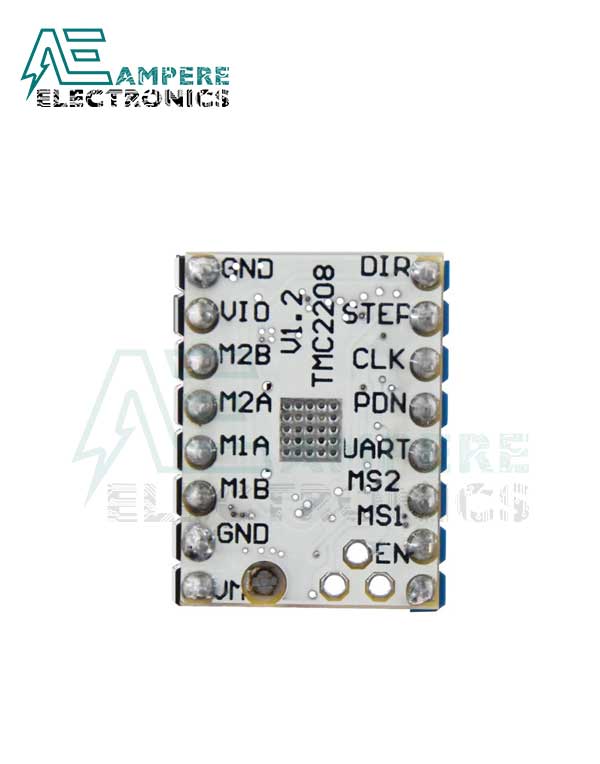

TMC2208 V1.2 Stepper Motor Driver Module

The TMC2208 is an advanced and powerful stepper driver. It is mostly used in 3D printers? driver motors with continuous drive current 1.2A, peak current 2A, voltage range 4.75V-36V. The TMC2208 stepper driver supports 256 micro steps (very smooth stepper motor motion).

Specifications:

• Configuration: CFG or UART
• Microsteps: Up to 1/256
• MicroPlyer: 1/256
• Logic Voltage VI0: 3-5V
• Motor Voltage :?5.5-36V
• Motor Phase Current: 1.2A RMS, 2.0A Peak

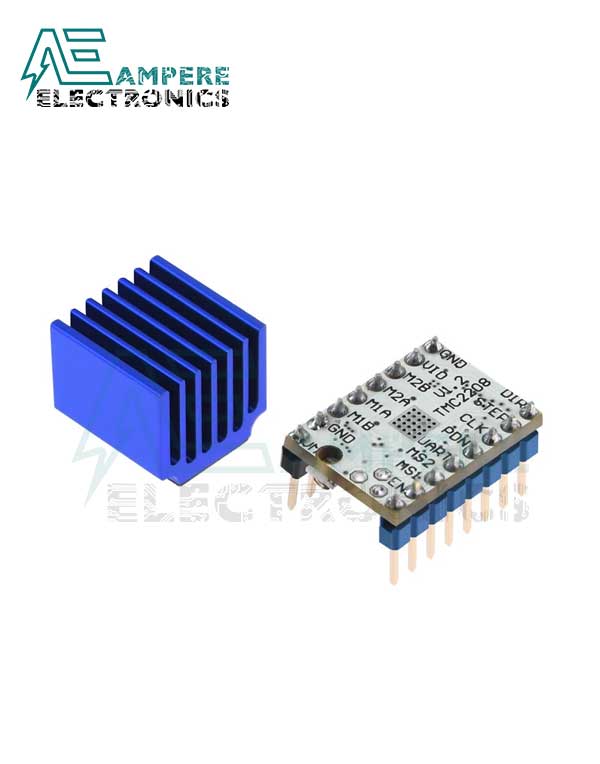

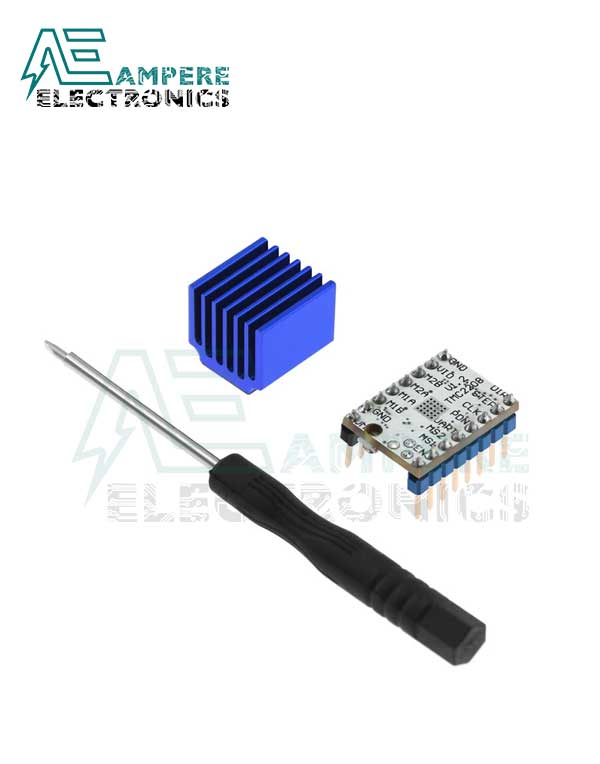

Package Includes:

• 1x TMC2208 Stepper Driver Module

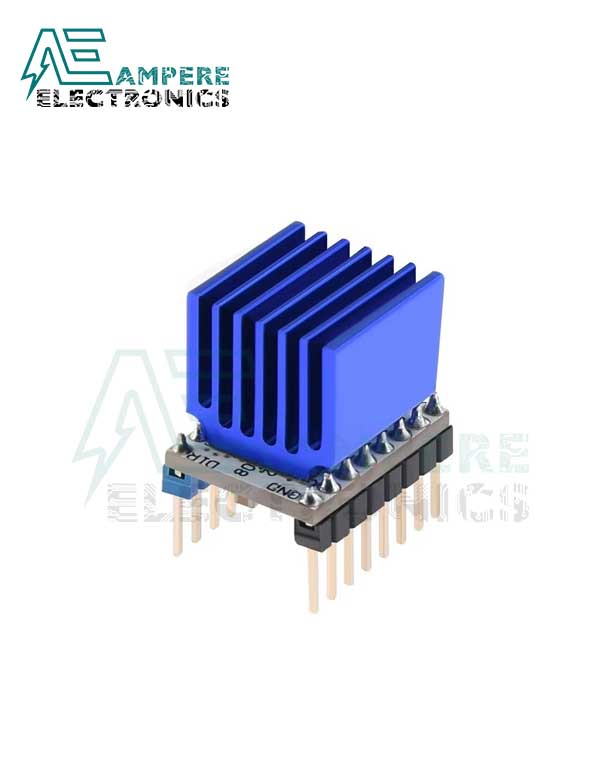

• 1x Heatsink
• 1x Screwdriver

Datasheet:

• TMC2208 Datasheet
