SKU: 24304

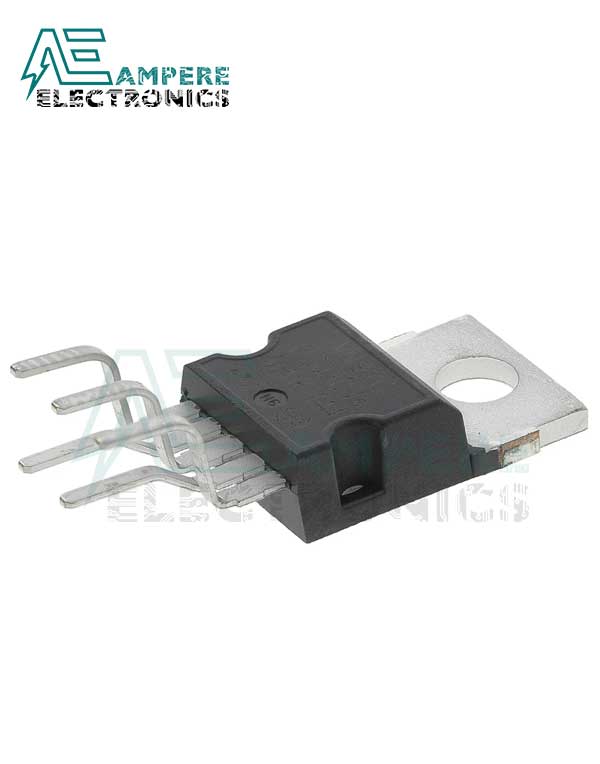

TDA2030 Audio Amplifier IC
5,00 EGP
TDA2030 Audio Amplifier IC
- Wide-range supply voltage, up to 36 V
- Single or split power supply
- Short-circuit protection to ground
- Thermal shutdown
In stock
Description
TDA2030 Audio Amplifier IC
The TDA2030 is a monolithic integrated circuit in the Pentawatt? package, intended for use as a low frequency class-AB amplifier. Typically it provides 14 W output power (d = 0.5%) at 14 V/4 ?. At ?14 V or 28 V, the guaranteed output power is 12 W on a 4 ? load and 8 W on an 8 ? (DIN45500).
- Wide-range supply voltage, up to 36 V
- Single or split power supply
- Short-circuit protection to ground
- Thermal shutdown
Specifications:
| Attribute | Value |
| Category | Integrated Circuits (ICs) |
| Mfr | STMicroelectronics |
| Series | – |
| Package | Tube |
| Product Status | Obsolete |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 18W x 1 @ 4Ohm |
| Voltage – Supply | 12V ~ 36V, ?6V ~ 18V |
| Features | Short-Circuit and Thermal Protection |
| Mounting Type | Through Hole |
| Operating Temperature | -40?C ~ 150?C (TJ) |
| Supplier Device Package | 5-PENTAWATT |
| Package / Case | Pentawatt-5 (Vertical, Bent and Staggered Leads) |
| Base Product Number | TDA2030 |
Package Includes:
- 1x TDA2030 Amplifier IC
