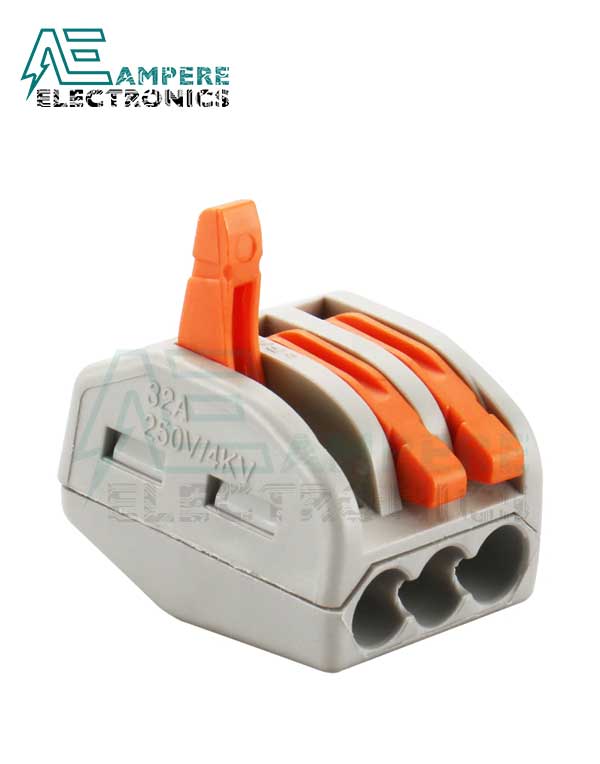

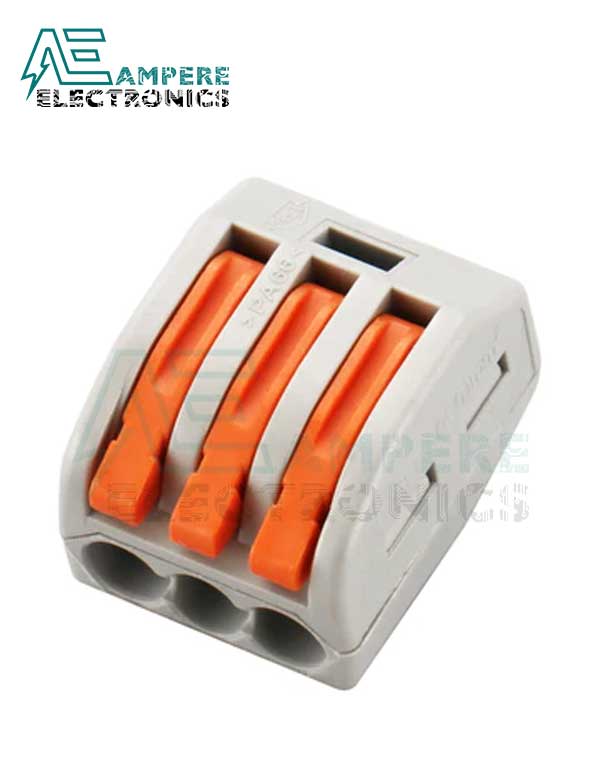

Spring Lever Connector 3-Way

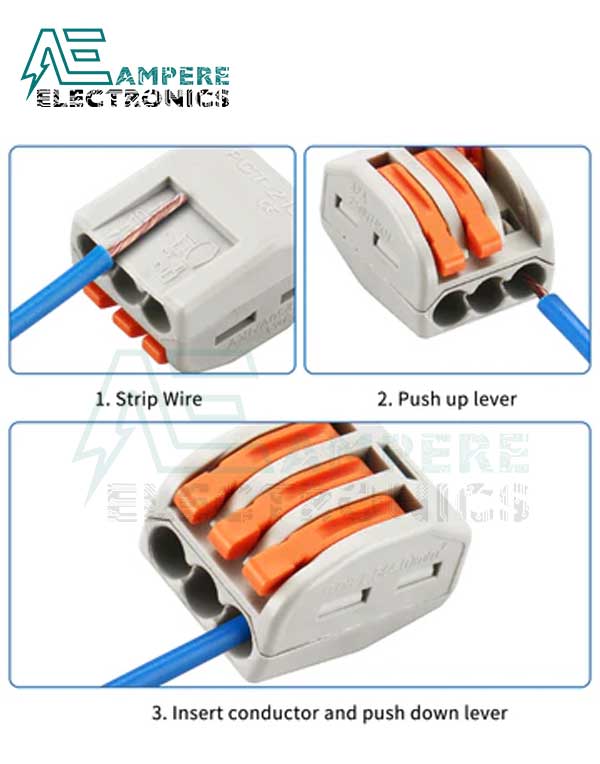

Quick connection terminal is suitable for solid and stranded wire, There is a line on each connectors that you can used as a guide in cutting the length of the wire. Once the wire is in place it’s very sturdy and fits snugly.

• Single multi-strand rigid conductor:0.08-4mm²
• Stranded flexible conductor:0.08-4mm²
• Rated voltage:250V
• Rated current:32A
• Strip length: 9 – 10 mm / 0.37 in
• Maximum operating temperature: 105℃
