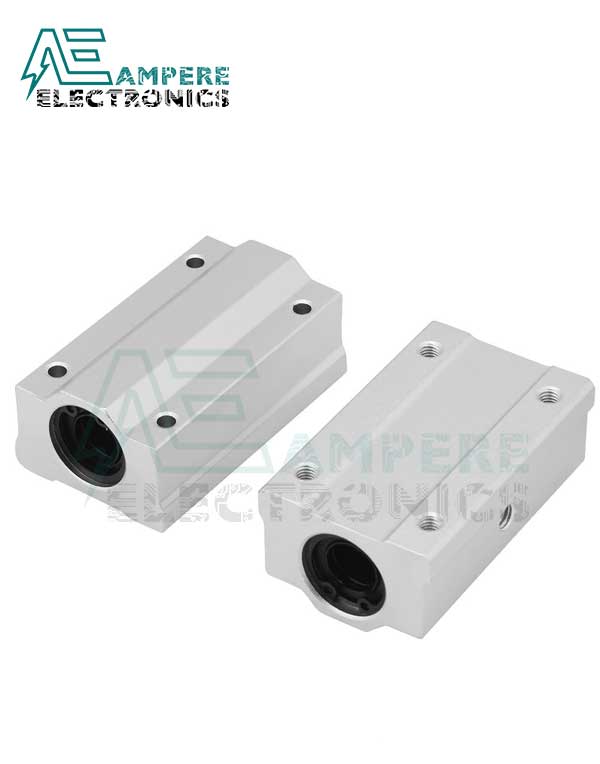

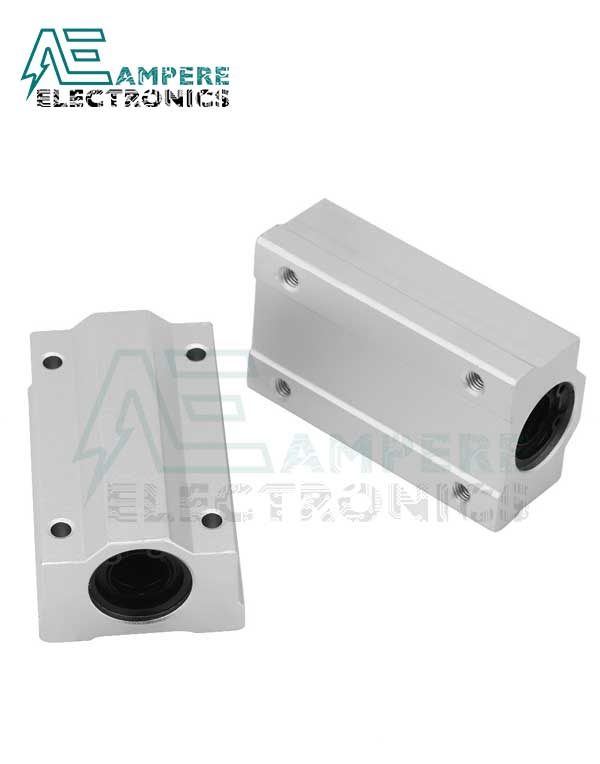

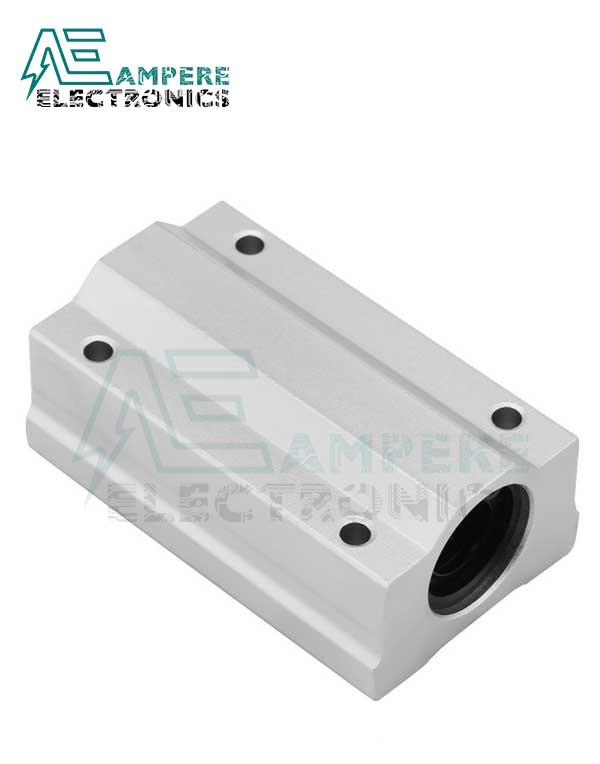

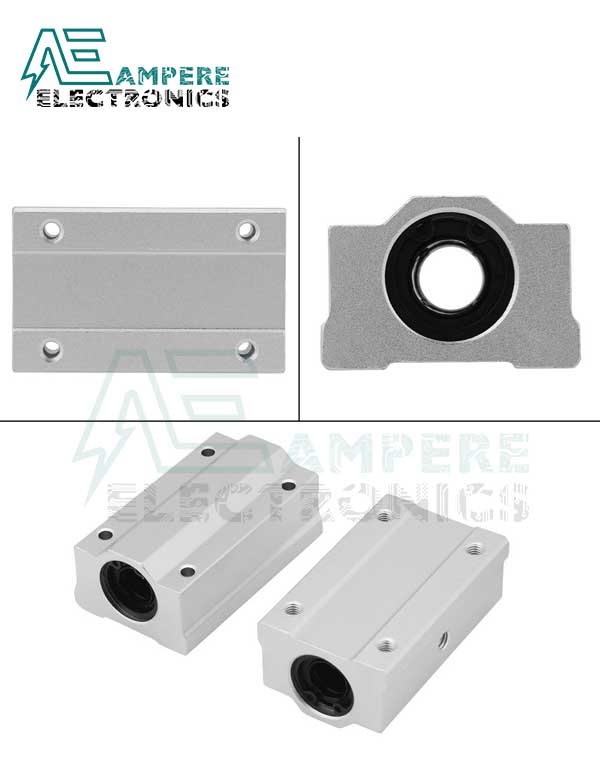

SCS12LUU Linear Ball Bearings Block, 12mm Inner Diameter

Description

SCS12LUU Linear Ball Bearings Block, 12mm Inner Diameter

• Aluminum alloy linear ball bearing slide pillow block unit.
• Chrome steel LM12UU linear bearing with lightweight aluminum housing.
• Anodized surface, high hardness, corrosion resistance, not rust, low noise.
• Accurate machining size for the aluminum block, convenient installation, and replacement.
• There are sealing rings on both ends of the linear bearing, which has a good dustproof effect and prolongs service life.

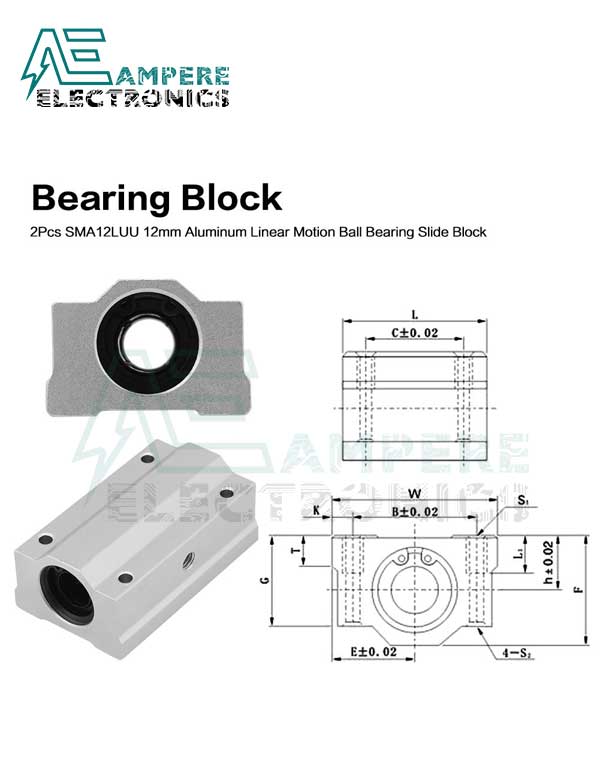

Specifications:

• Bearing Model: SCS12LUU
• Inner Diameter (d): 12 mm
• Block Width (W): 42 mm
• Block Length (L): 70 mm
• Block Height (F): 28 mm
• Mounting Hole Pitch (B): 30.5 mm
• Mounting Hole Pitch (C): 50 mm
• Mounting Hole (S1): M5

Package includes:

• 1x SCS12LUU

3D Model:

• SCS12LUU 3D Model
