SKU: 26058

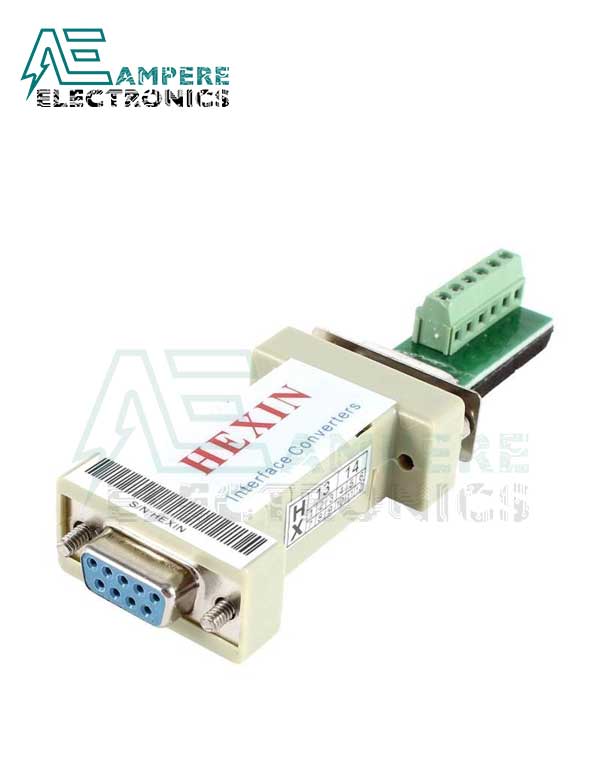

RS-232 to RS-485/RS-422 Converter | HXSP-09F69
275,00 EGP
RS-232 to RS-485/RS-422 Converter | HXSP-09F69
- Bi-directional connector convert between RS-232 and RS-485 or RS-422
- Port-Powered, no need extra power supply
- Support 0~115200bps baud rate
- Low power consumption
Out of stock
Description
RS-232 to RS-485/RS-422 Converter | HXSP-09F69
- Bi-directional connector convert between RS-232 and RS-485 or RS-422
- Port-Powered, no need extra power supply
- Support 0~115200bps baud rate
- Low power consumption
Specifications:
Standard | Compliant with EIA RS-232, RS-485, RS-422 standards |
Interface | RS-232: DB9 interface RS-485: Industrial terminal block RS-422: Industrial terminal block |
Baud Rate | 0~115200bps |
Serial port | 1 port RS-232 DB9, 1 port RS-485 or RS-422(DB9 with block) |
RS-232 signal | TXD, RXD, GND |
RS-485 signal | 485+, 485-, GND |
RS-422 signal | T+, T-, R+,R-, GND |
Distance | RS-232: 5m RS-485 RS-422: 1200m |
Working mothod | asynchronous, point to point or multi-point, 2 wire half-duplex, 4 wire full-duplex |
Transmission medium | Ordinary Line, twisted pair cable or Shielded Wire |
Communication protocol | Transparent |
Direction control | automatic data flow control technology which can detect and control data transmission direction automatically |
Power | No power supply, Obtain power from TXD, RTS, DTR signals of RS-232 serial port |
Environment | Operating temperature: -20~70? Storage temperature: -25~85? Relative humidity: 5%?95%(no condensation) |
Shell | plastic |
Certification | CE, FCC, RoHS |
Package Includes:
- 1x RS-232 to RS-485/RS-422 Converter
