SKU: 23272

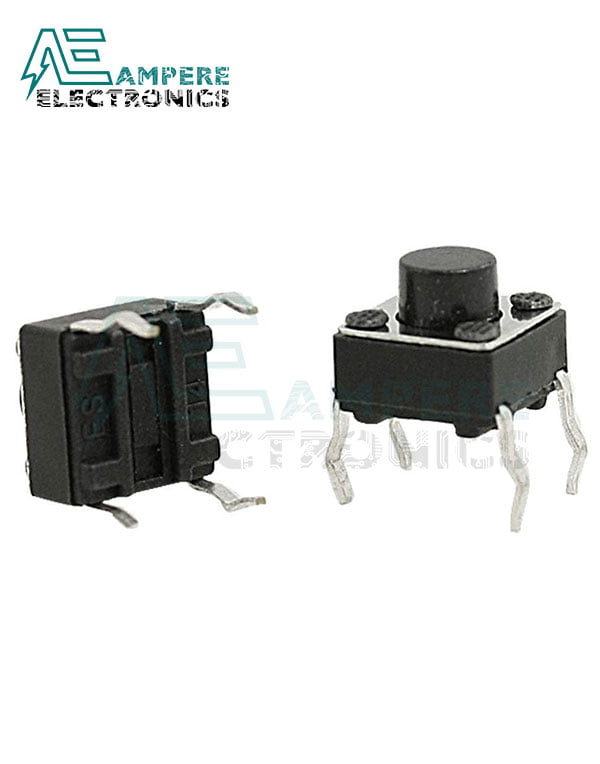

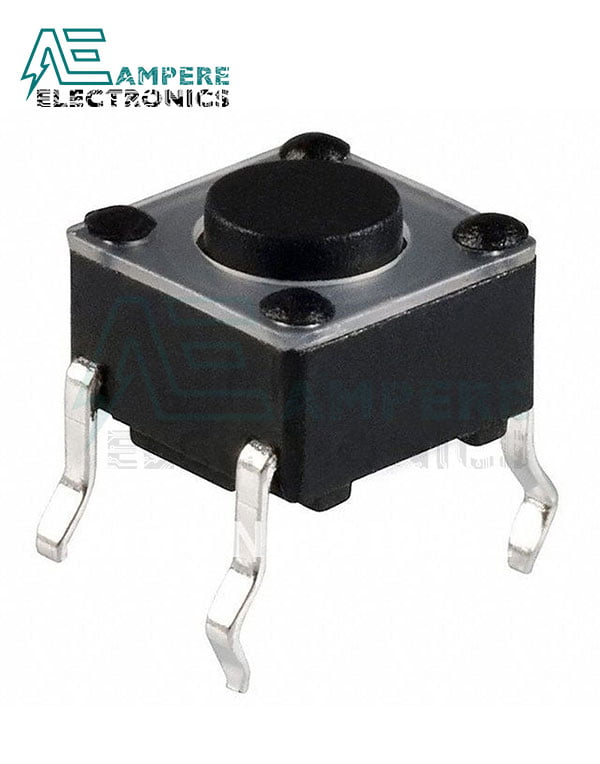

Press 4-Pin 6x6x4mm
1,00 EGP
Press 4-Pin 6x6x4mm
- Up to 1 Million operations
- Actuation force of 1.6N to 2.5N
- Small PCB footprint
- Low profile
- 0.25 Actuation travel
In stock
Description
Press 4-Pin 6x6x4mm
TE Connectivity brings you a range of professional and brilliant tactile switches. The FSM series of tactile switches are housed in a strong ‘Nylon 66’ material and feature a moving contact of copper alloy-silver. These tactile switches are great use for mounting on your PCB to close a circuit. The small tactile switches come in THT & SMT mounting styles and excellent quality.
Applications:
- Keyboards
- Keypads
- Telephones
- Radios
- General consumer electronics
- Closing the circuit on a PCV
Specifications:
| Attribute | Value |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 1.4mm |
| Actuator Color | Black |
| Actuator Type | Button |
| Length | 6mm |
| Width | 6mm |
| Dimensions | 6x6x4mm |
| Contact Current Rating | 50 mA @ 24 V dc |
| Voltage Rating | 24V dc |
| Operating Force | 2.55 N |
| Height | 7.8mm |
| Contact Material | Silver Over Nickel Plated Copper Alloy (Stationary)’ Silver Plated Copper Alloy (Movable) |
| Operating Temperature Range | -40 °C → +105°C |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 100000Operations |
| Maximum Operating Temperature | +105°C |
Package Includes:
- 1x Press 6x6mm
Documents:
