PicKit 3.5 Programmer/Debugger – Clone
550,00 EGP

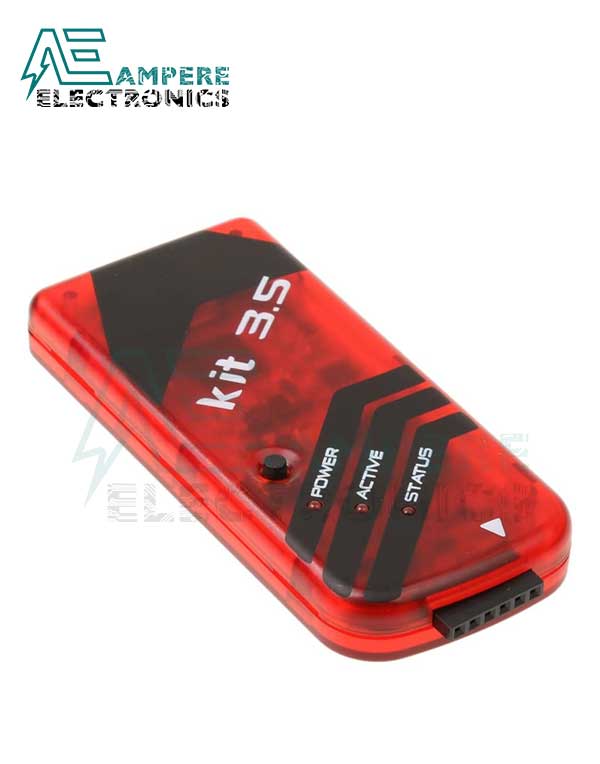

PicKit 3.5 Programmer/Debugger
- Used to?program and debug PIC microcontrollers

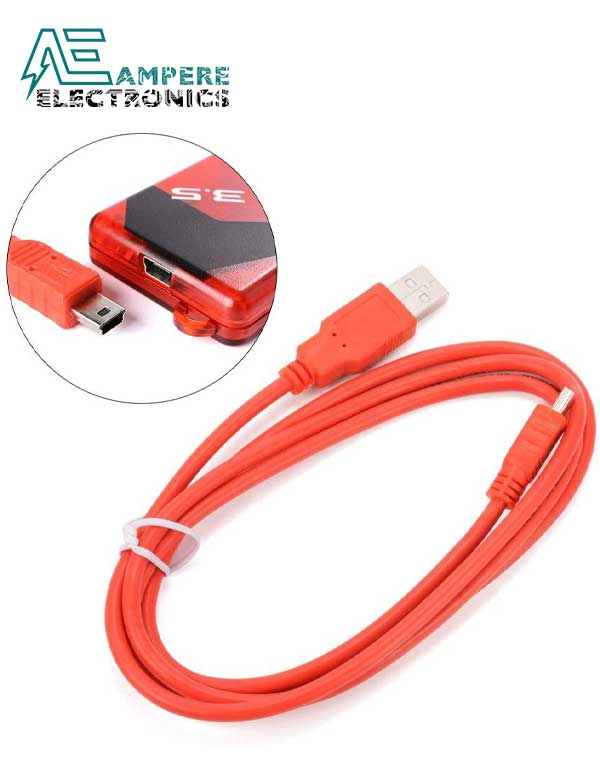

- Easy to interface with PC via USB cable
- Supports windows standard drivers
- Has programmer to go feature where you can program without PC
- Built-in Over Voltage and Short circuit Monitor
- On-board diagnostic LED?s
- Supports all latest version of PIC and IDE?s
Only 2 left in stock
Description
Pickit 3.5 Programmer/Debugger
can be used with MPLAX IDE running on Windows Platform to program or debug PIC Microcontrollers that support ICSP – In Circuit Serial Programming. Meaning the PIC can be programmed with only 2-wires (2-pins) PGD and PGC excluding the power pins.
Applications
- Program PIC Microcontrollers
- Debug PIC Microcontrollers
- Code dumping in production process
- Flashing or Firmware update.
Features
- Used to?program and debug PIC microcontrollers
- Easy to interface with PC via USB cable
- Supports windows standard drivers
- Has programmer to go feature where you can program without PC
- Built-in Over Voltage and Short circuit Monitor
- On-board diagnostic LED?s
- Supports all latest version of PIC and IDE?s
Pinout
Pin Number | Pin Name | Description |
1 | MCLR/VPP | Connected to Master clear external reset pin of PIC to reset the MCU before programming |
2 | VDD (Target) | Target voltage of PIC, 5V or 3.3V |
3 | Ground | Ground pin of the system |
4 | PGD/ICSPDAT | Program Data(PDG) is connected to the In Circuit Serial Programming (ICSP) data pin |
5 | PGC/ICSPCLK | Program Clock (PGC) is connected to In Circuit Serial Programming (ICSP) clock pin |
6 | No connection | This pin is reserved for future use |
Package Includes:
- 1x Pickit 3.5 Programmer
documents:
