SKU: 25843

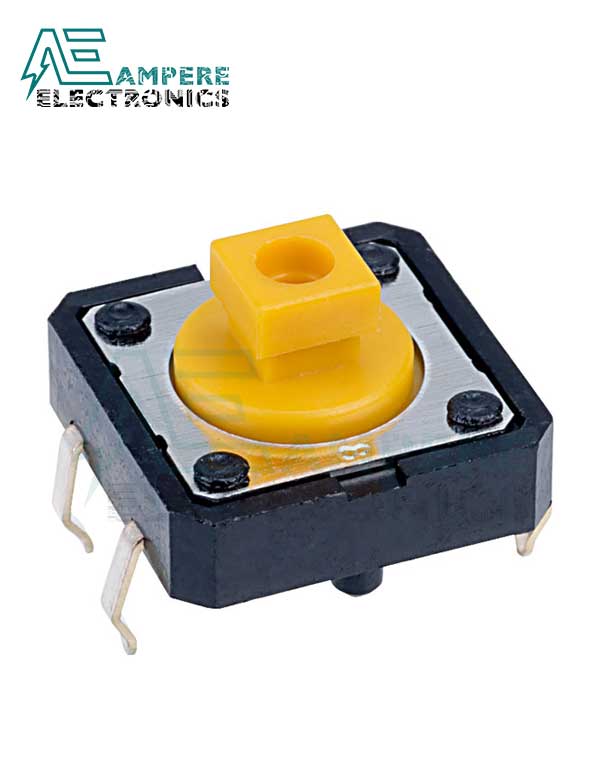

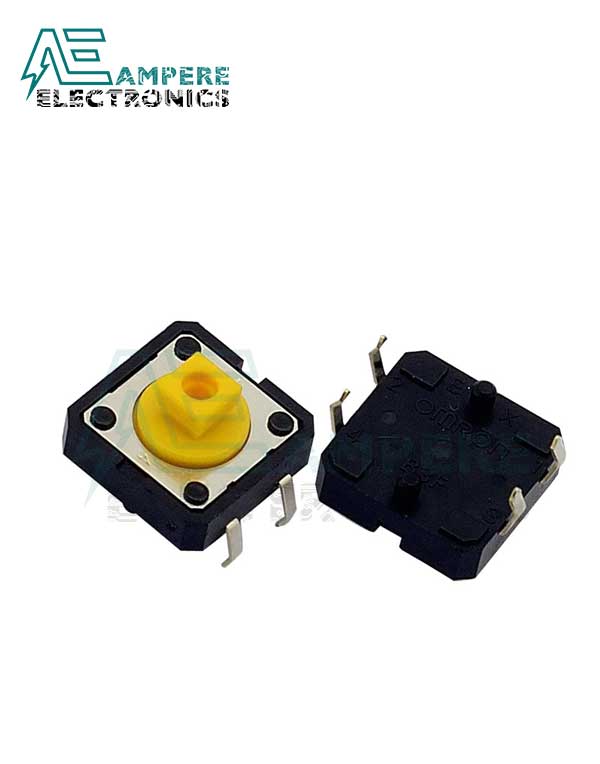

Omron Press 4-Pin (12×12)
2,50 EGP
Omron Press 4-Pin (12×12), B3F Tactile Switch
Stainless Steel cover
Stainless Steel contacts with silver cladding
Wave soldering 260?C 10 seconds. Max.
Operating temperature range -40?C to +85?C
In stock
Description
Omron Press 4-Pin (12×12), B3F Tactile Switch
Stainless Steel cover
Stainless Steel contacts with silver cladding
Wave soldering 260?C 10 seconds. Max.
Operating temperature range -40?C to +85?C
Specifications:
| Attribute | Value |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder, Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 3.8mm |
| Actuator Colour | Pink |
| Actuator Type | Button |
| Length | 12.5mm |
| Width | 12mm |
| Dimensions | 12 x 12.5mm |
| Mounting Type | Through Hole |
| Contact Current Rating | 50 mA @ 12 V dc |
| Height | 7.3mm |
| Voltage Rating | 12V dc |
| Operating Force | 360 g |
| Contact Material | Silver Plated Stainless Steel |
| Maximum Operating Temperature | +85?C |
| Operating Temperature Range | -40 ? +85?C |
| Minimum Operating Temperature | -40?C |
| Mechanical Life | 200000Cycles |
Product Datasheet:
