SKU: 24318

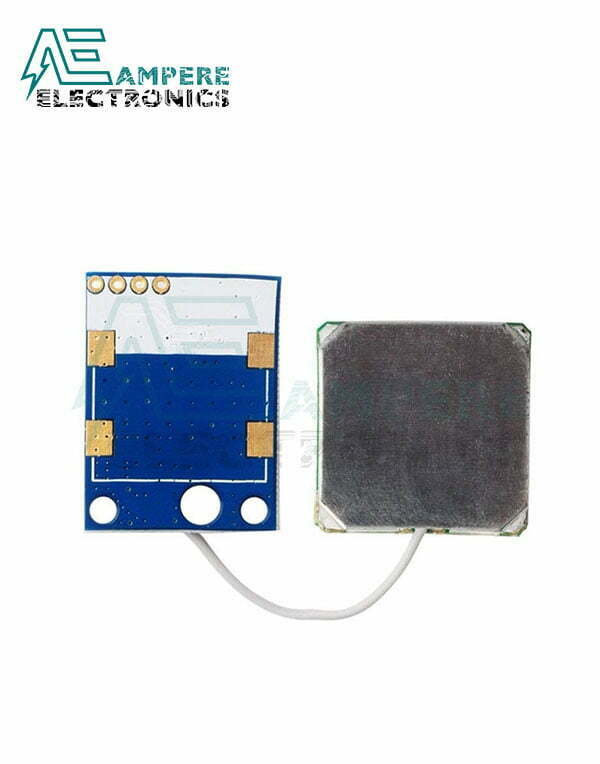

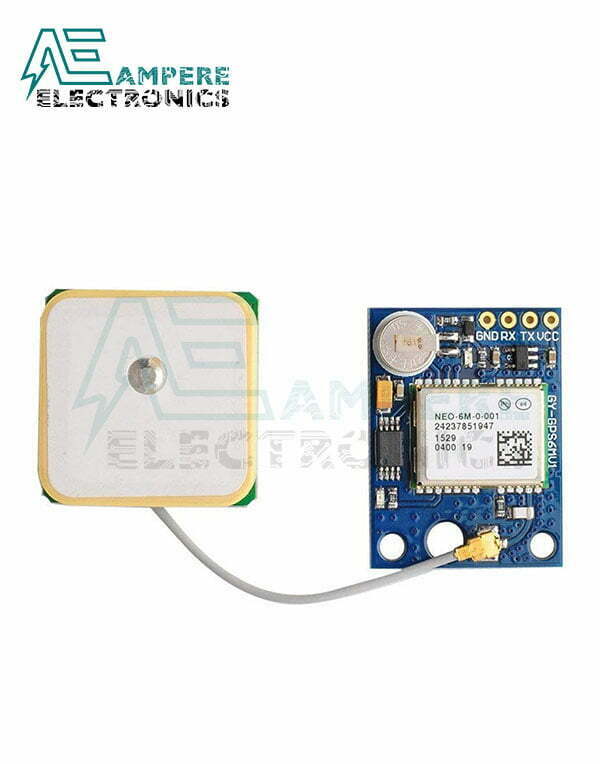

NEO-6M GPS Module With Antenna

575,00 EGP

NEO-6M GPS Module With Antenna

  • GPS application
  • Smart phone and tablets
  • Navigation systems
  • Drones
  • Hobby projects

Out of stock

SKU: 24318 Category:

Description

NEO-6M GPS Module With Antenna

Characteristics:

  • Standalone GPS receiver
  • Anti-jamming technology
  • UART Interface at the output pins (Can use SPI ,I2C and USB by soldering pins to the chip core)
  • Under 1 second time-to-first-fix for hot and aided starts
  • Receiver type: 50 Channels – GPS L1 frequency? – SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • Time-To-First-fix:? For Cold Start 32s, For Warm Start 23s, For Hot Start <1s
  • Maximum navigation update rate: 5Hz
  • Default baud rate: 9600bps
  • EEPROM with battery backup
  • Sensitivity:? -160dBm
  • Supply voltage: 3.6V
  • Maximum DC current at any output: 10mA
  • Operation limits: Gravity-4g, Altitude-50000m, Velocity-500m/s
  • Operating temperature range: -40?C TO 85?C

Applications:

  • GPS application
  • Smart phone and tablets
  • Navigation systems
  • Drones
  • Hobby projects

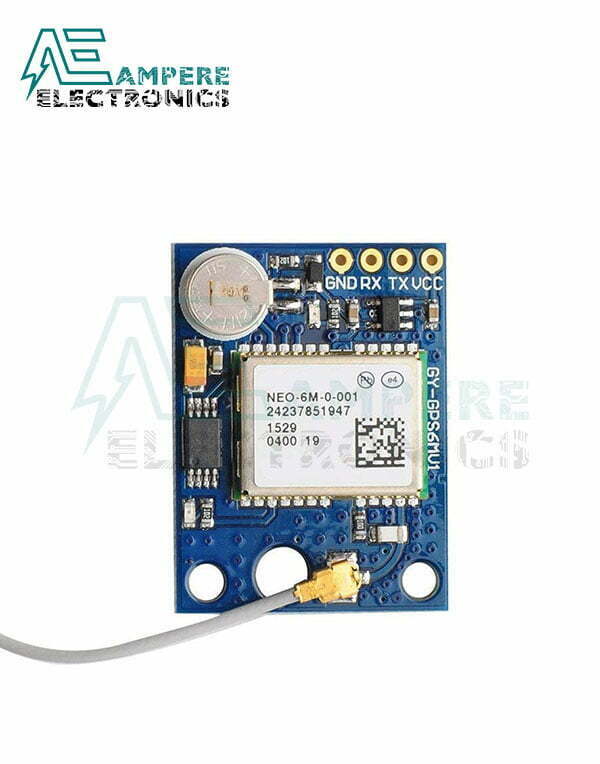

Pin Configuration:

The module has four output pins and we will describe the function each pin of them below. The powering of module and communication interface is done through these four pins.

Pin NameDescription
VCCPositive power pin
RXUART receive pin
TXUART transmit pin
GNDGround



Package Included:

  • 1x GPS Module
  • 1x Antenna

Datasheet:
