Motor Speed Encoder Sensor Module

Description

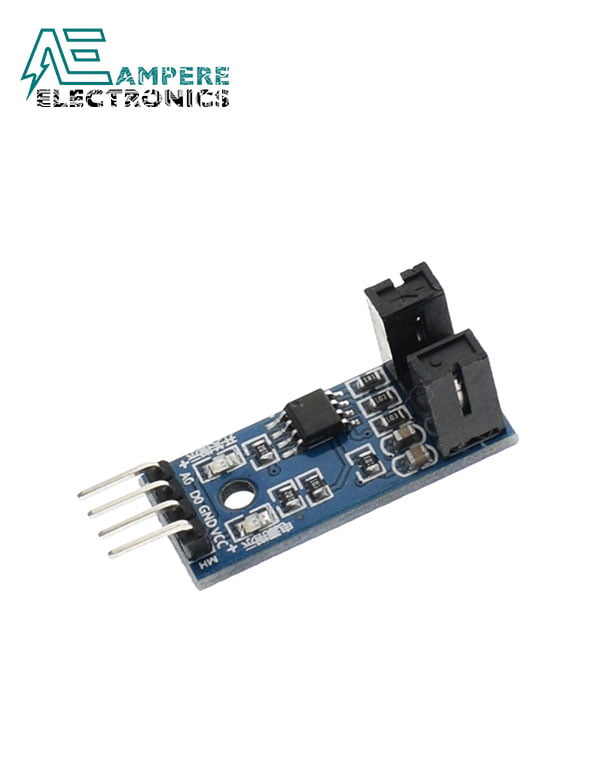

Motor Speed Encoder Sensor Module

Widely used in motor speed detection, pulse count, the position limit, etc.

Feature:

• Using imported optical coupling sensor, width 5mm.
• It have the output state light, if output high level, the lights are off. if output low level ,it on.
• If it covered, it will output high level; otherwise it output low level.
• Good signal and waveform, with strong driving ability for more than 15mA.
• The working voltage of 3.3V to 5V.
• Output: digital switch output (0 and 1).
• Equipped with a fixed bolt hole, easily install.
• Small board PCB size: 3.2 cm x 1.4 cm.
• Use the LM393 wide voltage comparer

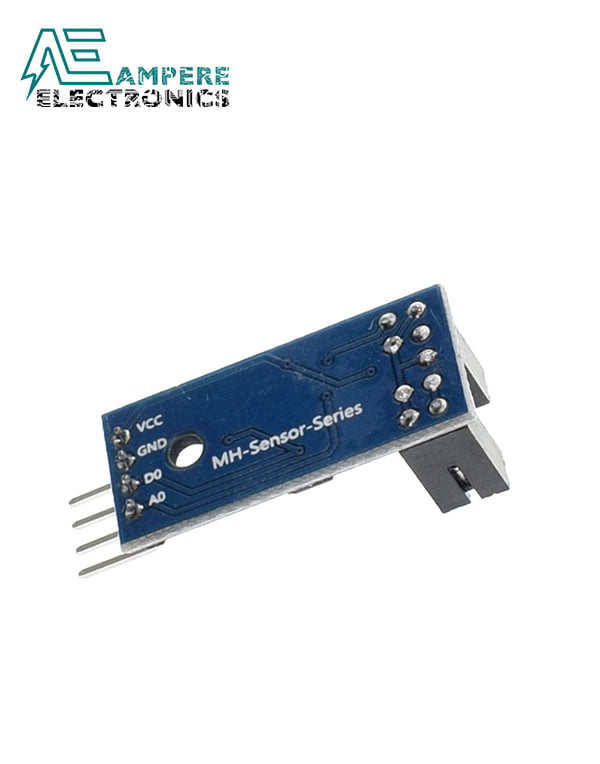

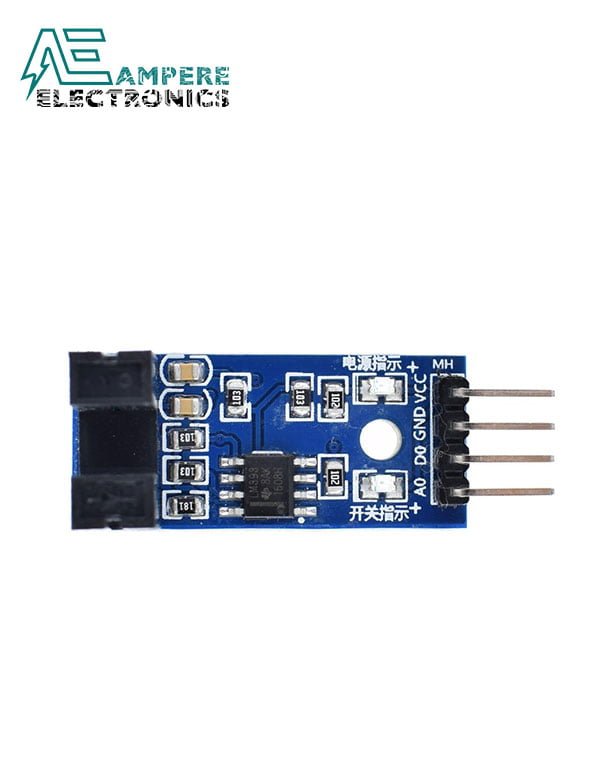

Pin Configurations:

• VCC Connect the positive 3.3 5 V power supply
• GND Connect power negative
• DO TTL switch signal output
• AO This module does not work

Package included:

• 1 x Speed Measuring Sensor Module

Datasheet:

• IR Speed Module Datasheet
