SKU: 22632

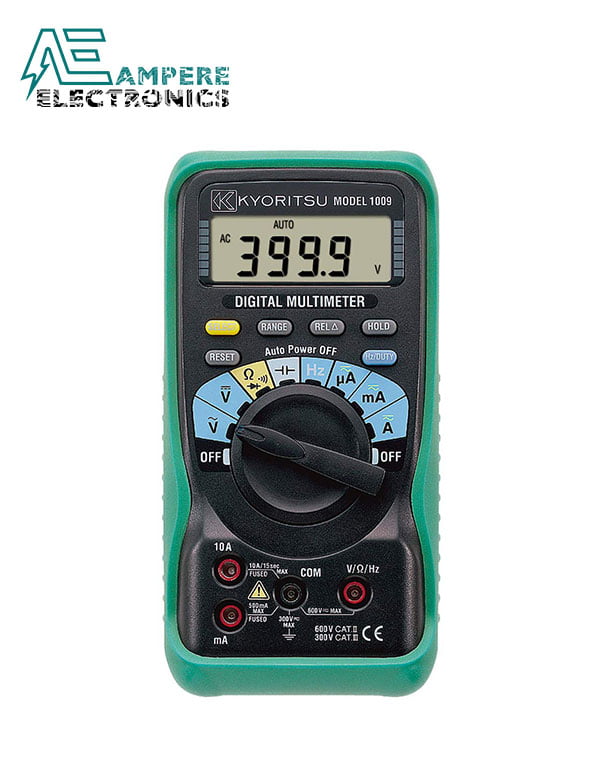

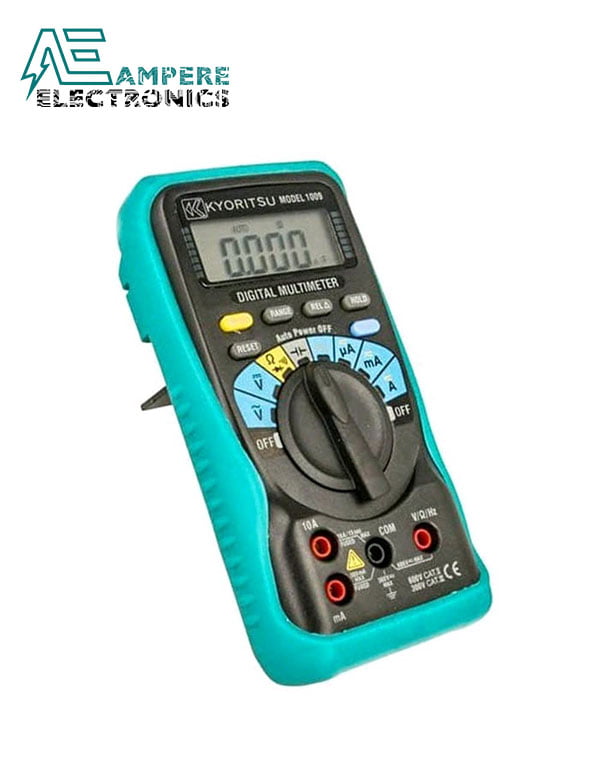

MODEL 1009 Digital Multimeter | KYORITSU
1.450,00 EGP
MODEL 1009 Digital Multimeter | KYORITSU
- Display : 4000 counts.
- Auto range and manual range selector provided.
(with range hold feature) - Resistance range provides audible continuity test.
- Automatically turns power off in about 30 minutes to conserve battery life.
- Direct current measurement up to 10A AC and DC.
- With Holster.
In stock
Description
MODEL 1009 Digital Multimeter | KYORITSU
- Display : 4000 counts.
- Auto range and manual range selector provided.
(with range hold feature) - Resistance range provides audible continuity test.
- Automatically turns power off in about 30 minutes to conserve battery life.
- Direct current measurement up to 10A AC and DC.
- With Holster.
Specifications:
| DC V | 400mV/4/40/400/600V (Input Impedance 10M?) ?0.6%rdg?4dgt (400mV/4/40/400V) ?1.0%rdg?4dgt (600V) |
|---|---|
| AC V | 400mV/4/40/400/600V (Input Impedance 10M?) ?1.6%rdg?4dgt (20 – 400mV) ?1.3%rdg?4dgt (4/40V) ?1.6%rdg?4dgt (400/600V) |
| DC A | 400/4000?A/40/400mA/4/10A ?2.0%rdg?4dgt (400/4000?A)?1.0%rdg?4dgt (40/400mA) ?1.6%rdg?4dgt (4/10A) |
| AC A | 400/4000?A/40/400mA/4/10A ?2.6%rdg?4dgt (400/4000?A) ?2.0%rdg?4dgt (40/400mA/4/10A) |
| ? | 400?/4/40/400k?/4/40M? ?1.0%rdg?4dgt (400?/4/40/400k?/4M?) ?2.0%rdg?4dgt (40M?) |
| Continuity buzzer | 400? (Buzzer sounds below 100?) |
| Diode test | 1.5V Release Voltage:Approx. 0.4mA Test Current |
| Capacitance | 40/400nF/4/40/100?F |
| Frequency | 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz |
| DUTY | 0.1 – 99.9% (Pulse width/Pulse period) ?2.5%?5dgt |
| Applicable standards | IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61326 |
| Power source | R6 (1.5V) ? 2 |
| Dimensions | 161(L) ? 82(W) ? 50(D)mm |
| Weight | Approx. 280g |
| Included Accessories | 7066A (Test leads) 8919 (Ceramic fuse [10A/600V])? 1 8923 (Fuse [0.5A/600V])? 1 R6? 2 Instruction Manual |
| Optional Accessories | 7234 (Crocodile clip test lead) 9095 (Carrying case) |
Package Includes:
- 1x MODEL 1009 Digital Multimeter
User Manual:
