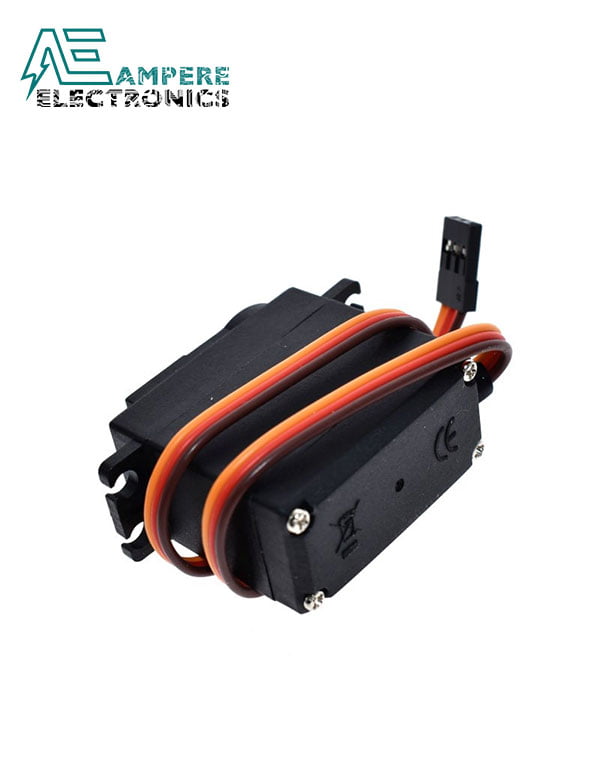

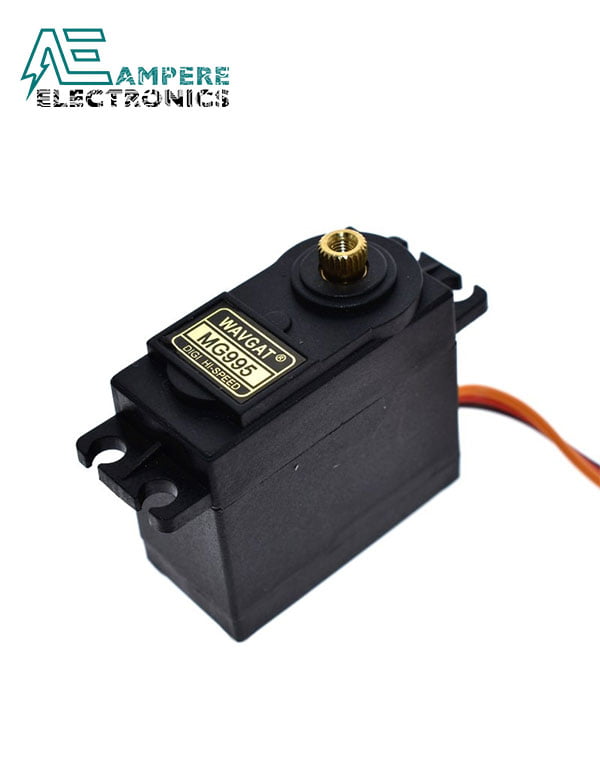

MG995 Servo Motor Metal Gear (10kg/cm)

Description

MG995 Servo Motor Metal Gear (10kgf/cm)

The unit comes complete with 30cm wire and 3 pin ‘S’ type female header connector that fits
most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg,
Spektrum and Hitec.

Specifications:

• Metal geared servo for more life
• Stable and shock proof double ball bearing design
• High speed rotation for quick response
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power
• Weight: 55 g
• Dimension: 40.7?19.7?42.9mm
• Operating voltage range: 4.8 V to 7.2 V
• Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
• Operating speed: 0.2 s/60? (4.8 V), 0.16 s/60? (6 V)
• Rotational degree: 180?
• Dead band width: 5 ?s
• Operating temperature range: 0?C to +55?C
• Current draw at idle: 10mA
• No load operating current draw: 170mA
• Current at maximum load: 1200mA

Applications

• Drones and RC planes
• Security camera
• Robotics
• Solar tracking and positioning
• Door lock and safe locks
• Hobby projects

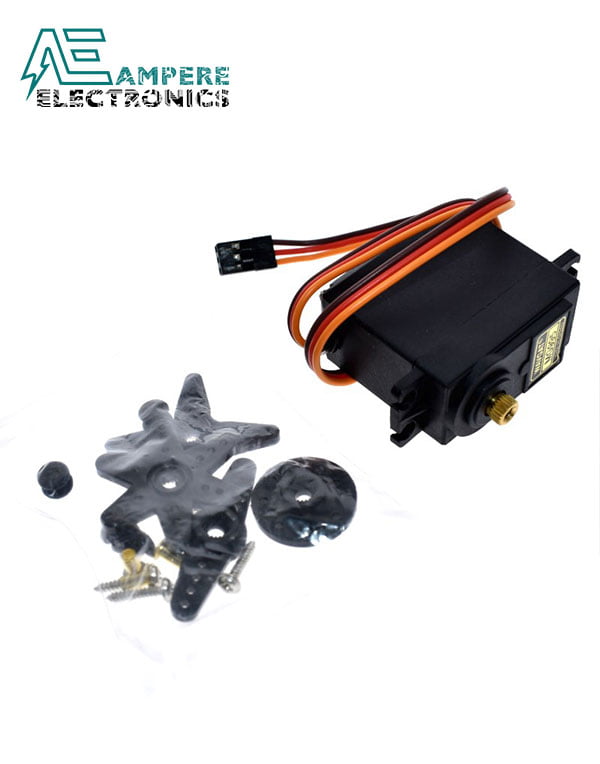

Package Includes:

• 1x MG995 Servo Motor

Datasheet:

• MG995 Datasheet
