MFRC522 RFID Module Read/Write (13.56MHz)
130,00 EGP
MFRC522 RFID Module Read/Write (13.56MHz)
- 13.56MHz RFID module
- Operating voltage: 2.5V to 3.3V
- Communication : SPI, I2C protocol, UART
- Maximum Data Rate: 10Mbps
- Read Range: 5cm
- Current Consumption: 13-26mA
- Power down mode consumption: 10uA (min)
In stock
Description
MFRC522 RFID Module Read/Write (13.56MHz)

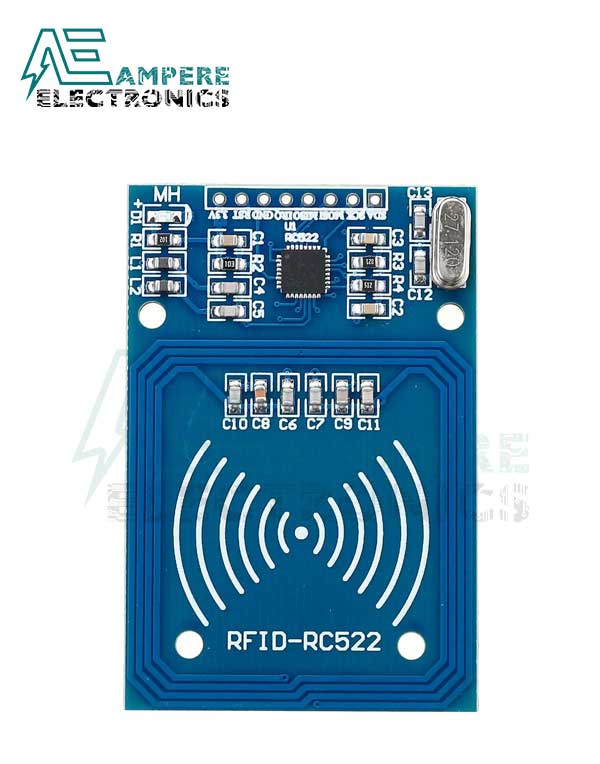

The MFRC522 RFID Module is a 13.56MHz RFID module that is based on the MFRC522 controller from NXP semiconductors. The module can supports I2C, SPI and UART and normally is shipped with a RFID card and key fob. It is commonly used in attendance systems and other person/object identification applications.
Features:
- 13.56MHz RFID module
- Operating voltage: 2.5V to 3.3V
- Communication : SPI, I2C protocol, UART
- Maximum Data Rate: 10Mbps
- Read Range: 5cm
- Current Consumption: 13-26mA
- Power down mode consumption: 10uA (min)
Applications:
- Automatic billing systems
- Attendance systems
- Verification/Identification system
- Access control systems
Pin Configuration:
| Pin Number | Pin Name | Description |
| 1 | Vcc | Used to Power the module, typically 3.3V is used |
| 2 | RST | Reset pin ? used to reset or power down the module |
| 3 | Ground | Connected to Ground of system |
| 4 | IRQ | Interrupt pin ? used to wake up the module when a device comes into range |
| 5 | MISO/SCL/Tx | MISO pin when used for SPI communication, acts as SCL for I2c and Tx for UART. |
| 6 | MOSI | Master out slave in pin for SPI communication |
| 7 | SCK | Serial Clock pin ? used to provide clock source |
| 8 | SS/SDA/Rx | Acts as Serial input (SS) for SPI communication, SDA for IIC and Rx during UART |
Specification:
- Product Name:? IC Card Sensor Module
- Material: Plastic
- Color: Blue & White

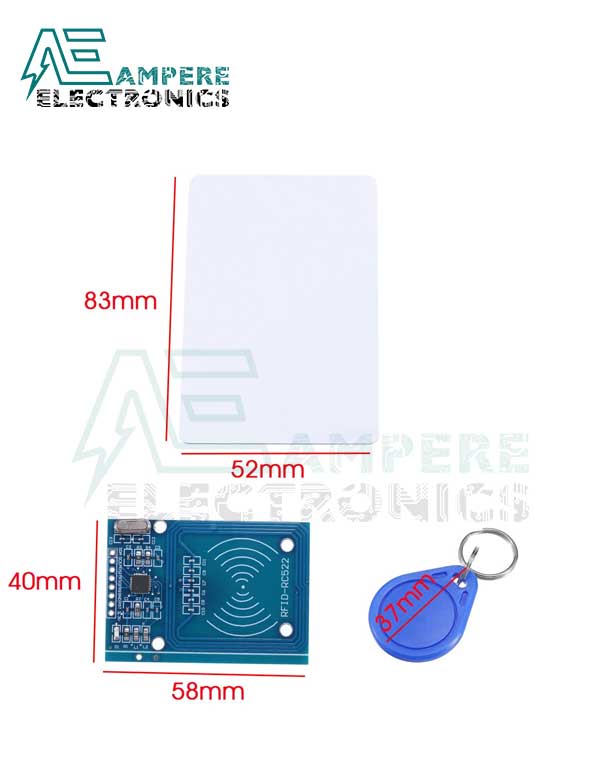

- Module Size: 58mm x 40mm
- Card Size: 83mm x 52mm
- Key Length: 37mm
- Working Current: 13-26ma/Dc 3.3v
- Idle Current: 10-13ma / Dc 3.3v
- Sleep Current: <80ua
- Peak Current: <30ma
- Working Frequency: 13.56mhz
- Environmental Working Temperature: -20-80 Degrees Celsius
- Environmental Storage Temperature: -40-85 Degrees Celsius
- Relative Humidity: 5%-95% Relative Humidity
- Data Transmission Rate: Up To 10mbit/s
Package includes:

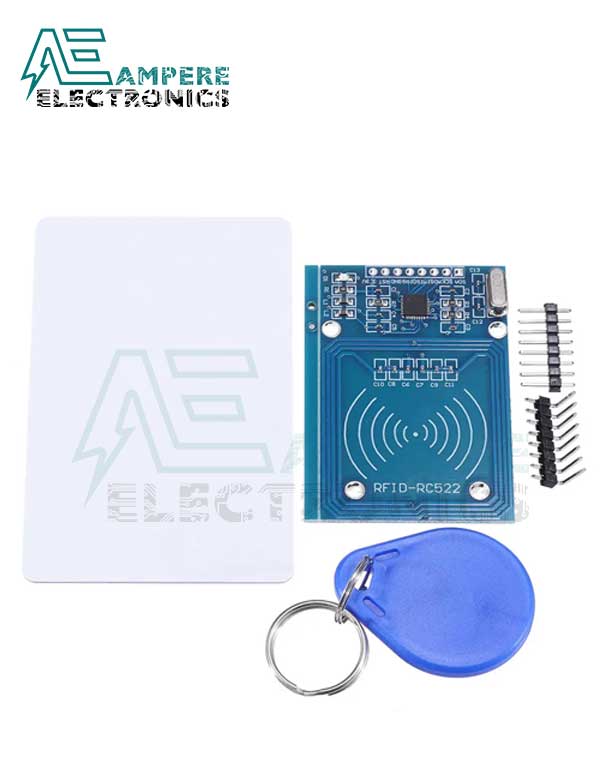

- 1 x MFRC522 RFID Module

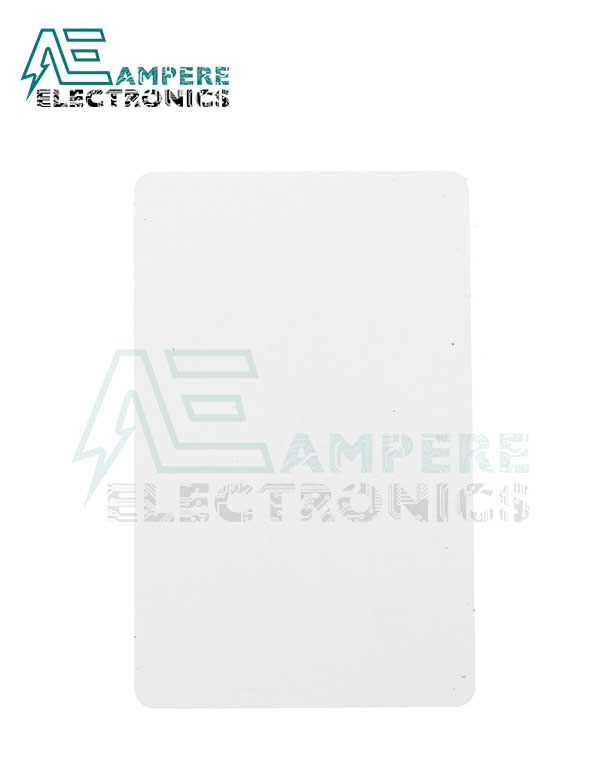

- 1 x the standard S50 blank card

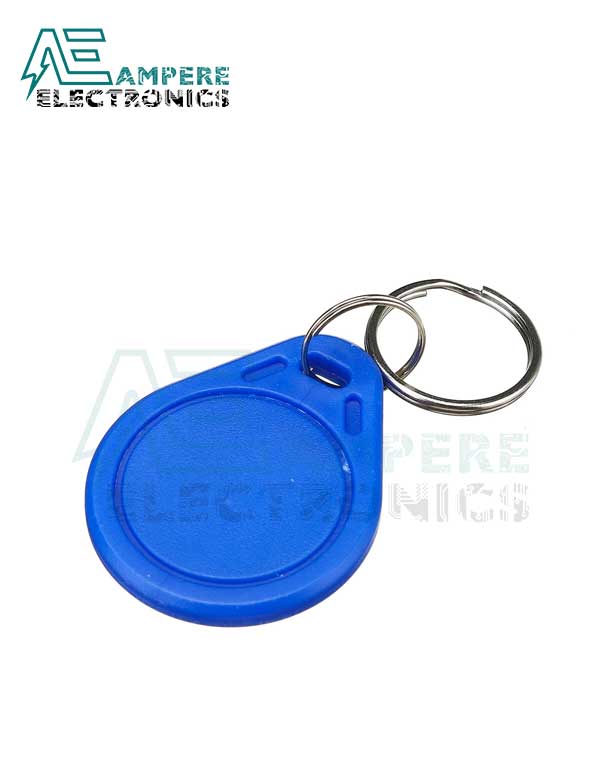

- 1 x S50 special-shaped card a (as shown by the key ring shape)
- 2 x straight, curved rows of pin of the article
