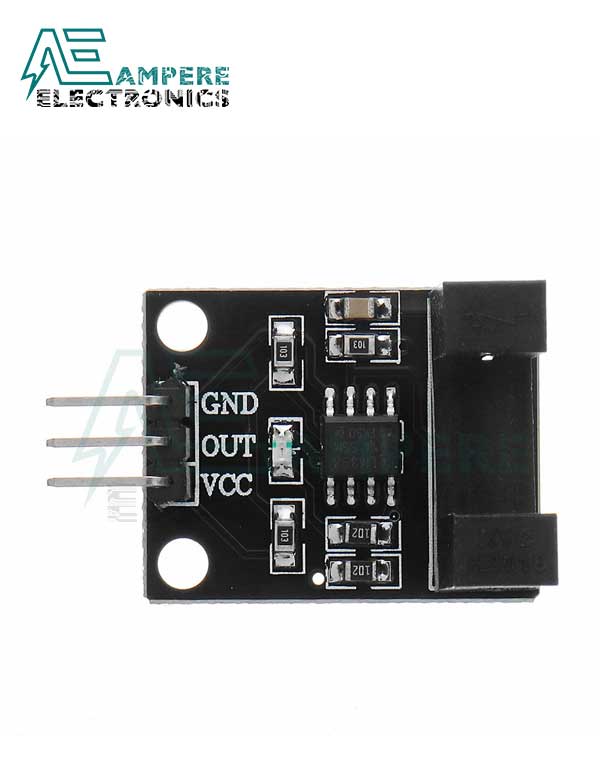

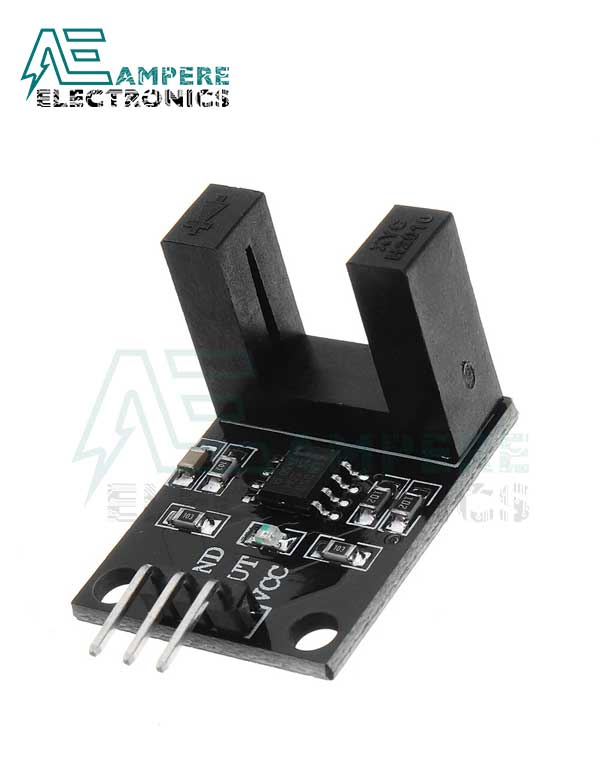

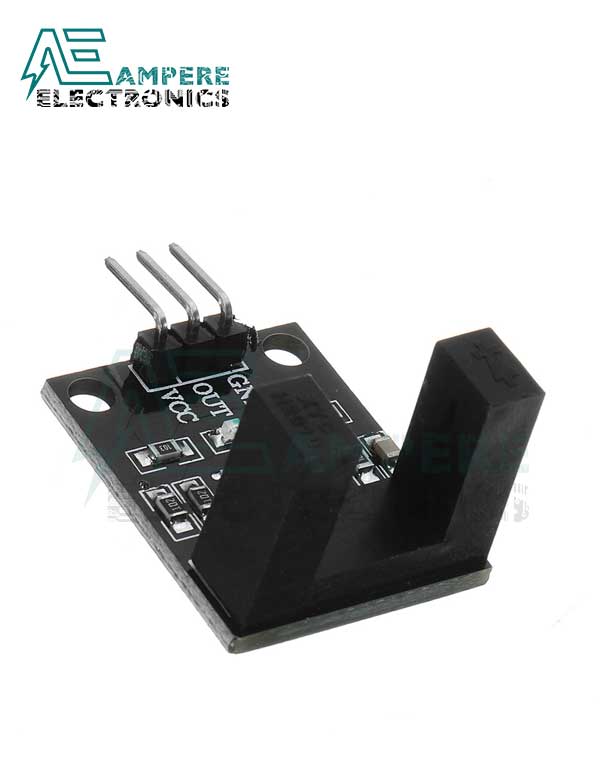

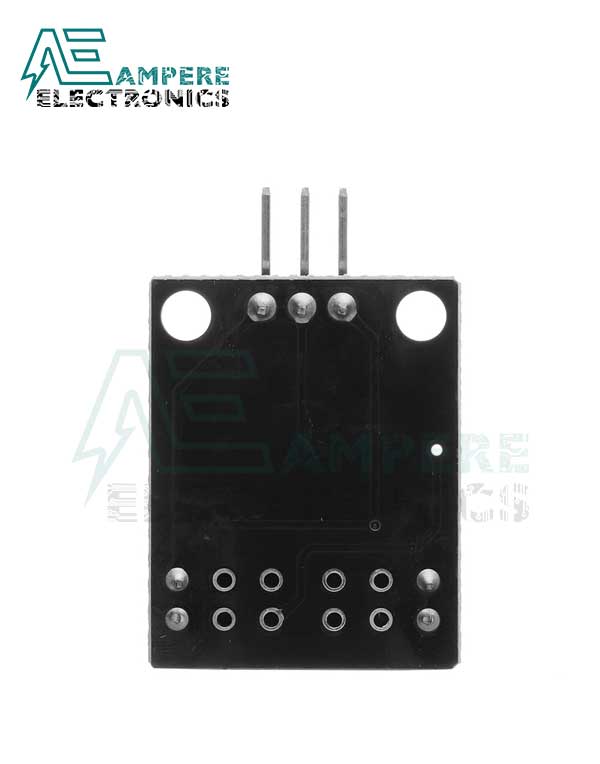

LM393 Infrared Speed Sensor Encoder Module

Description

LM393 Infrared Speed Sensor Module

• Optocoupler Model: H2010
• Optocoupler slot width : 10mm
• Main chip: LM393
• Working voltage: DC 5V
• PCB Mounting holes distance: 15mm
• Screw Size: M3
• Size: 32mm x11mm x 20mm

• There is a signal output indication.
• Single signal output.
• When the object is blocked, the output is high level (LED lights out), and the output is low when there is no shelter. (LED lights).
• The sensitivity is not adjustable.
• It can be used for workpiece counting and motor speed measurement.
• Circuit board output switch quantity

• 1x Speed Sensor Module

Datasheet:

• IR Speed Module Datasheet
