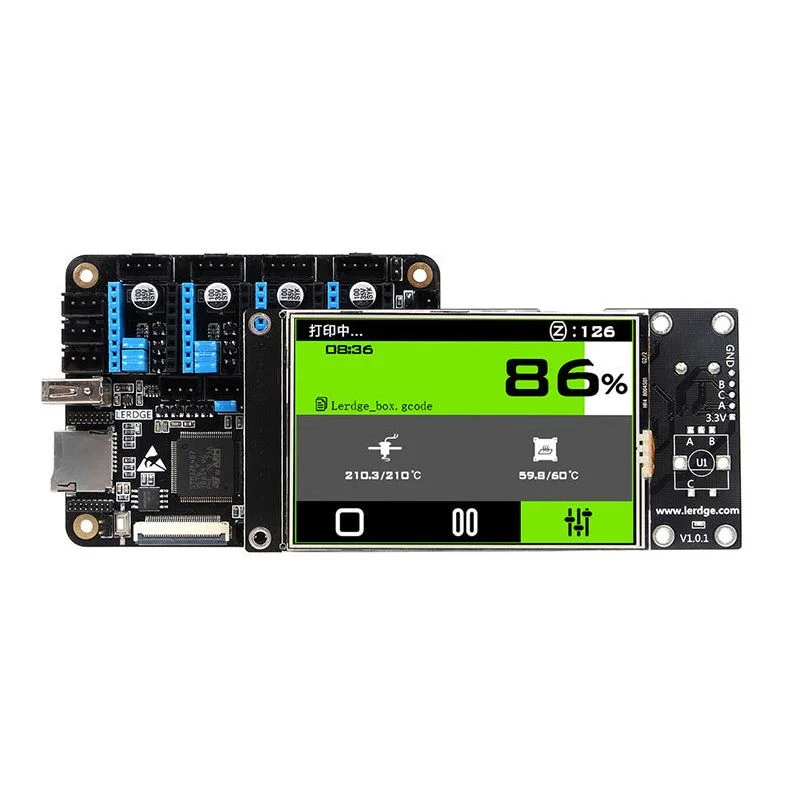

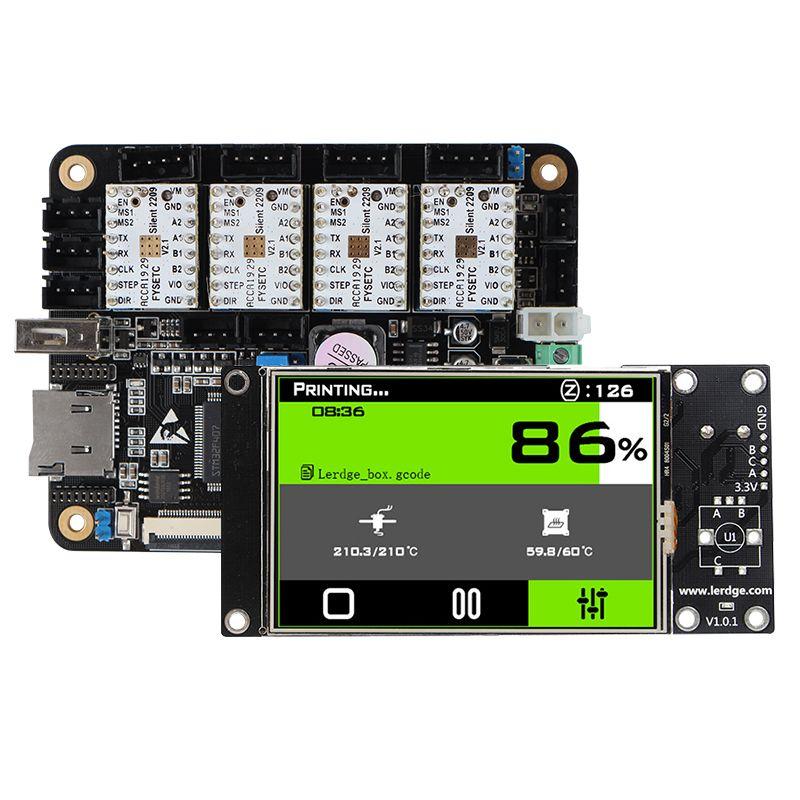

Lerdge-X ARM32 Mainboard with TMC2208 3.5Inch LCD Touch Screen Control Board DIY Kit for 3D Printer

Description:

Lerdge-X is a highly integrated control board designed for small 3D printers,educational 3D printer,and beginner level 3D printers
It is using 32bit Coretx-M4 Control Module with 3.5 Inch full color IPS Touch Screen
With Open Interface Support A4988,TMC2209,DRV8825,LV8729,TMC2100 and other External Drive
Lerdge-X contains Pause,Saving and Resume. To enable Power Resume and Auto Turn-off, a Power Management Module is needed
Lerdge-X default to be USB2.0 3.0 Offline Printing with USB stick or TF . It need a Communicate Module to Connect the Computer
Lerdge-X need a Heatbed Expansion Module to control the Heatbed

Related Files:

Firmware Download:?www.lerdge.com
Note: Firmware is different from Model X and Model S, Please download the correct one.

Online Config Tool:?http://bbs.lerdge.cn/configuration_tool

Motor Drive Testes:?http://www.lerdge.cn/video_view.aspx?TypeId=3&Id=71&Fid=t15:3:4

Hardware Protection Test:?http://www.lerdge.cn/video_view.aspx?TypeId=3&Id=72&Fid=t15:3:4

Package Included:

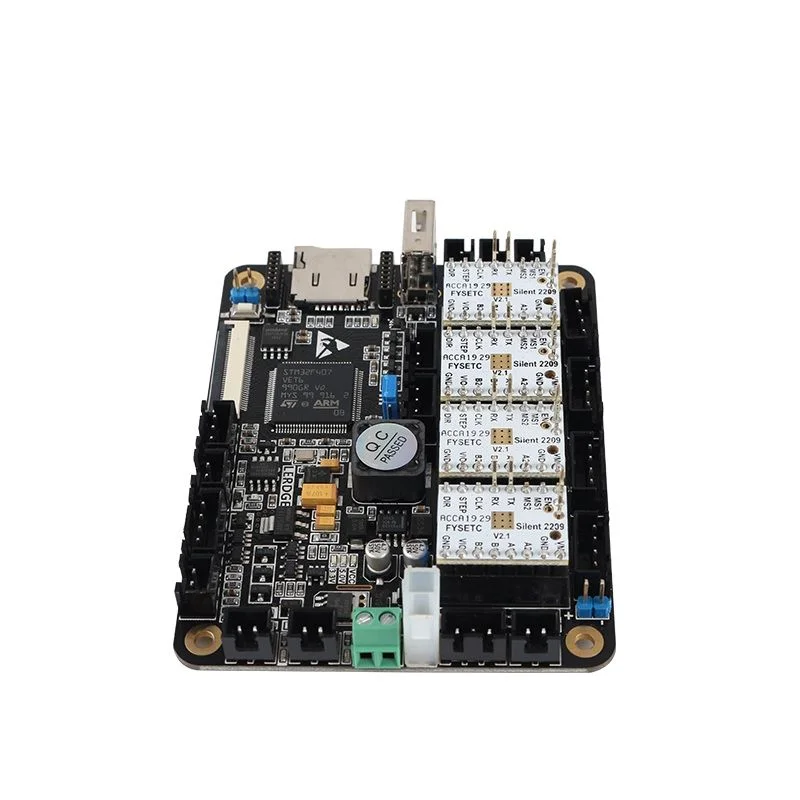

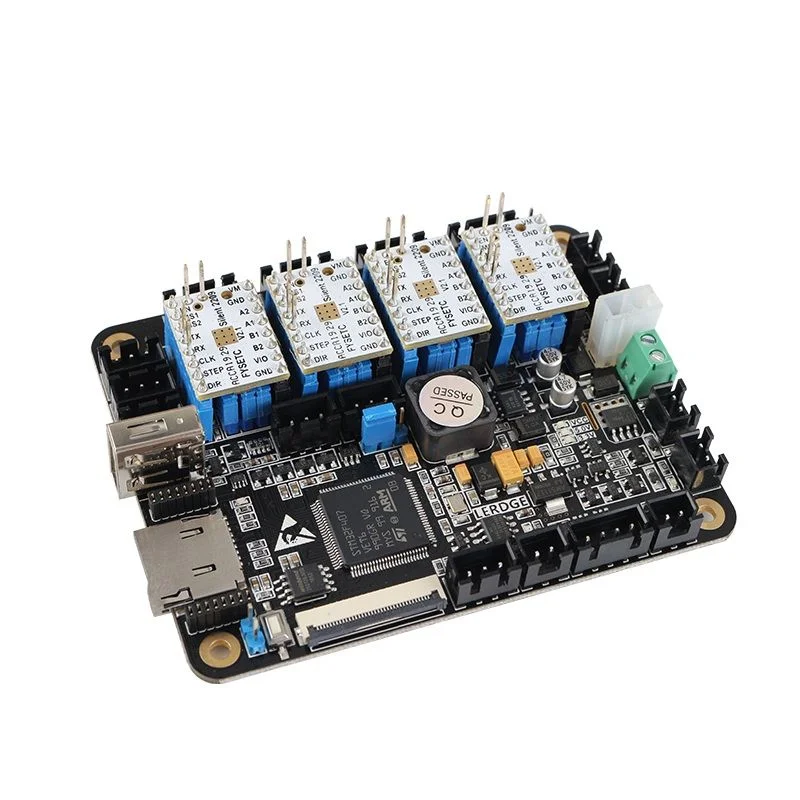

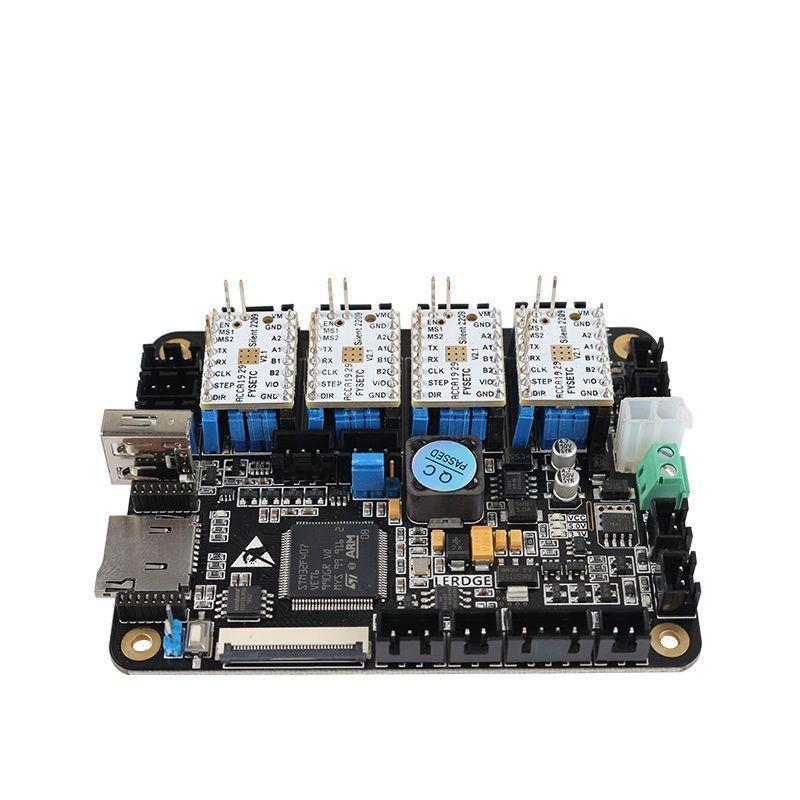

Lerdge-X Mainboard *1
3.5 Inch IPS Touch Screen *1
TMC2208 *4
Power Cable *1
30cm FFC Cable *1
TMC2209 Heatsink *4
1pin Cable *20
Screwdriver *1
Touch Pen *1
