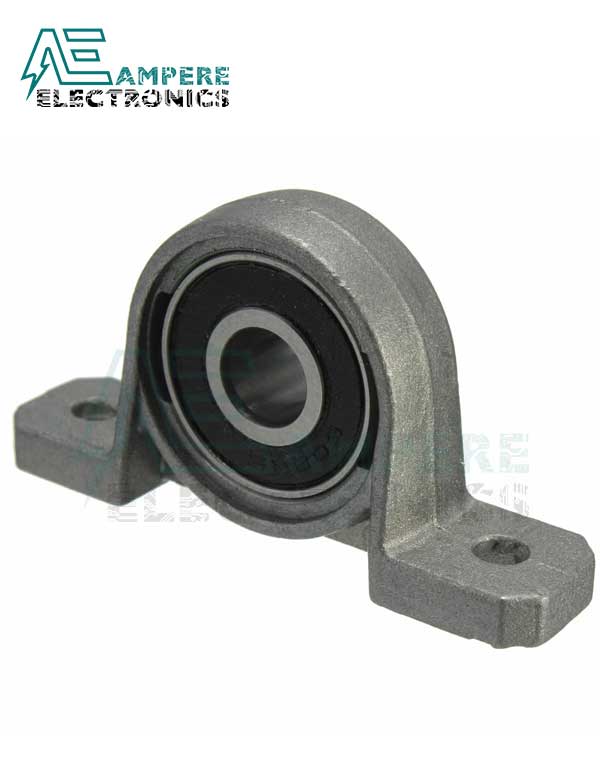

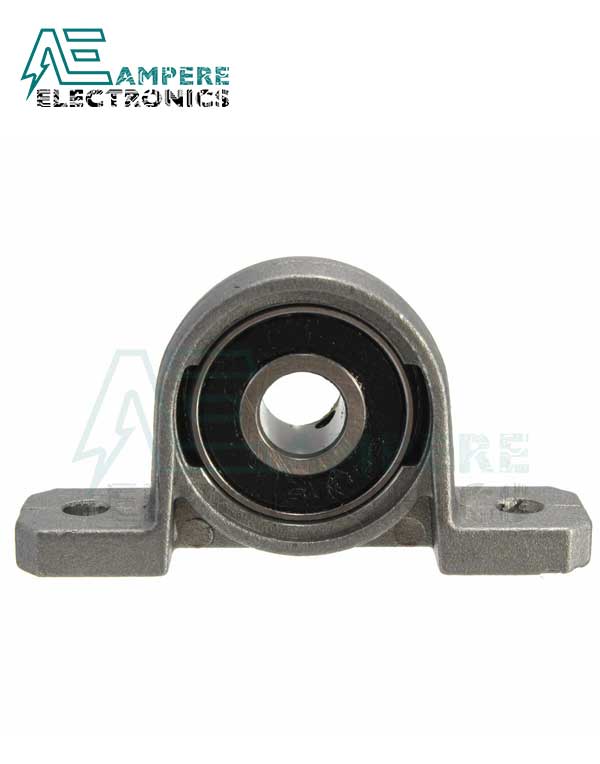

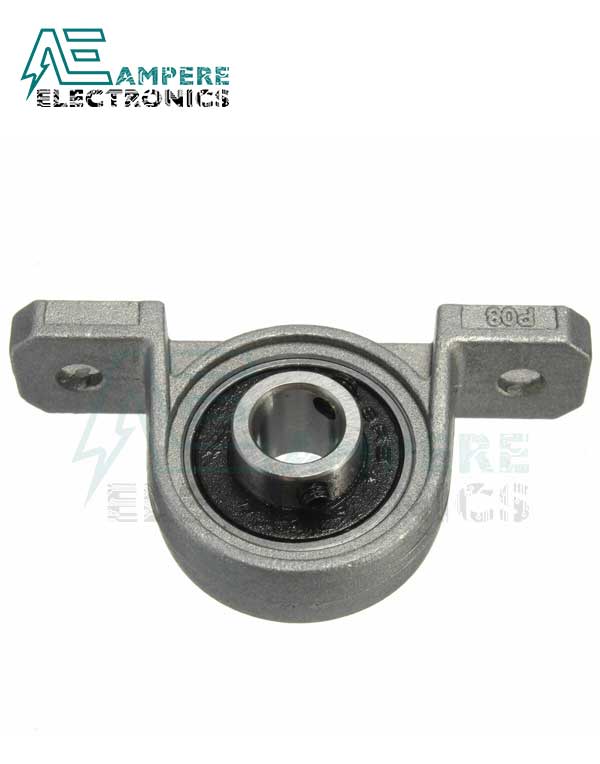

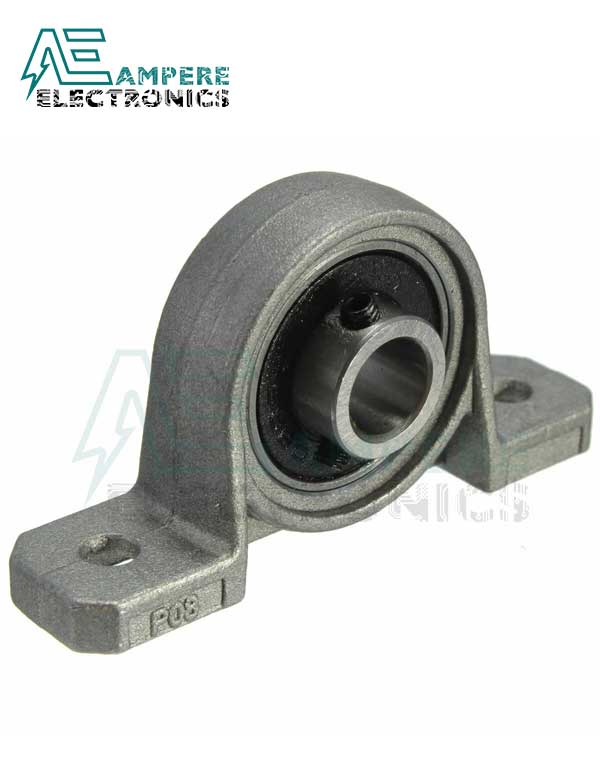

KP08 Pillow Block Bearing, Bore Dia. 8mm

Description

KP08 Pillow Block Bearing, Bore Dia. 8mm

• Suitable for mounting on flat surfaces and high radial load capacities
• The housing is made of zinc die-cast
• The bearing insert has an extended inner ring with grub screws
• The pillow block bearing is mounted on the shaft with two grub screws
• The bearing insert can compensate for low static misalignment
• Two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter
• Lubricated for life; under normal operating conditions relubrication is not required
• In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on

Specifications:

• Model: KP08
• Material: zinc alloy
• Bore Diameter: 8mm
• Mounding Hole Dia.: 4.5mm
• Mounting Hole Spacing: 42mm
• Dimensions:
  • Length: 55mm
  • Width: 14mm
  • Hight: 29mm
• Weight: 25.7Gm

Package Includes:

• 1x Pillow Block Bearing
