SKU: 24858

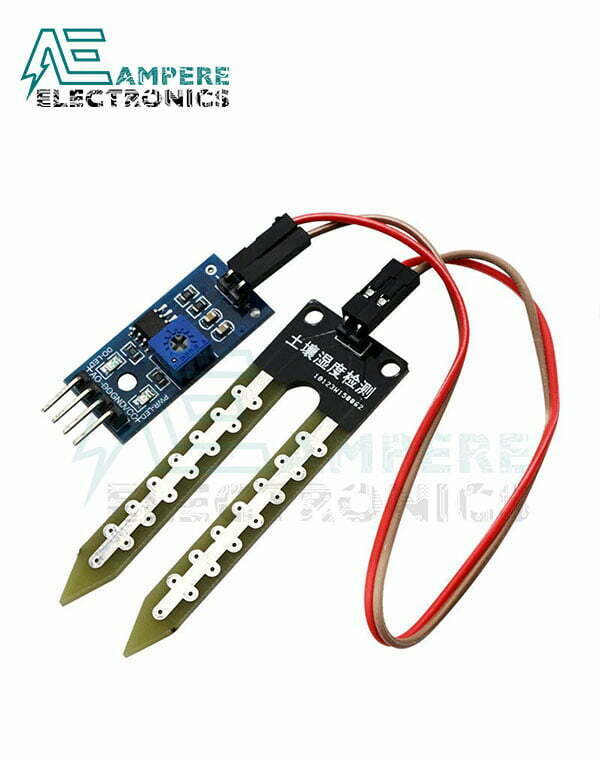

FC-28 Soil Moisture Module 3.3-5Vdc
75,00 EGP
FC-28 Soil Moisture Module 3.3-5Vdc
- Operating Voltage: 3.3V to 5V DC
- Operating Current: 15mA
- Output Digital – 0V to 5V, Adjustable trigger level from preset
- Output Analog – 0V to 5V based on infrared radiation from fire flame falling on the sensor
- LEDs indicating output and power
- PCB Size: 3.2cm x 1.4cm
- LM393 based design
- Easy to use with Microcontrollers or even with normal Digital/Analog IC
- Small, cheap and easily available
In stock
Description
FC-28 Soil Moisture Module 3.3-5Vdc
This soil moisture module is used to detect the moisture of the soil. It measures the volumetric content of water inside the soil and gives us the moisture level as output. The module has both digital and analog outputs and a potentiometer to adjust the threshold level.

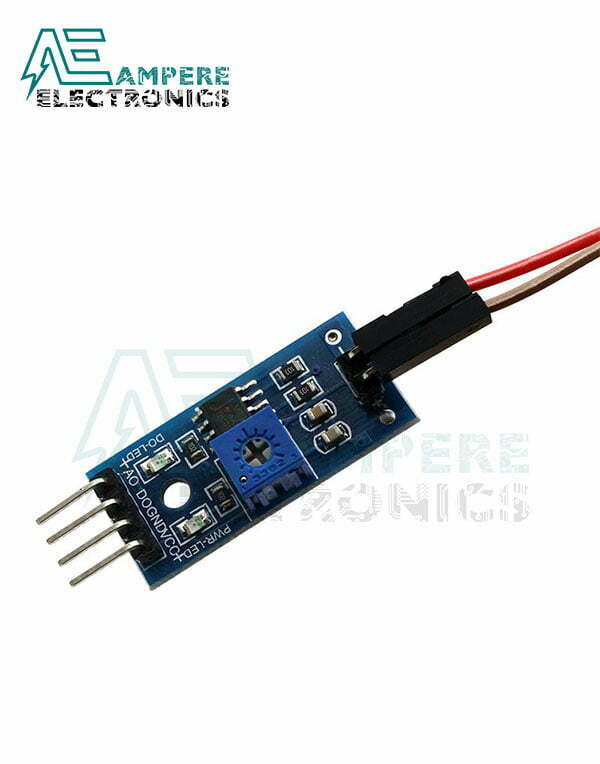

Pinout Configuration:
Pin Name | Description |
VCC | The VCC pin powers the module, typically with +5V |
GND | Power Supply Ground |
DO | Digital Out Pin for Digital Output. |
AO | Analog Out Pin for Analog Output |
Features:
- Operating Voltage: 3.3V to 5V DC
- Operating Current: 15mA
- Output Digital – 0V to 5V, Adjustable trigger level from preset
- Output Analog – 0V to 5V based on infrared radiation from fire flame falling on the sensor
- LEDs indicating output and power
- PCB Size: 3.2cm x 1.4cm
- LM393 based design
- Easy to use with Microcontrollers or even with normal Digital/Analog IC
- Small, cheap and easily available
Package Includes :
- 1x Soil moisture detector module

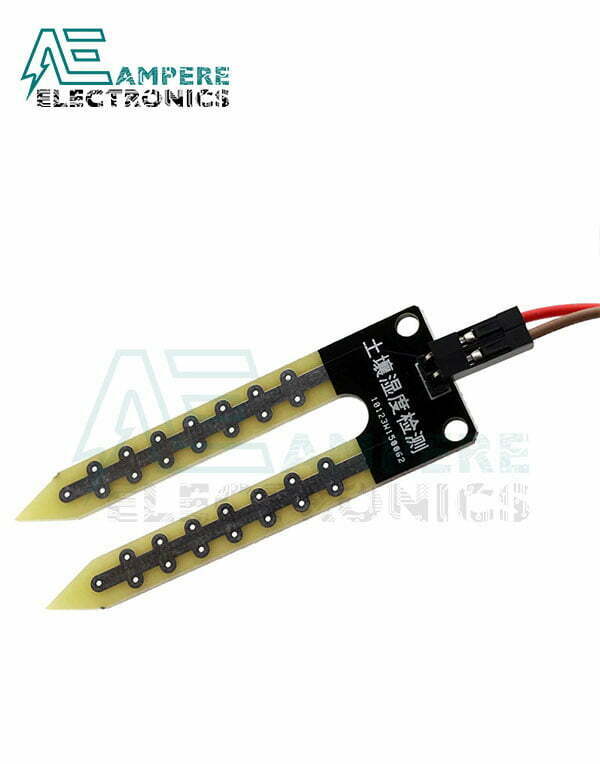

- 1x Probe
- 1x 2P Jumper Cable
