SKU: 26745

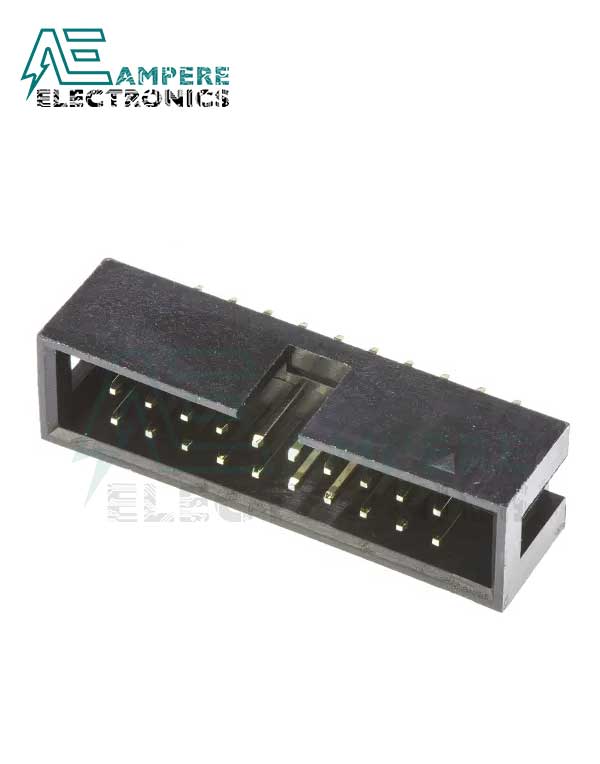

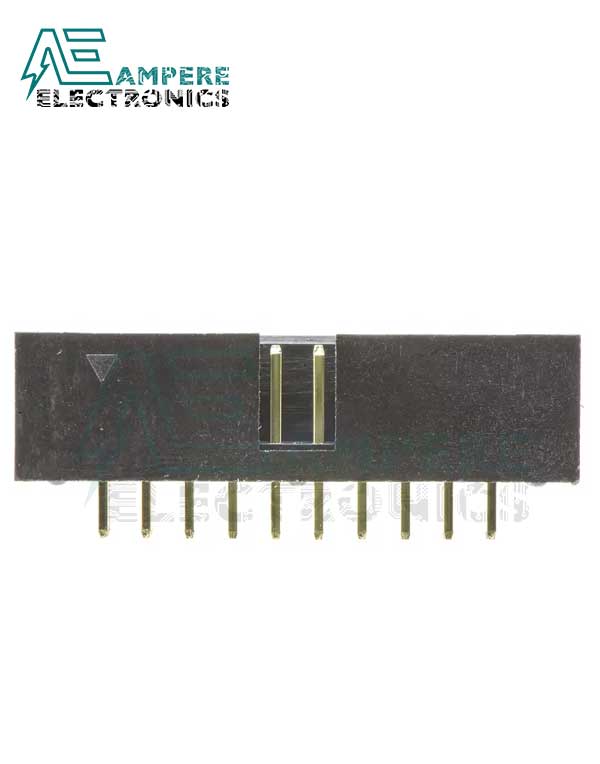

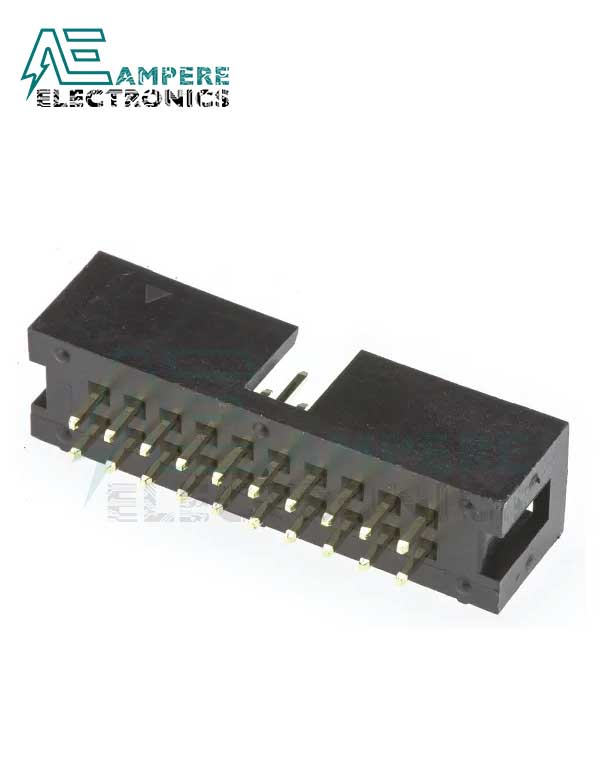

FC-20 Male PCB IDC Connector, 20 Way, 2 Row, Straight
4,00 EGP
FC-20 Male PCB IDC Connector, 20 Way, 2 Row, Straight
- 20-Way, male IDC connector plug, 2-Row
- Multicolor Straight orientation
- Multicolor Through-hole mounting
- Multicolor Length of 33.05 mm
- Multicolor Solder spill connections suitable for standard 1.6 mm PCBs
- Multicolor Operating temperature range of -45˚C to +105˚C
- Multicolor Low-resistance gold-plated contacts
- Multicolor Current rating of 1 A
- Multicolor Insulation resistance of 5,000 mΩ a minute at dc 500V
In stock
Description
FC-20 Male PCB IDC Connector, 20 Way, 2 Row, Straight
- 20-Way, male IDC connector plug, 2-Row
- Multicolor Straight orientation
- Multicolor Through-hole mounting
- Multicolor Length of 33.05 mm
- Multicolor Solder spill connections suitable for standard 1.6 mm PCBs
- Multicolor Operating temperature range of -45˚C to +105˚C
- Multicolor Low-resistance gold-plated contacts
- Multicolor Current rating of 1 A
- Multicolor Insulation resistance of 5,000 mΩ a minute at dc 500V
Specifications:
| Attribute | Value |
| Pitch | 2.54mm |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Termination Method | IDC |
| Contact Plating | Gold |
| Contact Material | Copper |
| Current Rating | 1A |
Package Includes:
- 1x FC-20 IDC PCB Connector
