SKU: 26744

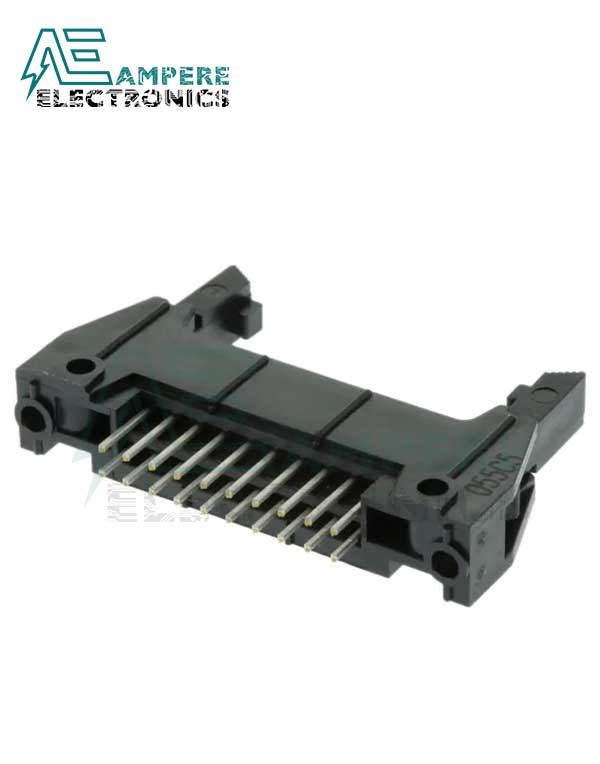

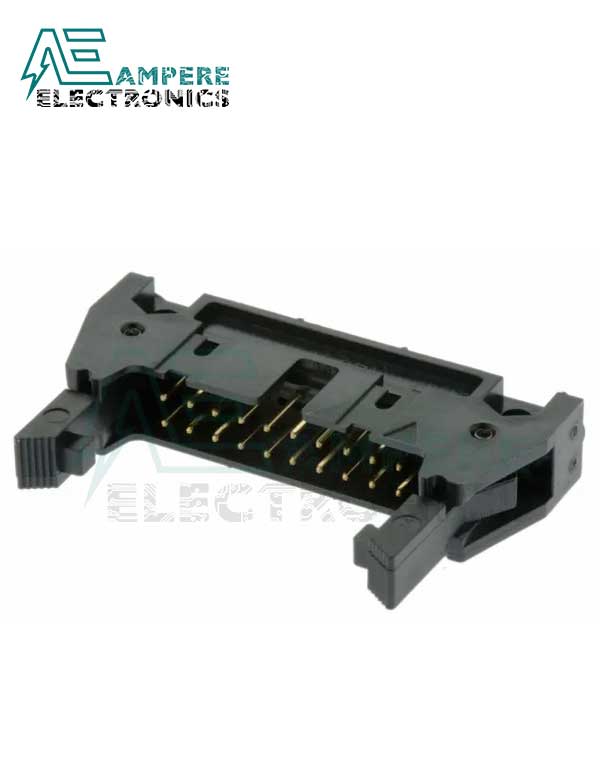

FC-20 Male PCB IDC Connector with Latch, 20 Way, 2 Row, Straight
6,00 EGP
FC-20 Male PCB IDC Connector with Latch, 20 Way, 2 Row, Straight
- 20-Way, male IDC connector plug, 2-Row
- Straight orientation
- Through-hole mounting
- Length of 33.05 mm
- Solder spill connections suitable for standard 1.6 mm PCBs
- Operating temperature range of -45˚C to +105˚C
- Low-resistance gold-plated contacts
- Current rating of 1 A
- Insulation resistance of 5,000 mΩ a minute at dc 500V
In stock
Description
FC-20 Male PCB IDC Connector with Latch, 20 Way, 2 Row, Straight
- 20-Way, male IDC connector plug, 2-Row
- Straight orientation
- Through-hole mounting
- Length of 33.05 mm
- Solder spill connections suitable for standard 1.6 mm PCBs
- Operating temperature range of -45˚C to +105˚C
- Low-resistance gold-plated contacts
- Current rating of 1 A
- Insulation resistance of 5,000 mΩ a minute at dc 500V

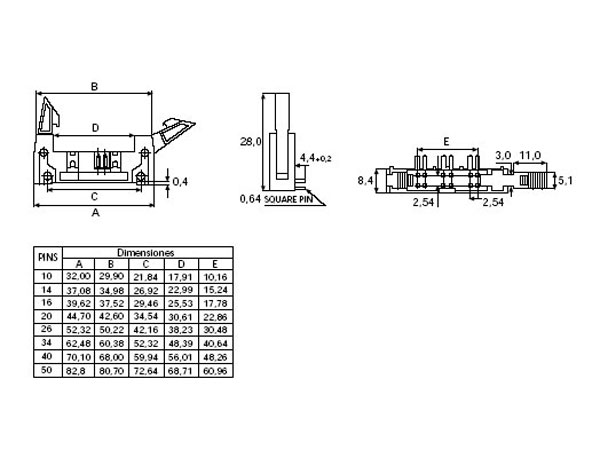

Specifications:
| Attribute | Value |
| Series | 3000 |
| Pitch | 2.54mm |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board to Board, Wire to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 1A |
Package Includes:
- 1x FC-20 IDC PCB Connector
