CD4072BE, Dual 4-Input OR Logic Gate, 14-Pin PDIP
12,00 EGP
Product Details

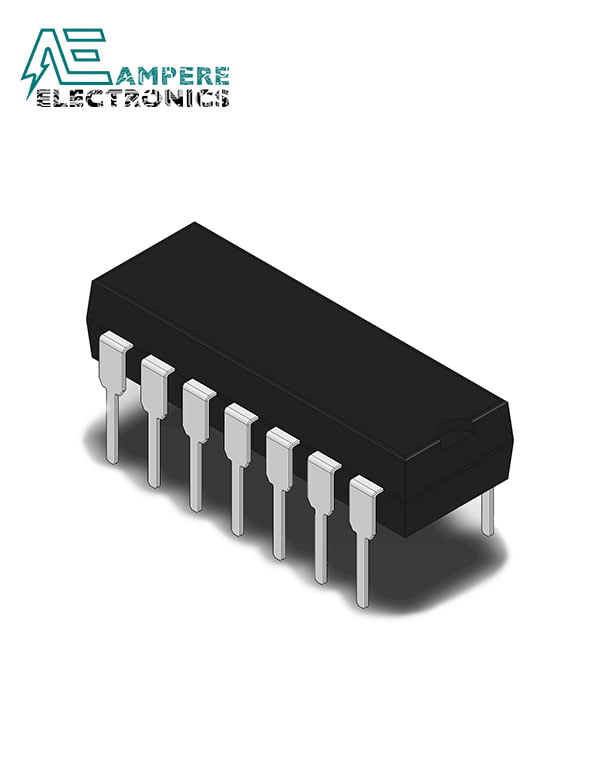

CD4072BE, Dual 4-Input OR Logic Gate, 14-Pin PDIP
Texas Instruments range of standard Logic Gates from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
Specifications
| Attribute | Value |
| Logic Function | OR |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Number of Inputs per Gate | 4 |
| Schmitt Trigger Input | No |
| Package Type | PDIP |
| Pin Count | 14 |
| Logic Family | 4000 |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 18 V |
| Maximum High Level Output Current | -4.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 250 ns @ 50 pF |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Low Level Output Current | 4.2mA |
| Propagation Delay Test Condition | 50pF |
| Output Type | CMOS |
| Length | 19.69mm |
| Height | 4.57mm |
| Width | 6.6mm |
| Minimum Operating Temperature | -55 ?C |
| Dimensions | 19.69 x 6.6 x 4.57mm |
| Maximum Operating Temperature | +125 ?C |
