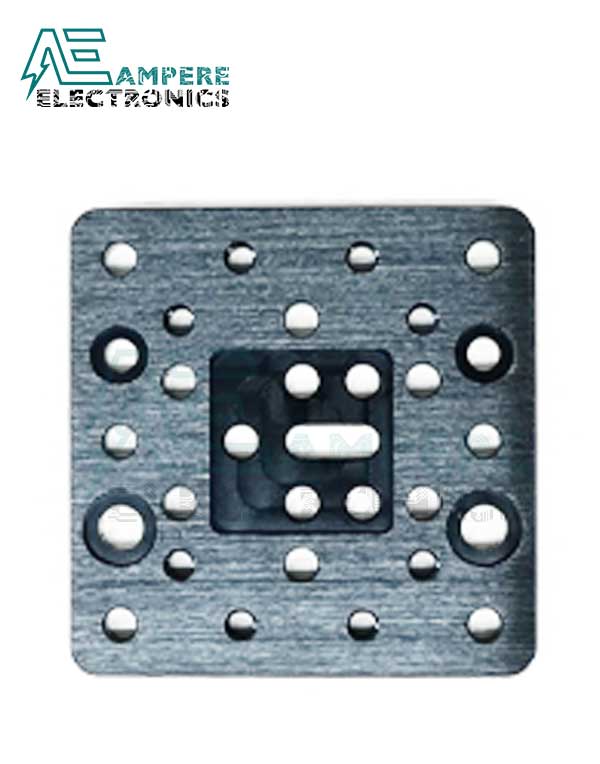

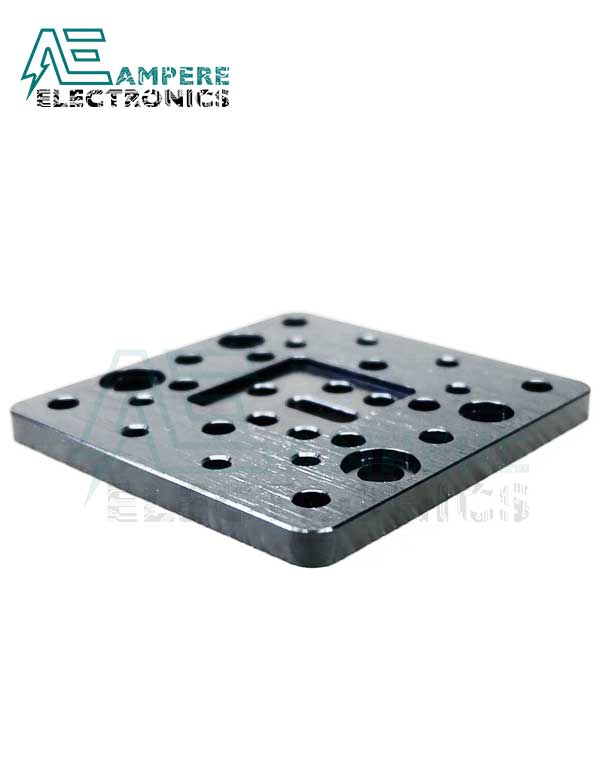

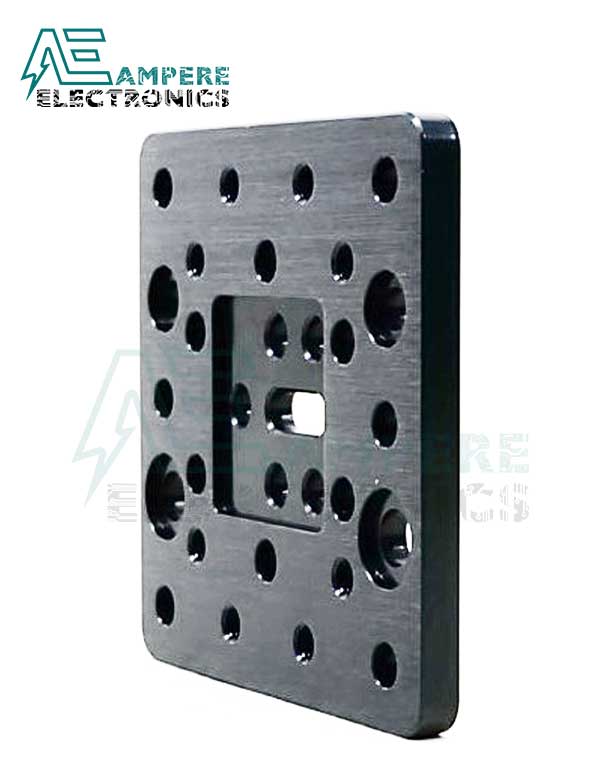

C-Beam Gantry Plate | OpenBuilds

Description

C-Beam Gantry Plate | OpenBuilds

Accommodates up to 4 mini v wheels.??Easily configured to station wheels inside??C-Beam Linear Rail?track for a compact gantry cart footprint.??Alternate the mounting on slimmer?V-Slot Linear Rail?to position wheels on the outermost portion of the rail.???Recessed and pre-tapped holes for professional flush mounts holes for professional flush mounts.

• C-Beam and V-Slot compatible
• Countersunk holes
• Pre-tapped holes
• Center recess
• Multiple mounting configurations

Specifications

• Size: 77.5 x 77.5mm
• Thickness: 6mm
• Material: 6061 ? T5 Aluminum
• Finish: Brushed and Anodized
• Color: Black

Package Includes:

• 1x Gantry Plate

CAD Model:

• Gantry Plate 3D Model
