SKU: 25608

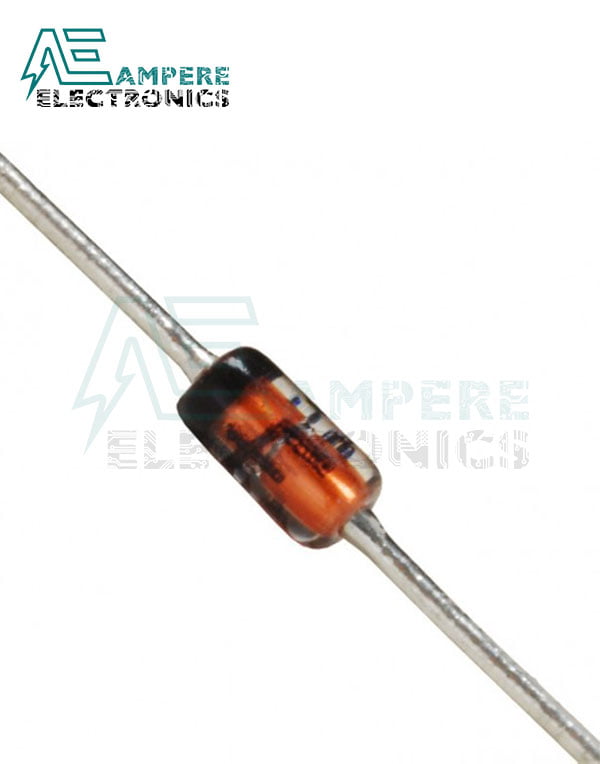

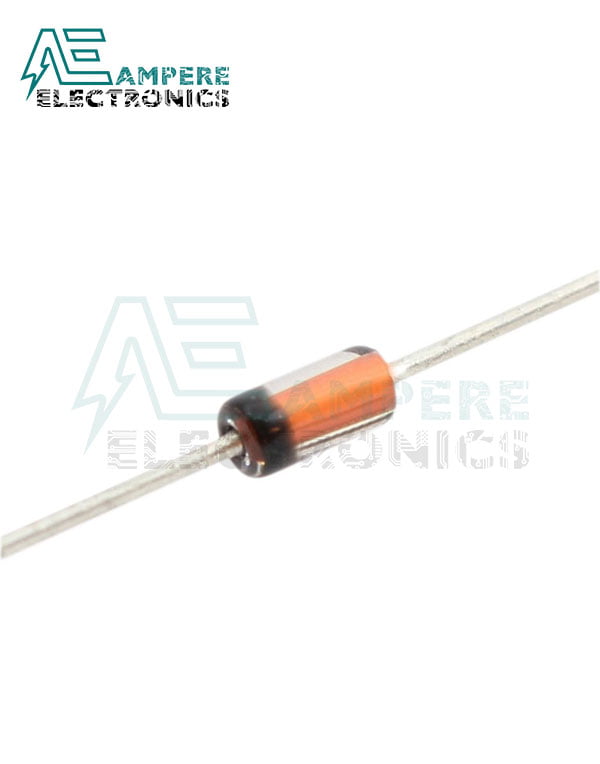

BZX79C27 – Zener Diode 27V, 500mW, 2-Pin DO-35
0,50 EGP
BZX79C27 – Zener Diode 27V, 500mW, 2-Pin DO-35
In stock
Description
BZX79C27 – Zener Diode 27V, 500mW, 2-Pin DO-35
Specifications:
| Attribute | Value |
| Diode Configuration | Single |
| Nominal Zener Voltage | 27V |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | DO-35 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 20? |
| Maximum Reverse Leakage Current | 200nA |
| Dimensions | 1.91 (Dia.) x 4.56mm |
| Typical Voltage Temperature Coefficient | 4.5 ? 8mV/?C |
| Minimum Operating Temperature | -65 ?C |
| Maximum Operating Temperature | +200 ?C |
Package Includes:
- 1x Zener
