SKU: 26587

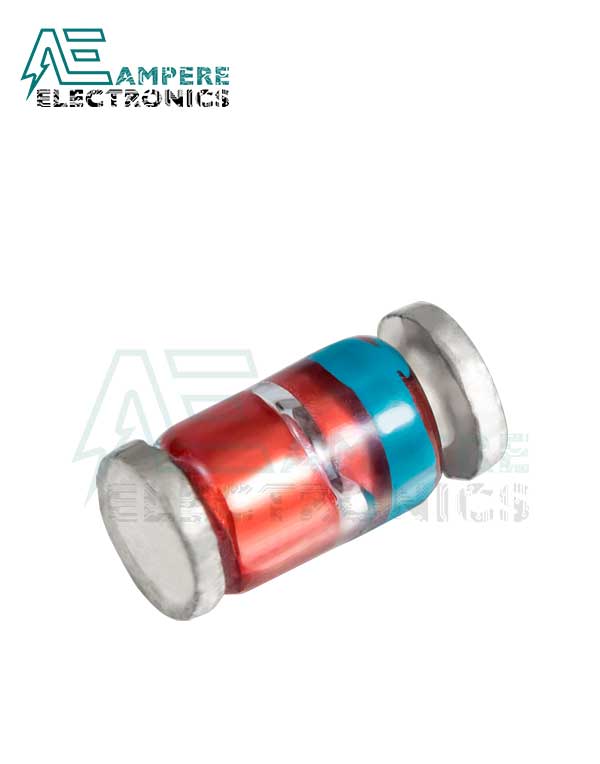

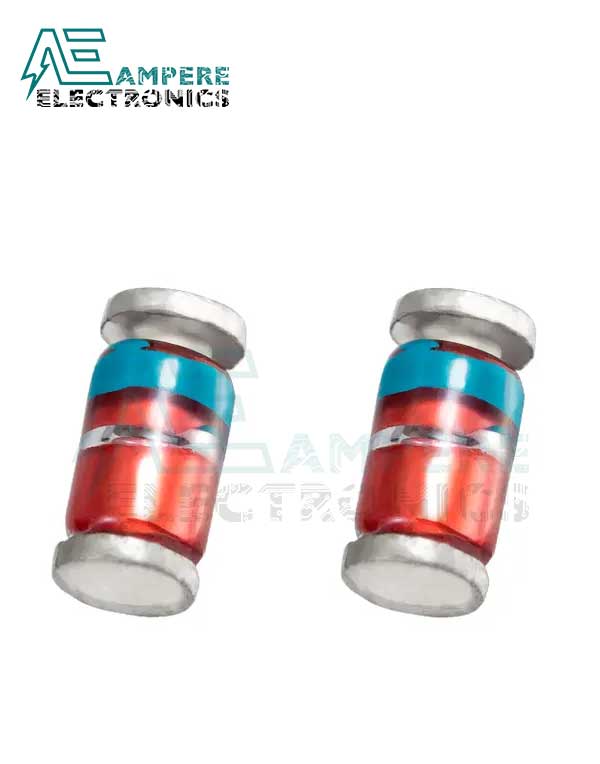

BZT55C5V1 – SMD Zener Diode 5.1V, 500mW, SOD-80
1,00 EGP
BZT55C5V1 – SMD Zener Diode 5.1V, 500mW, SOD-80
- Small Signal Zener Diodes
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
- AEC-Q101 qualified
In stock
Description
BZT55C5V1 – SMD Zener Diode 5.1V, 500mW, SOD-80
- Small Signal Zener Diodes
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
- AEC-Q101 qualified
Specifications:
| Attribute | Value |
| Nominal Zener Voltage | 2.7 V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Package Type | QuadroMELF SOD-80 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 6% |
| Test Current | 1 mA, 5mA |
| Maximum Zener Impedance | <30Ω |
| Maximum Reverse Leakage Current | <100 (25°C) nA, 2 (150°C) μA |

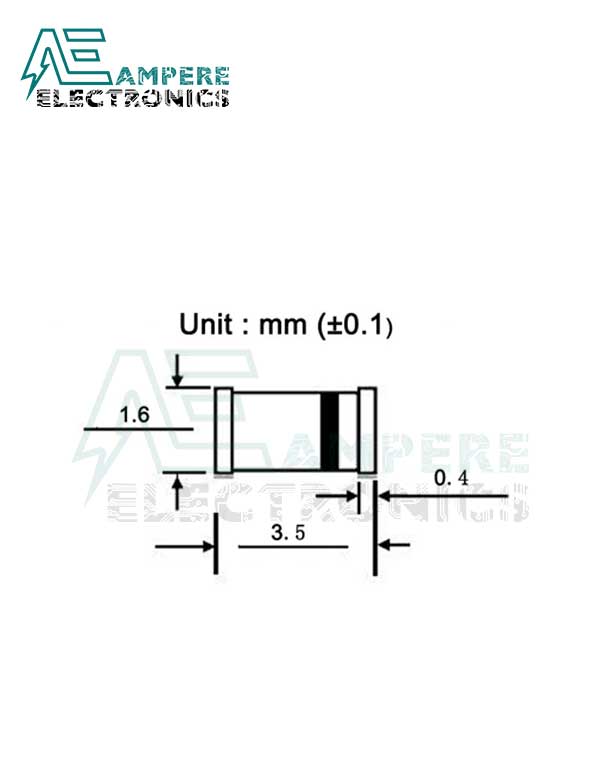

| Dimensions | 3.7 (L) x 1.6 (H)mm |
| Maximum Operating Temperature | +175 °C |
| Forward Current | 200mA |
| Typical Voltage Temperature Coefficient | 0.03 → 0.11%/K |
| Forward Voltage | 1.5V |
Package Includes:
- 1x Zener Diode
