AMS1117 Voltage Regulator
SKU: 25883

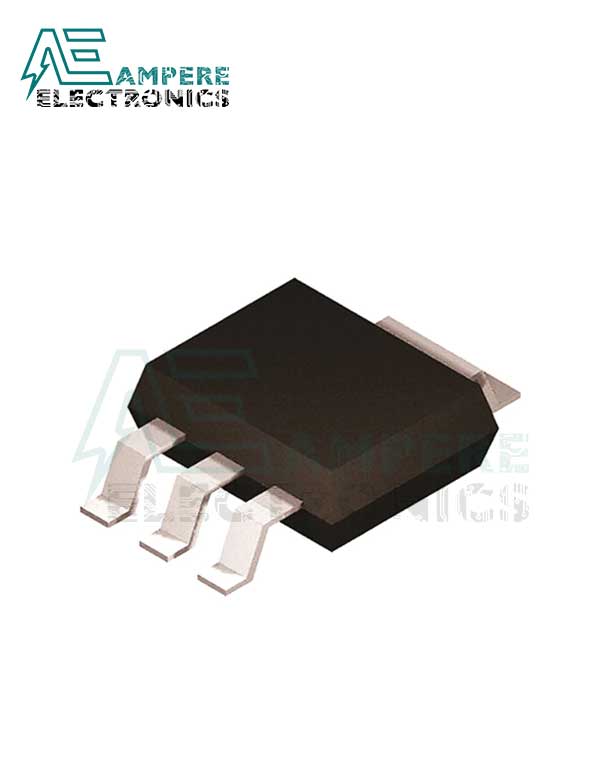

AMS1117 Voltage Regulator 5.0V, 1A, SOT-223 SMD

7,50 EGP

AMS1117 Voltage Regulator 5.0V, 1A, SOT-223 SMD

The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input-output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.

Out of stock

SKU: 25883 Category:

Description

AMS1117 Voltage Regulator 5.0V, 1A, SOT-223 SMD

The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input-output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.

Specifications:

AttributeValue
Maximum Output Current1A
Regulator TypeLow Dropout Voltage
Number of Outputs1
Output Voltage5.0 V
Line Regulation10 mV
Load Regulation15 mV
Accuracy?1%
PolarityPositive
Mounting TypeSurface Mount
Quiescent Current6mA
Package TypeSOT-223
Pin Count3+Tab
Output TypeFixed
Dimensions6.7 x 3.7 x 1.7mm
Height1.7mm
Length6.7mm
Width3.7mm
Maximum Operating Temperature+125 ?C
Maximum Input Voltage15 V
Minimum Operating Temperature-20 ?C



Package Includes:

  • 1x Voltage Regulator

Datasheet:
