SKU: 23621

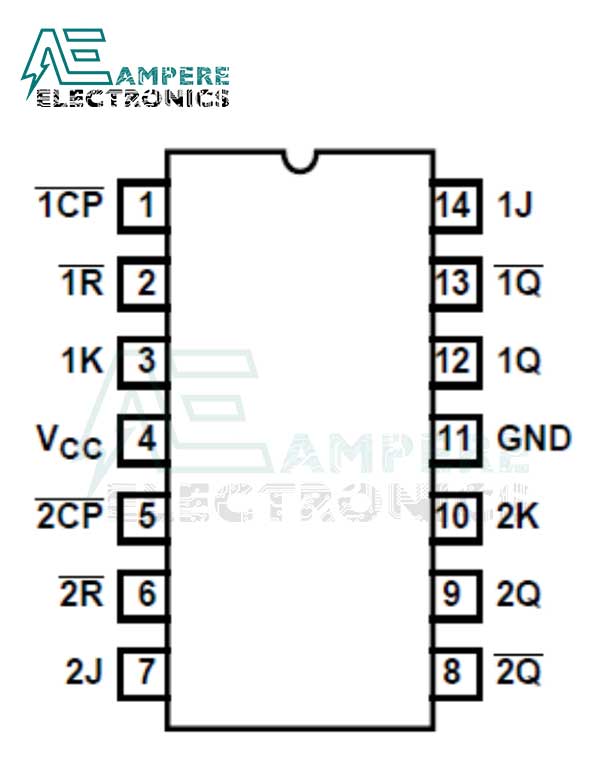

74LS73 Dual JK Type Flip Flop IC, 14-Pin PDIP – 7473
15,00 EGP
74LS73 Dual JK Type Flip Flop IC, 14-Pin PDIP – 7473
Texas Instruments range of Flip-Flops and Latches from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
In stock
Description
74LS73 Dual JK Type Flip Flop IC, 14-Pin PDIP – 7473
Texas Instruments range of Flip-Flops and Latches from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
Specifications
| Attribute | Value |
| Logic Family | LS |
| Logic Function | JK Type |
| Input Type | Single Ended |
| Output Signal Type | Differential |
| Triggering Type | Negative Edge |
| Polarity | Inverting, Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Set/Reset | Reset |
| Number of Elements per Chip | 2 |
| Maximum Propagation Delay Time @ Maximum CL | 20 ns @ 5 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Maximum Operating Supply Voltage | 5.25 V |
| Minimum Operating Supply Voltage | 4.75 V |
| Minimum Operating Temperature | 0 ?C |
| Width | 6.35mm |
| Maximum Operating Temperature | +70 ?C |
| Height | 4.57mm |
| Propagation Delay Test Condition | 15pF |
| Length | 19.3mm |
Package Includes:
- 1x Dual JK Type Flip Flop IC
