SKU: 24747
74LS374 Octal D-Type Flip Flop 3-State – 74374
10,00 EGP
74LS374 Octal D-Type Flip Flop 3-State

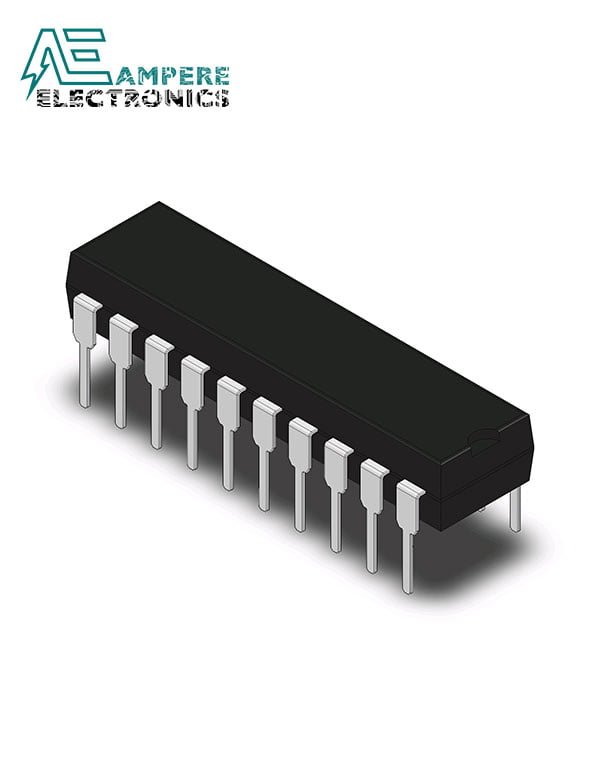

Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300″, 7.62mm)
In stock
Description
74LS374 Octal D-Type Flip Flop 3-State – 74374
Specifications
TYPE | DESCRIPTION | |
|---|---|---|
Category | Integrated Circuits (ICs) | |
Mfr | Texas Instruments | |
Series | 74LS | |
Package | Tube | |
Part Status | Active | |
Function | Standard | |
Type | D-Type | |
Output Type | Tri-State, Non-Inverted | |
Number of Elements | 1 | |
Number of Bits per Element | 8 | |
Clock Frequency | 50 MHz | |
Max Propagation Delay @ V, Max CL | 28ns @ 5V, 45pF | |
Trigger Type | Positive Edge | |
Current – Output High, Low | 2.6mA, 24mA | |
Voltage – Supply | 4.75V ~ 5.25V | |
Current – Quiescent (Iq) | 40 mA | |
Operating Temperature | 0?C ~ 70?C (TA) | |
Mounting Type | Through Hole | |
Supplier Device Package | 20-PDIP | |
Package / Case | 20-DIP (0.300″, 7.62mm) | |
Base Product Number | 74LS374 |
