SKU: 24749

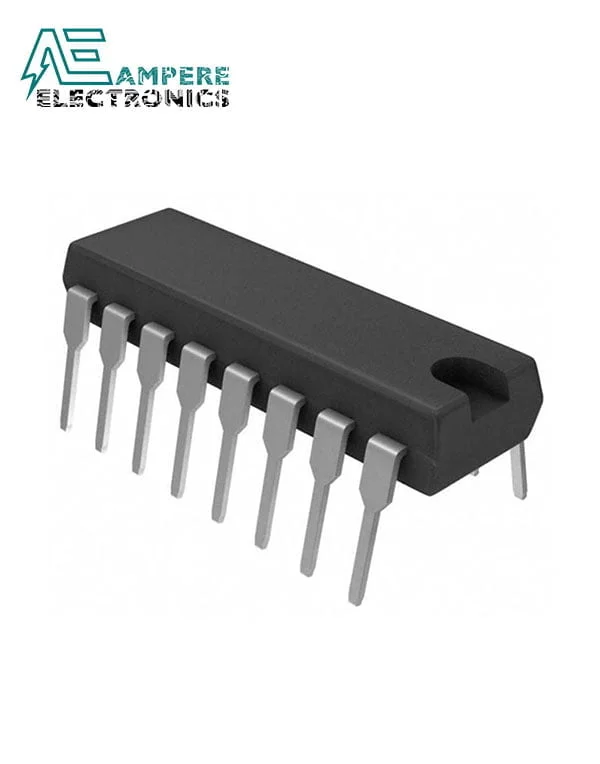

74HC48 BCD to 7-Segment Decoder/Driver Com. Cathode – 7448
22,00 EGP
74HC48 BCD to 7-Segment Decoder
BCD-to-Seven-Segment Decoders/Drivers 16-DIP (0.300″, 7.62mm) 0 to 70
In stock
Description
74HC48 BCD to 7-Segment Decoder/Driver Com. Cathode – 7448
Specifications
| TYPE | DESCRIPTION | |
|---|---|---|
| Texas Instruments | ||
| Integrated Circuits (ICs) | ||
| Decoders / Demultiplexers | ||
| 74HC | ||
| 4 Input | ||
| 7 Output | ||
| 4.75 V | ||
| 5.25 V | ||
| 0 C | ||
| + 70 C | ||
| Through Hole | ||
| PDIP-16 | ||
| Tube | ||
| Function: | Decoder/Driver | |
| Height: | 4.57 mm | |
| Length: | 19.3 mm | |
| Number of Circuits: | 1 Circuit | |
| Operating Temperature Range: | 0 C to + 70 C | |
| Series: | SN74HC48 | |
| Technology: | Bipolar | |
| Width: | 6.35 mm | |
| Brand: | Texas Instruments | |
| Logic Type: | Decoders/Demultiplexers | |
| Supply Current ? Max: | 25 mA | |
| High Level Output Current: | ? 0.1 mA | |
| Low Level Output Current: | 6 mA | |
| Operating Supply Voltage: | 5 V | |
| Product Type: | Encoders, Decoders, Multiplexers & Demultiplexers | |
| Subcategory: | Logic ICs | |
| Unit Weight: | 1,628 g |
Datasheet:
