SKU: 22278

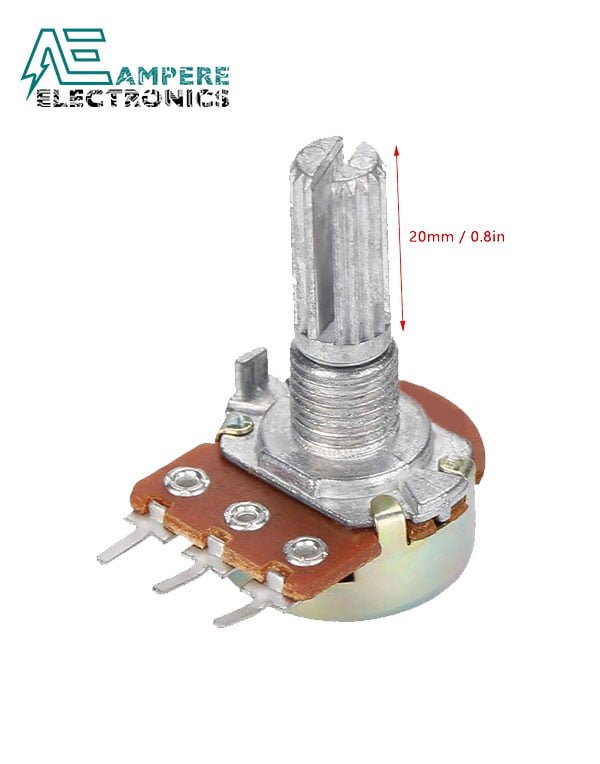

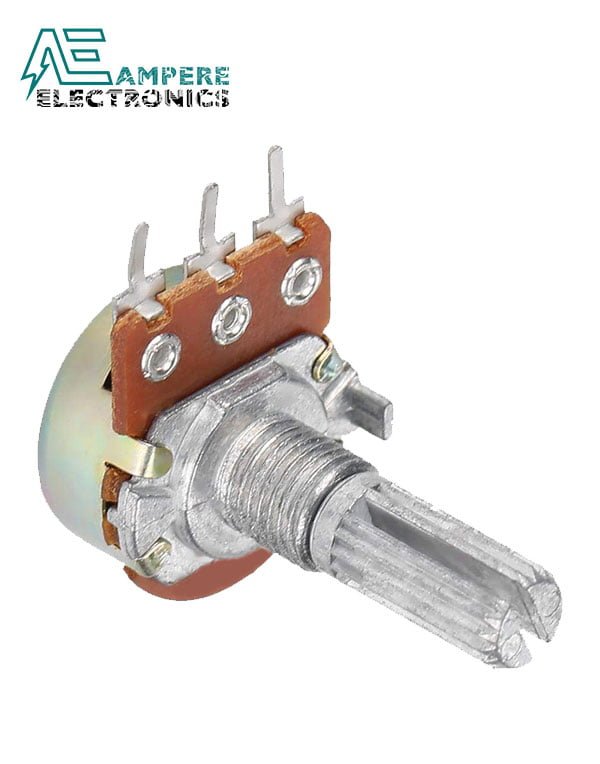

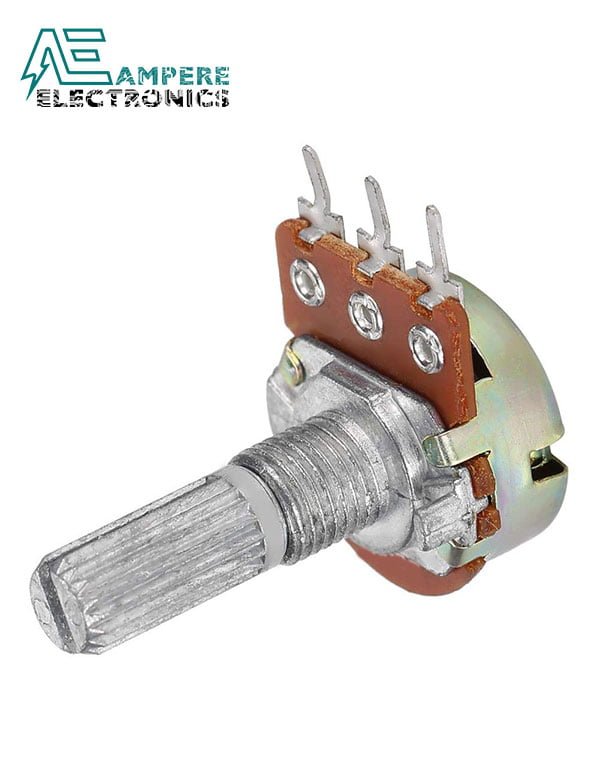

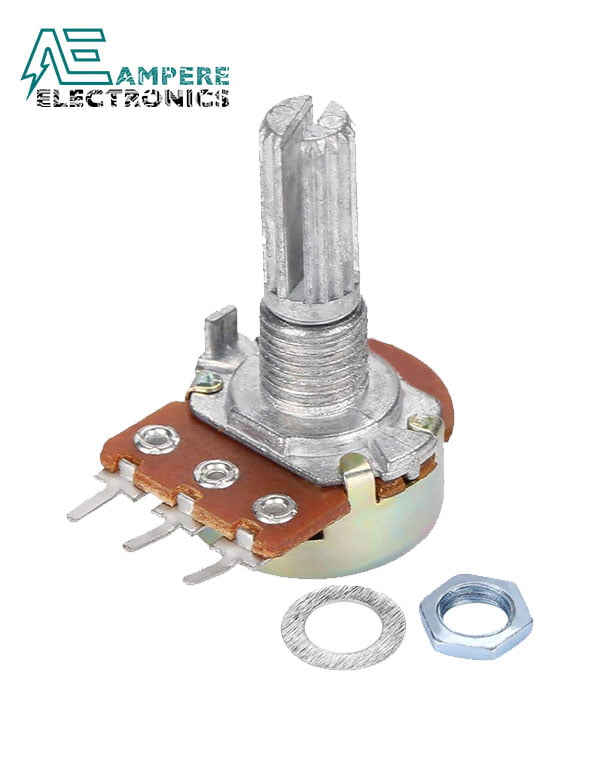

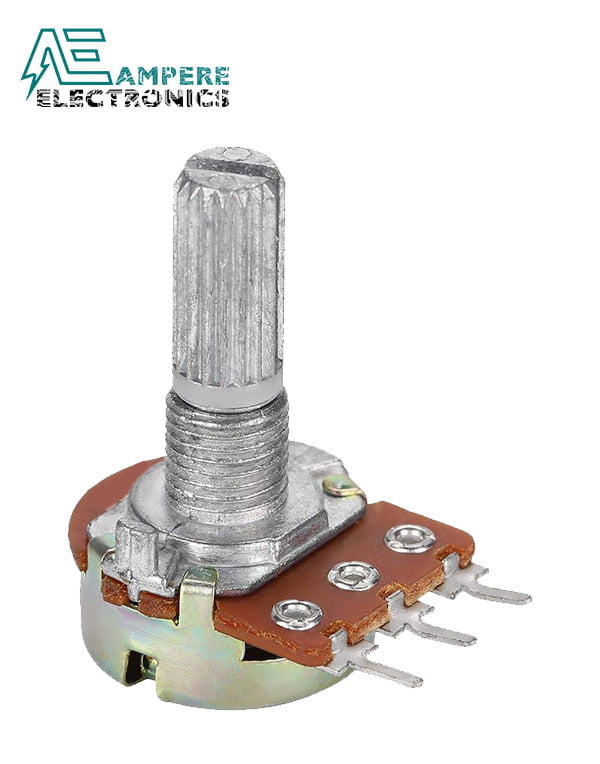

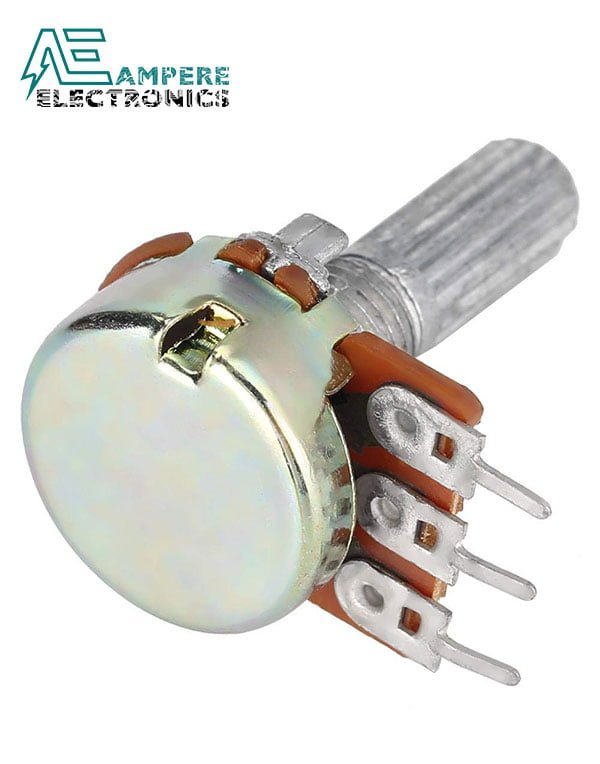

500Kohm Linear Taper Rotary Potentiometer
3,50 EGP
500Kohm Linear Taper Rotary Potentiometer
- Shaft Diameter: 6mm.
- Mount hole diameter: 7.2mm.
- Shaft Length: 19mm
- Dimensions
- Length: 17mm
- Width: 7mm
- Hight: 25mm
- Mechanical Rotation Angle. = 300?
- Electrical Rotation Angle. = 280?
In stock
Description
500Kohm Linear Taper Rotary Potentiometer
- Shaft Diameter: 6mm.
- Mount hole diameter: 7.2mm.
- Shaft Length: 19mm
- Dimensions
- Length: 17mm
- Width: 7mm
- Hight: 25mm
- Mechanical Rotation Angle. = 300?
- Electrical Rotation Angle. = 280?
Specifications:
| Attribute | Value |
| Potentiometer Type | Rotary |
| Maximum Resistance | 500k? |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 0.5W |
| Electrical Taper | Audio |
| Element Material | Carbon |
| Mounting Type | Panel and PCB Mount |
| Termination Style | Solder Lug |
| Shaft Length | 19mm |
| Shaft Diameter | 6 mm |
| Actuator Type | Knurled Shaft |
| Tolerance | ?20% |
Package Includes:
- 1x Potentiometer
Product Datasheet:
