330ohm 7 Resistor Network (8pins)
330ohm 7 Resistor Network (8pins)
- Low profile
- Range of pin packages enables you to be flexible with your designs
- Marking on contrasting background enables permanent identification
Safe shopping
Your data is always protected
Sale_coupon_15
6,00EGP
In stock
In stock
18
People watching this product now!
-
Return within 14 days
Payment Methods:
Description

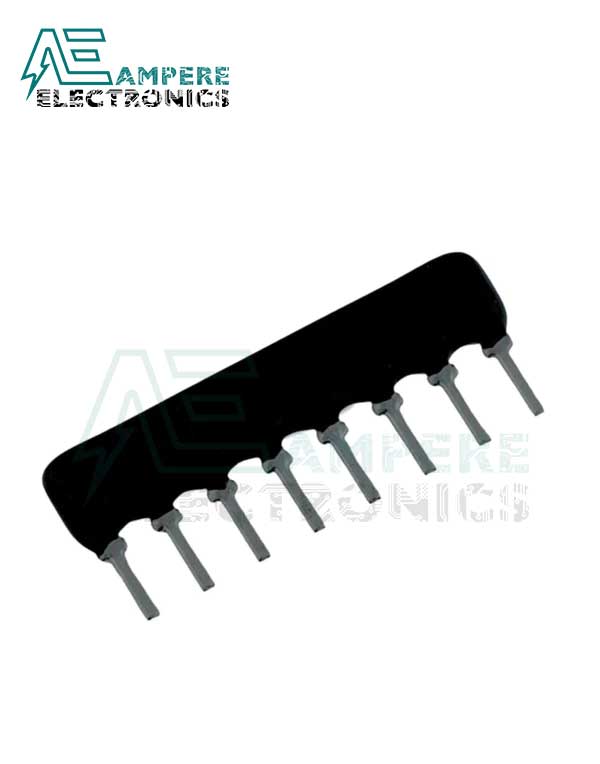

330ohm 7 Resistor Network (8pins)
Array resistors have a broad resistance range and are suitable for a range of applications. Constructed from a flame retardant epoxy resin body, these network resistors offer protection against shock, heat and moisture.
- Low profile
- Range of pin packages enables you to be flexible with your designs
- Marking on contrasting background enables permanent identification
Specifications:
|
Attribute
|
Value
|
|---|---|
| Resistance | 330ohm |
| Resistor Type | Network |
| Number of Resistors | 7 |
| Package/Case | SIP |
| Power Rating | 1W |
| Termination Style | Through Hole |
| Tolerance | ±2% |
| Case Style | Conformal |
| Power Rating per Resistor | 0.2W |

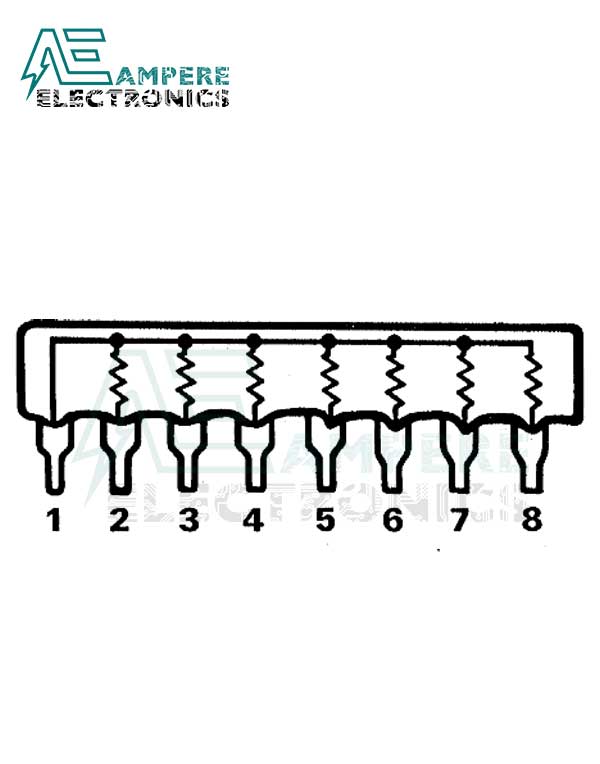

| Circuit Designator | BUS |
| Length | 20.27mm |
| Depth | 2.49mm |
| Height | 5.08mm |
| Dimensions | 2.49 x 5.08 x 20.27mm |
| Number of Terminals | 8 |
| Series | 4600X |
| Temperature Coefficient | ±100ppm/°C |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
Package Includes:
- 1x Resistor Array
