SKU: 26062

4.5:30Vdc Digital Voltmeter Panel Two-wire 0.56 inch

50,00 EGP

4.5:30Vdc Digital Voltmeter Panel Two-wire 0.56 inch

  • Operating voltage range: 4.5:30VDC
  • Current consumption: <20mA
  • Measurement range: Same as operating voltage
  • Min dimensions for mounting hole: 45.5×26.5mm
  • Min mounting depth: 22mm
  • Cover frame dimensions: 47.8x29x2.5mm

Out of stock

SKU: 26062 Category:

Description

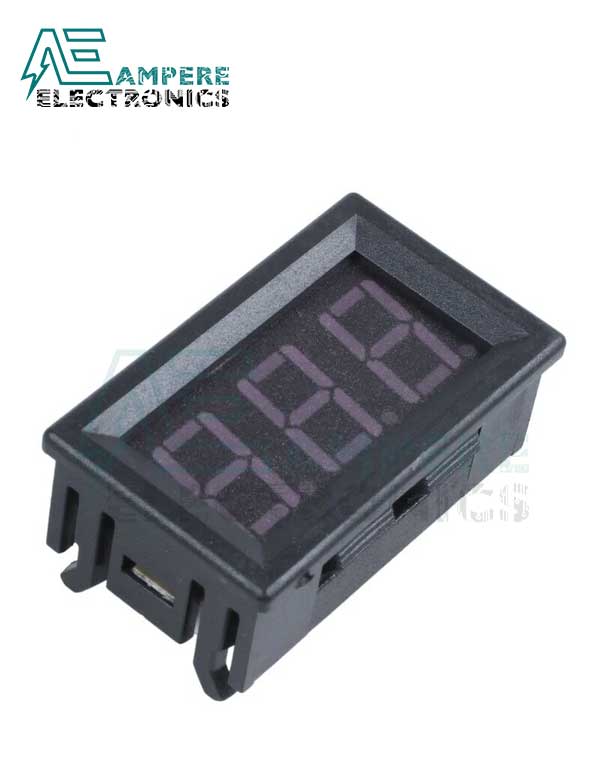

4.5:30Vdc Digital Voltmeter Panel Two-wire 0.56 inch

Panel mounted voltage meter, which can be used in industrial or home environment and if preferred even in vehicles. Just connect 2x leads to your power supply (or that particular place you want to measure or monitor) and you are all set.

Specifications:

  • Operating voltage range: 4.5:30VDC
  • Current consumption: <20mA
  • Measurement range: Same as operating voltage

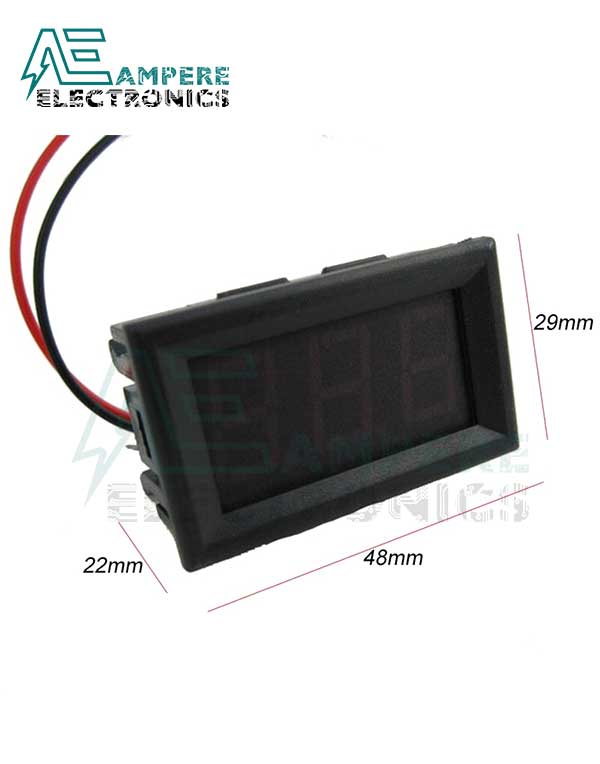

  • Min dimensions for mounting hole: 45.5×26.5mm
  • Min mounting depth: 22mm
  • Cover frame dimensions: 47.8x29x2.5mm

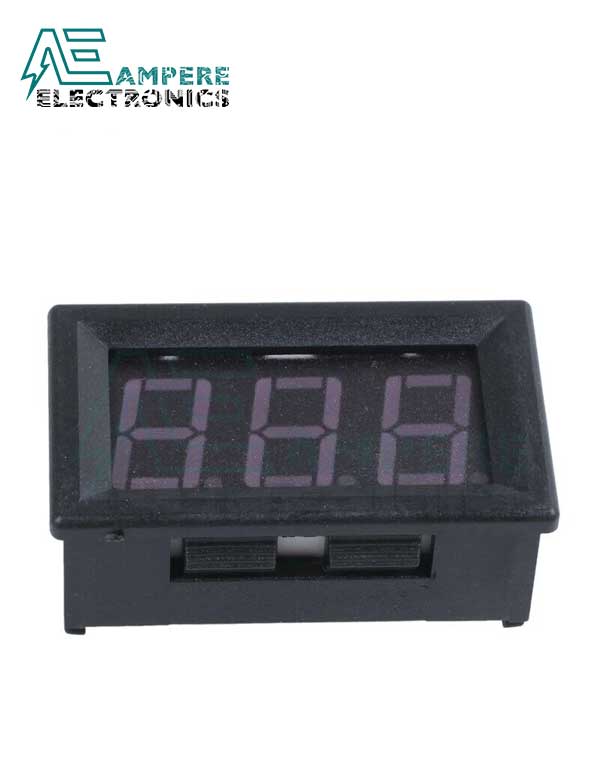

  • Display type: 3-digit 7-segment LED display with 10x15mm digit size
  • Resolution: 0.1V
  • Display color: Red
  • Accuracy: 1% (+/- 1 digit)
  • Refresh rate:?~500ms
  • Connection:?~150mm wire

Package Includes:

  • 1x Voltmeter Panel
