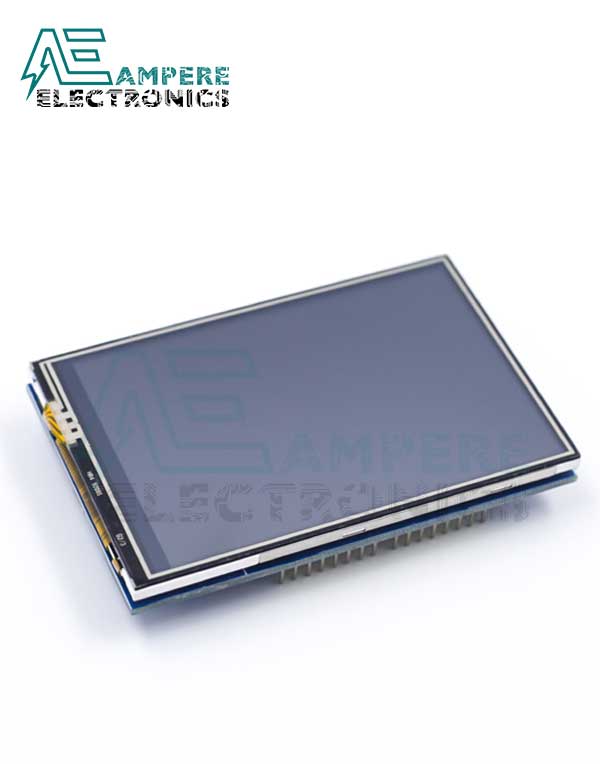

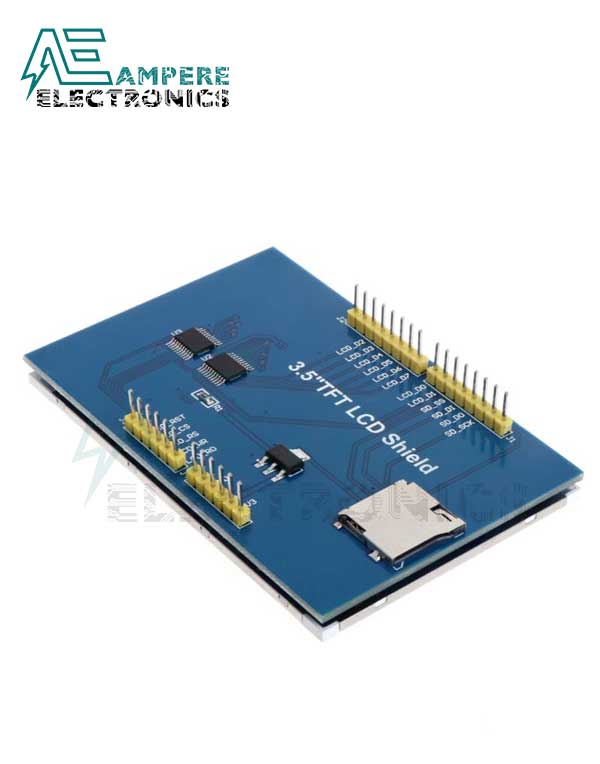

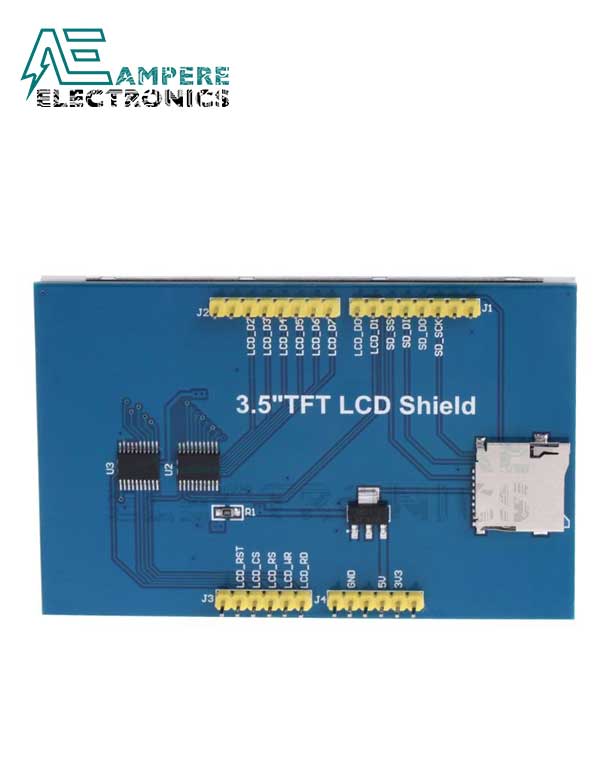

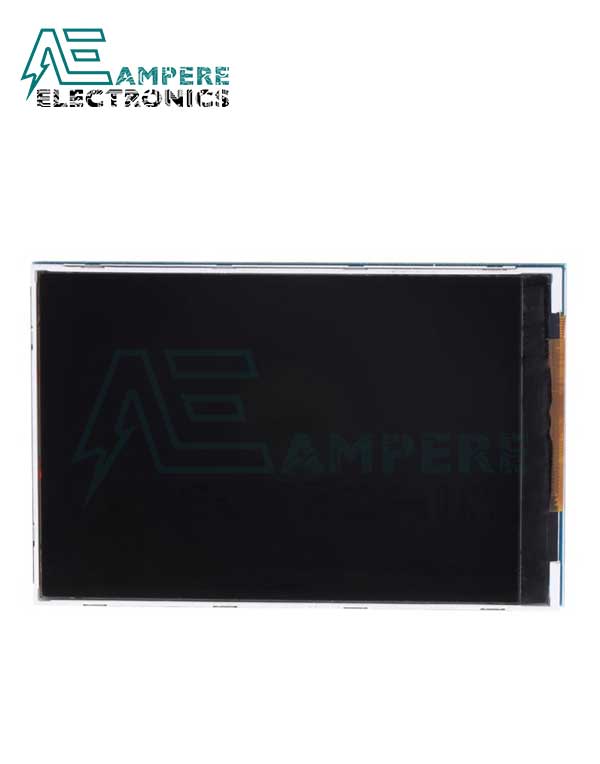

3.5 Inch TFT LCD Shield Touch Display Module for Arduino

Description

3.5 Inch TFT LCD Shield Touch Display Module for Arduino

• Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
• 480X320 resolution, clear display, support for touch function
• Support 16-bit RGB 65K color display, display rich colors
• 8-bit parallel bus, faster than serial SPI refresh
• On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
• Easy to expand the experiment with SD card slot
• Provides an Arduino library with a rich sample program
• Military-grade process standards, long-term stable work
• Provide underlying driver technical support

Specification:

• Display Color: RGB 65K color
• SKU: MAR3501
• Screen Size: 3.5(inch)
• Type: TFT
• Driver IC: ILI9486
• Resolution: 480*320 (Pixel)
• Module Interface: 8-bit parallel interface
• Active Area: 73.44*48.96(mm)

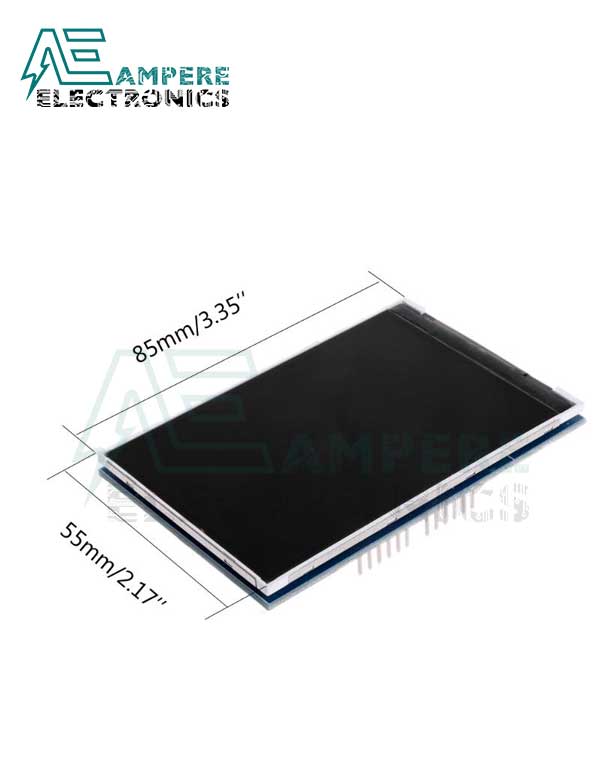

• Module PCB Size: 85.49*55.63(mm)
• Operating Temperature:-20?~70?
• Storage Temperature: -40?~70?
• Operating Voltage: 5V/3.3V
• Product Weight: 44Gm

Package Includes:

• 1x 3.5 inch TFT LCD Shield
