SKU: 25561

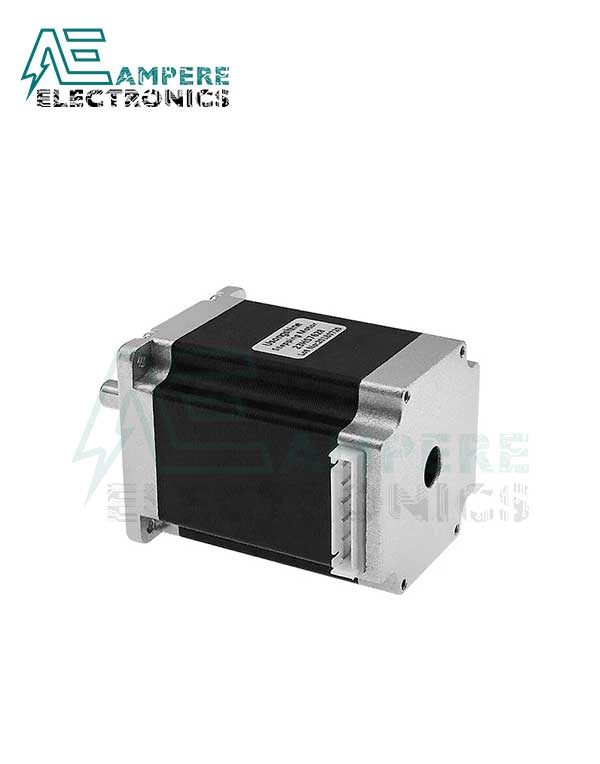

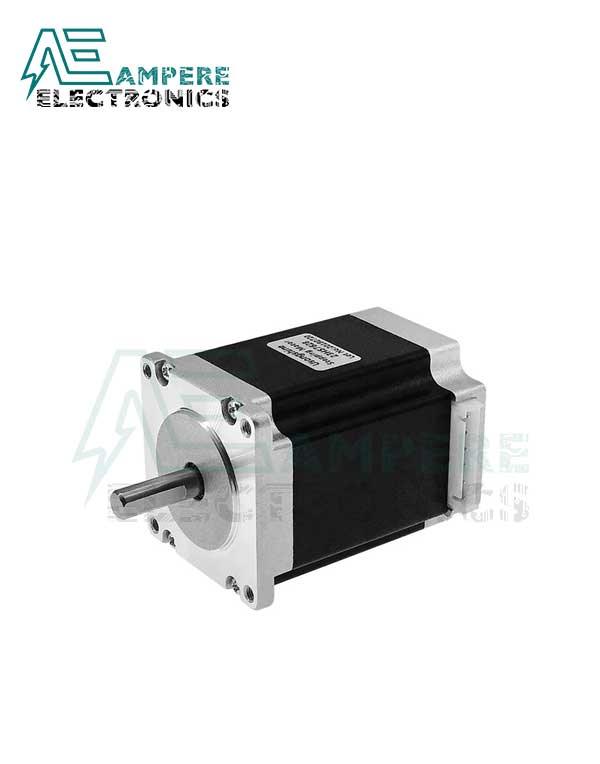

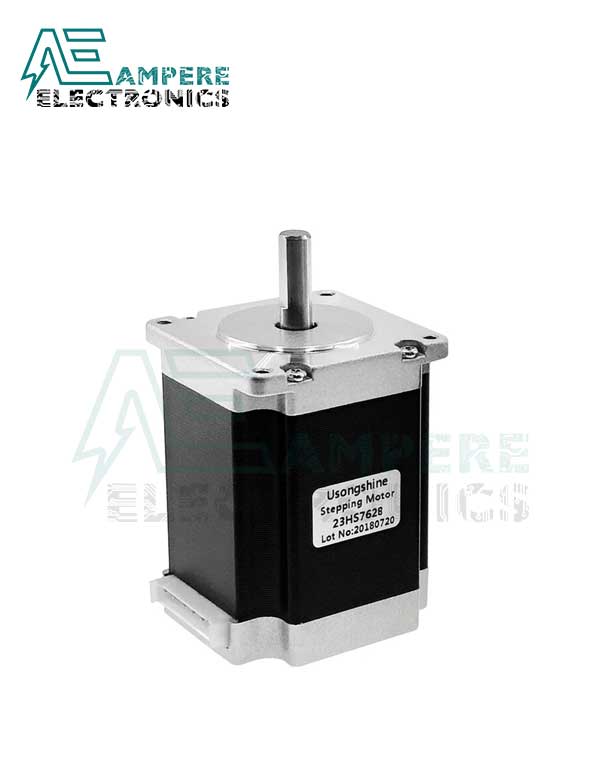

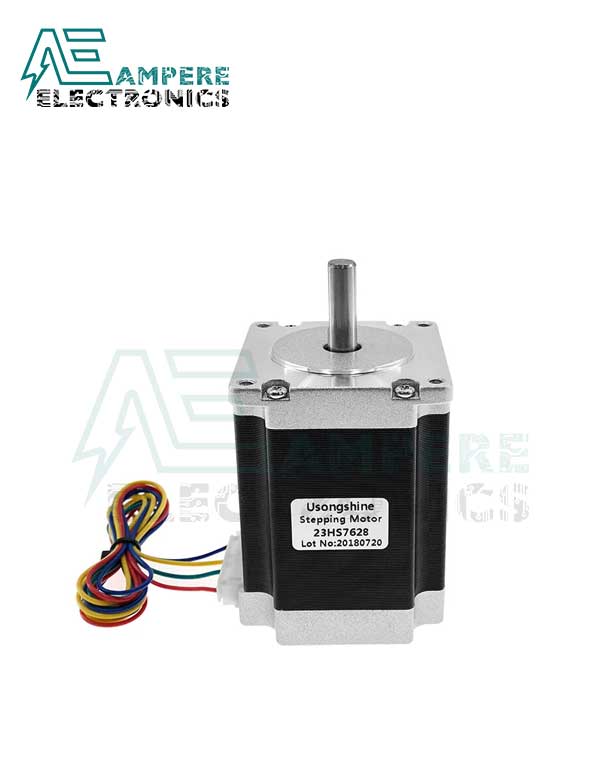

23HS7628 Nema23 Stepper Motor

950,00 EGP

23HS7628 Nema23 Stepper Motor

  • Model: 23HS7628
  • Shaft Diameter: 8mm
  • Step Angle: 1.8?
  • Motor Length: 76mm
  • Rated Current: 2.8A
  • Phase Resistance: 1.13 ohms
  • Phase Inductance: 3.6mH
  • Holding Torque: 18.9Kg.cm
  • Lead Wire: No.4
  • Motor Wire: The default length is 30cm

In stock

SKU: 25561 Category:

Description

23HS7628 Nema23 Stepper Motor

  • Model: 23HS7628
  • Shaft Diameter: 8mm
  • Step Angle: 1.8?
  • Motor Length: 76mm
  • Rated Current: 2.8A
  • Phase Resistance: 1.13 ohms
  • Phase Inductance: 3.6mH
  • Holding Torque: 18.9Kg.cm
  • Lead Wire: No.4
  • Motor Wire: The default length is 30cm
Features:
  • Widely used in 3D printers, surveillance equipment, medical / textile / packaging machinery and stage lighting, etc.
  • The motor wire is made of pure copper, with uniform copper wire layout and corrosion resistance.
  • The motor adopt 4 pin cable outlet method, easy to connect.
  • Made of high-quality materials, durable and long service.
  • Available in two shaft diameter for choice:? 8mm.
Package Includes:
