2000W SCR Dimmer 220Vac

Description

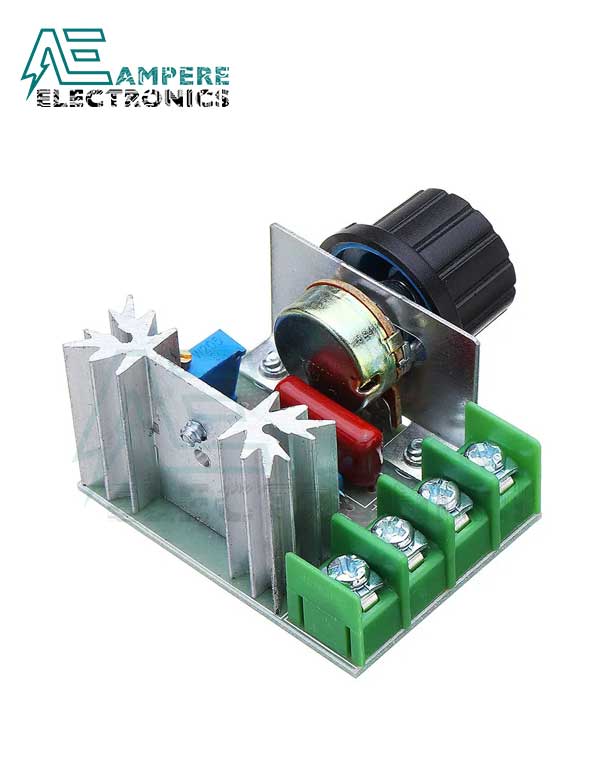

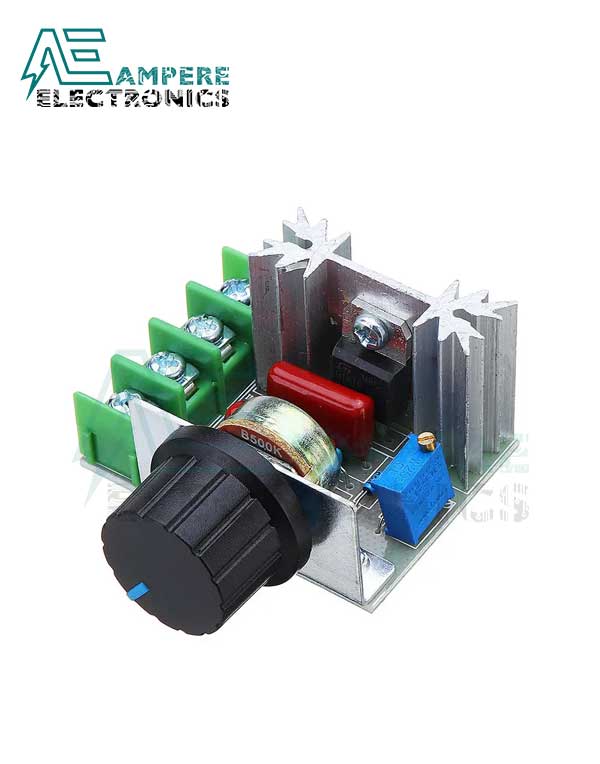

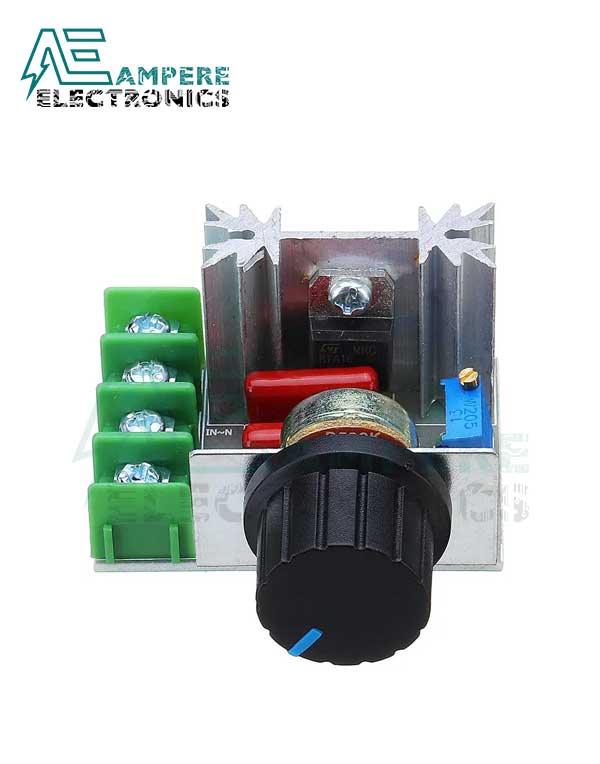

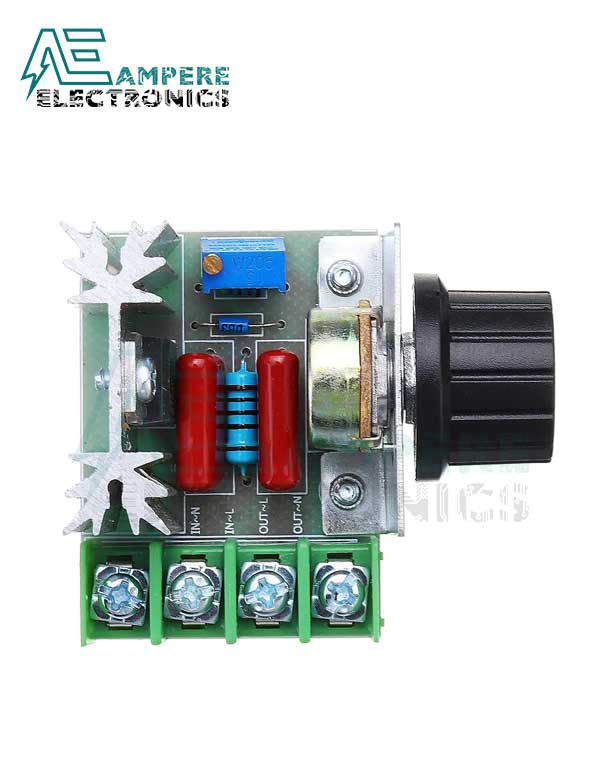

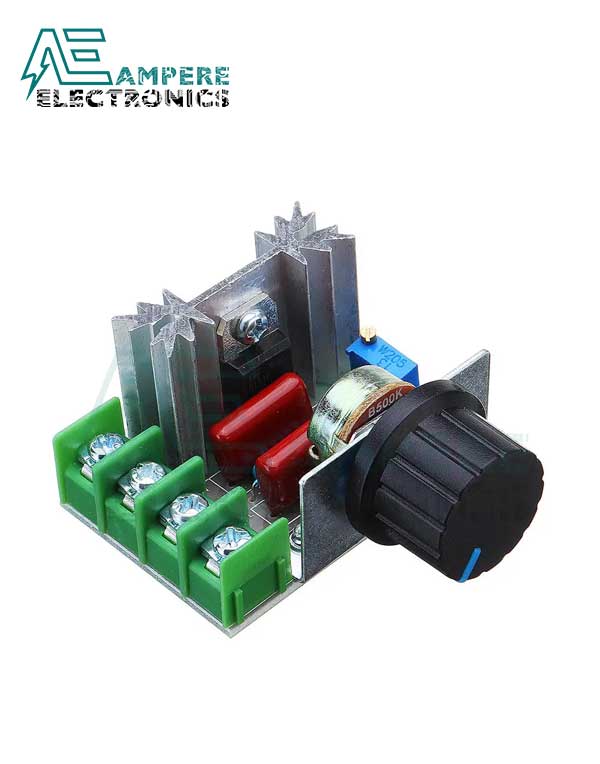

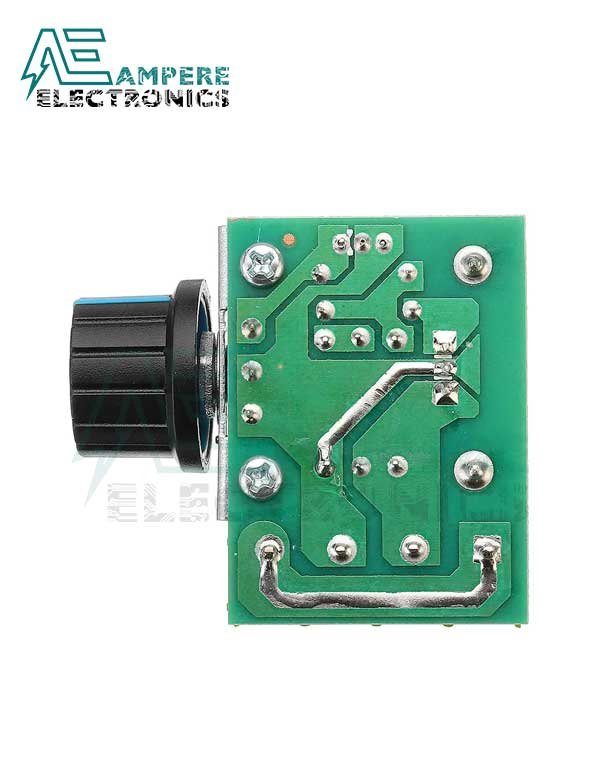

2000W SCR Dimmer 220Vac

This is a high-power electronic voltage regulator, work power up to 2000w, generally can be used to adjust the voltage, adjust the light, adjust the motor speed, or adjust the temperature. In the case of access to the load, we can use it to adjust the AC voltage, adjust the range from AC50V to AC220V, it uses the circuit board is the FR-4 circuit board which can bear high temperature, the maximum voltage, and current is 1200V/25A.

Usage:
Series in the circuit of household appliances, (disconnect the household appliances FireWire or zero lines, and then connect the two lines of products) Rotary potentiometer knob, you can play light and dark regulation, speed, pressure, thermostat effect; Very easy to use.

Features:

• Working Voltage?AC220V
• Maximum Power: 2000W
• Voltage Regulation: AC 50-220V
• Board Size?36MM * 48MM
• Thick Epoxy CCL: 1.6mm

Package Includes:

• 1 x 2000W SCR Dimmer 220Vac
