SKU: 22241

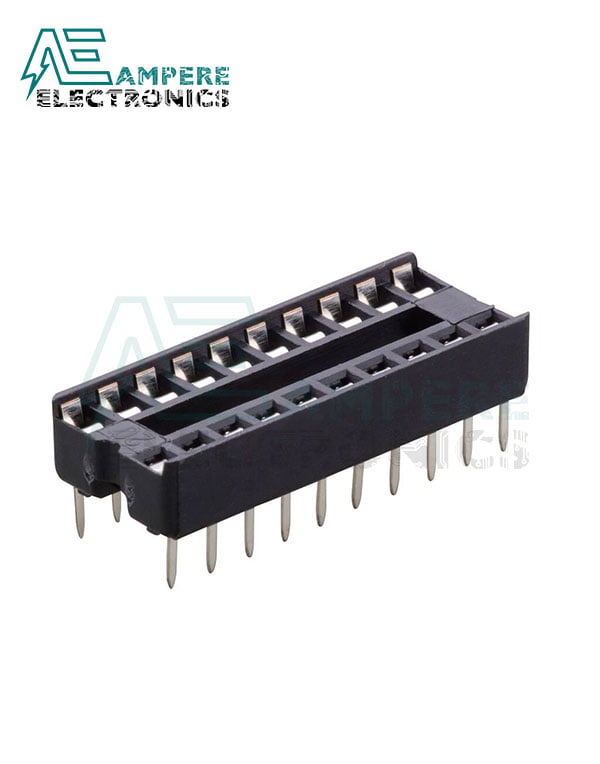

20-Pin DIP IC Socket
1,50 EGP
20-Pin DIP IC Socket
- Number of Contacts: 20
- Pitch: 2.54mm
- Row Width: 7.62mm
- Current Rating: 1A
- Voltage Rating: 60Vac
In stock
Description
20-Pin DIP IC Socket
A range of open frame IC DIP sockets with a 2.54mm pitch. These 2.54mm PCB through hole mount IC DIP sockets have a black UL94V-0 PBT insulator and stamped tin plated phosphor bronze contacts.
- Number of Contacts: 20
- Pitch: 2.54mm
- Row Width: 7.62mm
- Current Rating: 1A
- Voltage Rating: 60Vac
Specifications:
| Attribute | Value |
| Number of Contacts | 20 |
| Mounting Type | Through Hole |
| Pin Type | Stamped |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Tin |
| Current Rating | 1A |
| Orientation | Vertical |
| Length | 25.4mm |
| Width | 10.16mm |
| Depth | 5.1mm |
| Dimensions | 25.4 x 10.16 x 5.1mm |
| Voltage Rating | 60 V ac |
| Minimum Operating Temperature | -55?C |
| Contact Material | Phosphor Bronze |
| Housing Material | PBT |
| Maximum Operating Temperature | +85?C |
Package Includes:
- 1x DIP Socket
