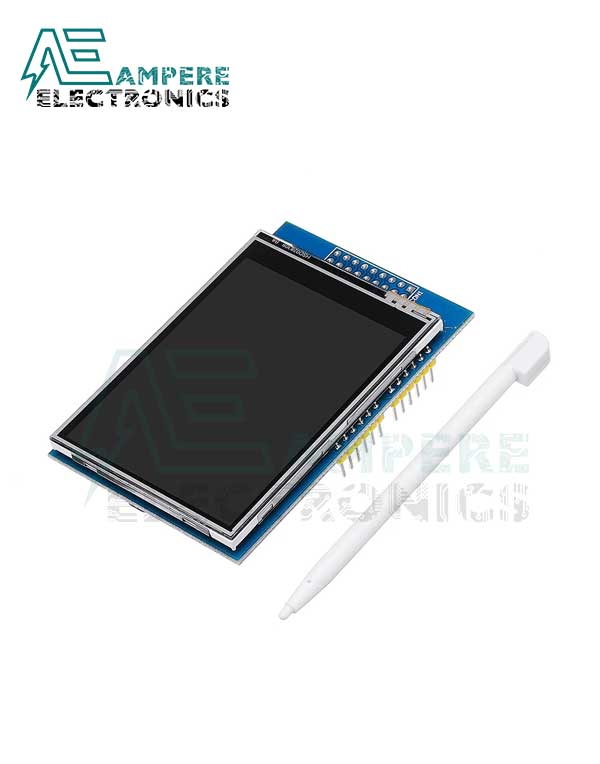

2.8 Inch TFT LCD Shield Touch Display Module for Arduino

Description

2.8 Inch TFT LCD Shield Touch Display Module for Arduino

• Supports development boards such as Arduino and Mega2560 for direct plug-in use without wiring.
• 320X240 resolution, clear display, support for touch function.
• Support 16-bit RGB 65K color display, display rich colors.
• 8-bit parallel bus, faster than serial SPI refresh.
• On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage.
• Easy to expand the experiment with SD card slot.

Specification:

• SKU: MAR2808
• Size: 2.8 inch
• Type: TFT
• Driver Chip: ILI9341 / HX8347
• Resolution: 320×240 (Pixel)
• Module Interface: 8-bit parallel interface
• Effective Display Area: 43.2×57.6mm
• Working temperature: -20? ~ 70?
• Storage temperature: -40? ~ 70?
• Working Voltage : 5V
• Power consumption: about 90mw
• Module PCB Size: 78.22×52.7mm/3.08×2.07 inch

Package Includes:

• 1x 2.8 inch TFT LCD Shield

Instructions:

• Tutorial Link
