SKU: 25678

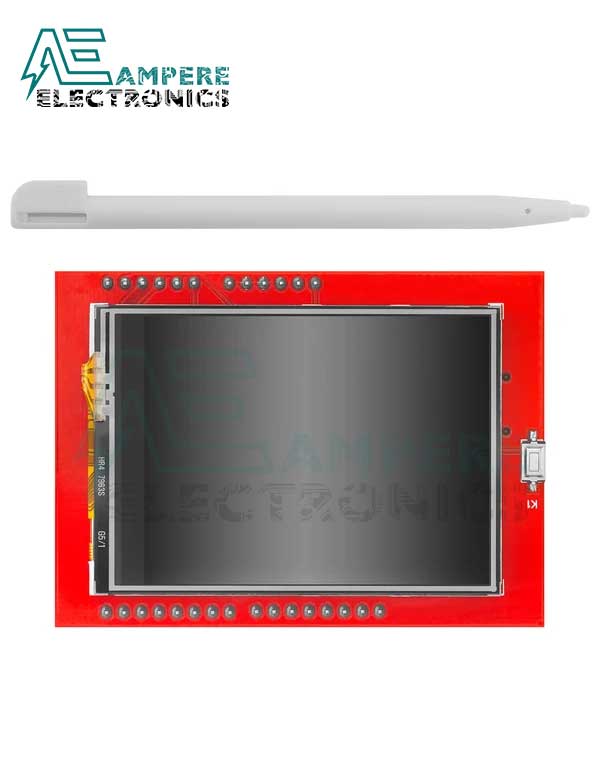

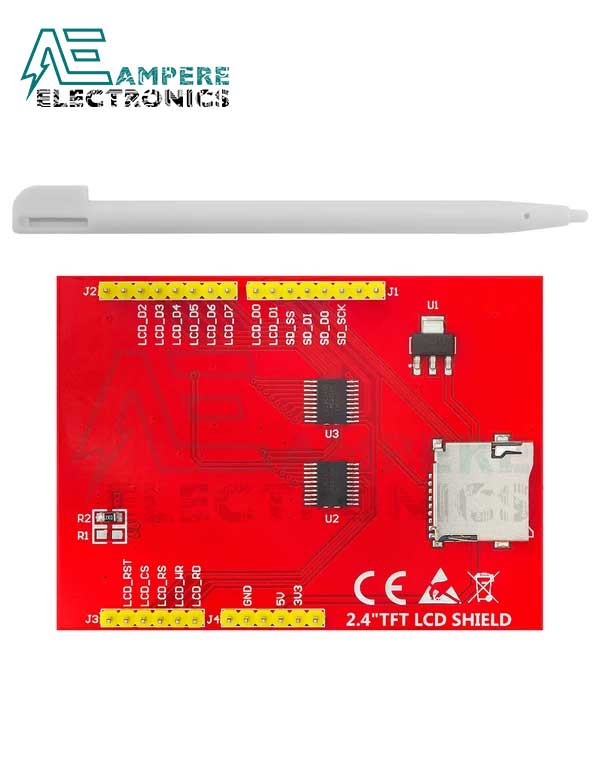

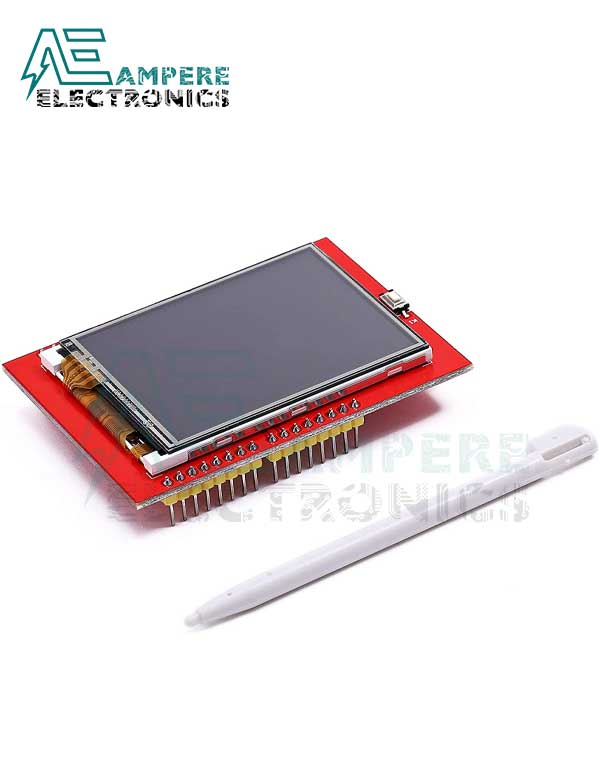

2.4 Inch TFT LCD Shield Touch Display Module for Arduino
275,00 EGP
2.4 Inch TFT LCD Shield Touch Display Module for Arduino
- Screen Size: 2.4(inch)
- Type: TFT
- Driver IC: ILI9341
- Resolution: 320*240 (Pixel)
- Module Interface: 8-bit parallel interface
- Active Area: 48.96*36.72(mm)
- Module PCB Size: 72.20*52.7(mm)
- Operating Temperature:-20?~60?
- Storage Temperature: -30?~70?
- Operating Voltage: 5V/3.3V
- Product Weight: 39Gm
Out of stock
Description
2.4 Inch TFT LCD Shield Touch Display Module for Arduino
- Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
- 320X240 resolution, clear display, support for touch function
- Support 16-bit RGB 65K color display, display rich colors
- 8-bit parallel bus, faster than serial SPI refresh
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Easy to expand the experiment with SD card slot
- Provides an Arduino library with a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Specification:
- Display Color: RGB 65K color
- SKU: MAR2406
- Screen Size: 2.4(inch)
- Type: TFT
- Driver IC: ILI9341
- Resolution: 320*240 (Pixel)
- Module Interface: 8-bit parallel interface
- Active Area: 48.96*36.72(mm)
- Module PCB Size: 72.20*52.7(mm)
- Operating Temperature:-20?~60?
- Storage Temperature: -30?~70?
- Operating Voltage: 5V/3.3V
- Product Weight: 39Gm
Package Includes:
- 1x 2.4 inch TFT LCD Shield
