SKU: 25772

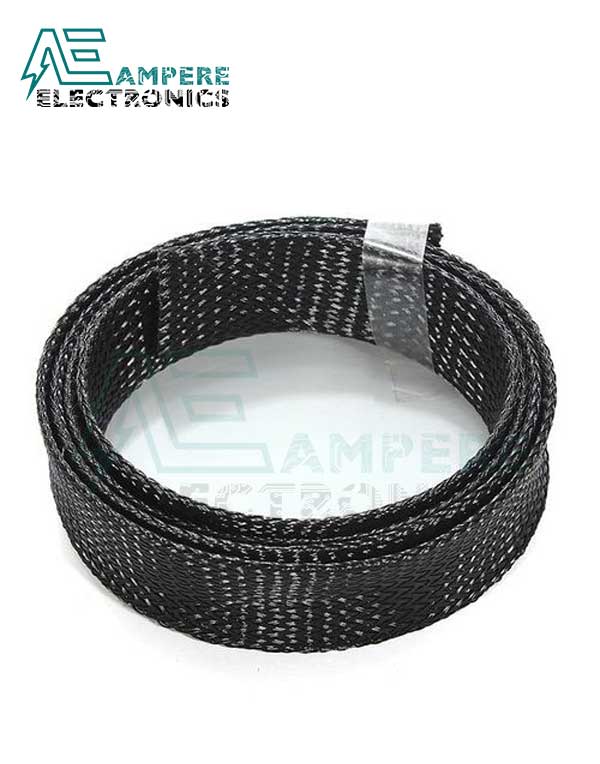

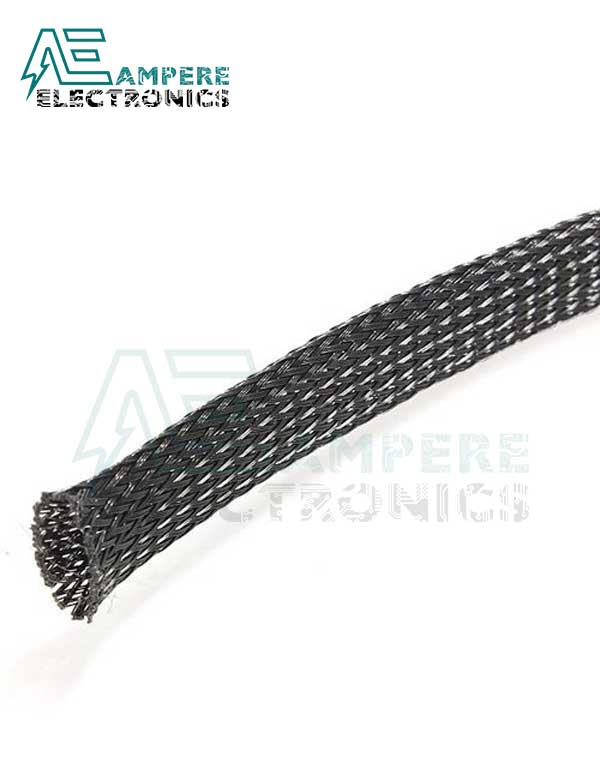

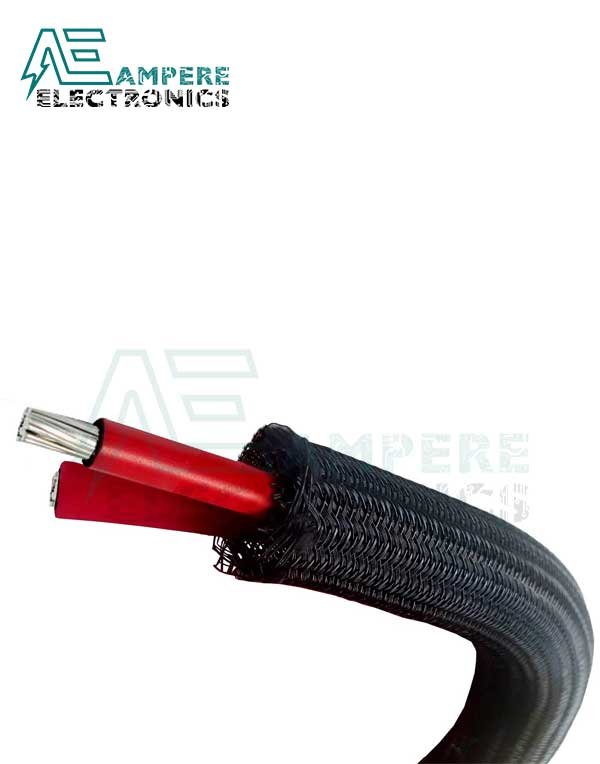

15mm Expandable Braided Cable Sleeve 1 Meter
17,00 EGP
15mm Expandable Braided Cable Sleeve 1 Meter
- Made of sturdy polyester
- Highly flexible
- High rate of expansion
- Easy to apply over irregular shapes
- Good abrasion resistance
In stock
Description
15mm Expandable Braided Cable Sleeve 1 Meter
Base Data
| Application Tool | HSG0 |
| Color | Black (BK) |
| Open, post termination (Yes/No) | No |
| Pack Cont. | 100m |
| Package Quantity per | meter |
| PART DESCRIPTION | HEGPX20-PET-BK |
| Product Family | Helagaine HEGPX |
| Product Group | High-expansion polyester braided sleeve |
| Short Description | High expansion braided sleeve black 20 mm |
Product Dimensions
 | |
| Bundle ? max. | 40mm |
| Bundle ? min. | 15mm |
| Length (L) | 100m |
| Nominal ? | 20mm |
| Nominal ? | 0.5“ |
| ? D | 0.79“ |
Material and Specifications
| ELV compliant (Article 4 – 2) | YES |
| Flammability | UL 94 V2, FMVSS 302 |
| Halogen free | Yes |
| Hazardous good | No |
| Material | Polyester (PET) |
| Melting Point | +250 ?C |
| Operating Temperature – ?C | -50 ?C to +150 ?C |
| Specifications |  ? ? ? |
| Specifications | ANSI/NFPA 70, EN 45545-2 |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E197993 |
