100Vdc 10A Voltmeter Ammeter Panel

Description

100Vdc 10A Voltmeter Ammeter Panel

Specifications:

• Voltage measurement range: 0.0V-100V
• Current test range: 0-999mA, 0-10A
• Power supply range: DC4-30.0V
• Voltage error: ?0.1%
• Current error: ?1%
• Working current: < 20mA
• Refresh rate: about 300mS once
• Display mode: double three-digit 0.28″ LED digital tube
• Display color: red + red, red + blue. Optional
• Lead length: 15cm
• Dimensions: 48 x 29 x 22 mm
• Mounting hole: 46 x 27 mm
• Working temperature: -10 ? C ~ 65 ? C

Package Includes:

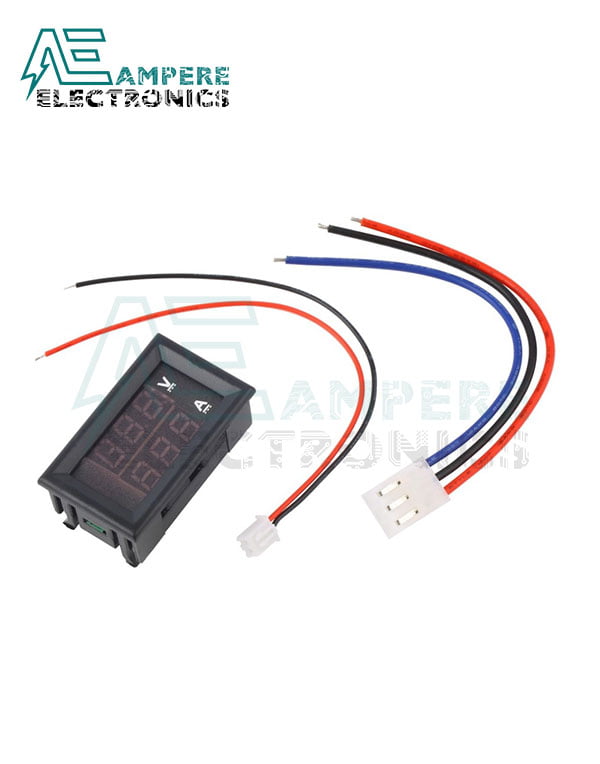

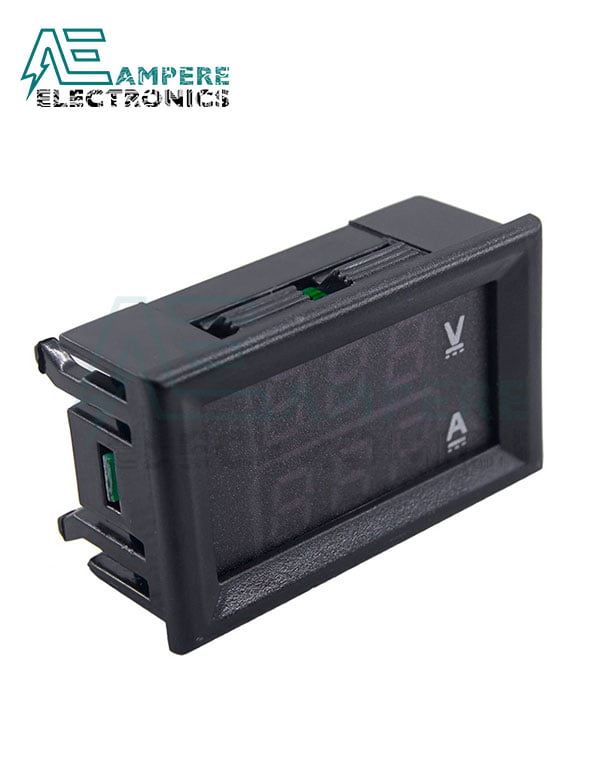

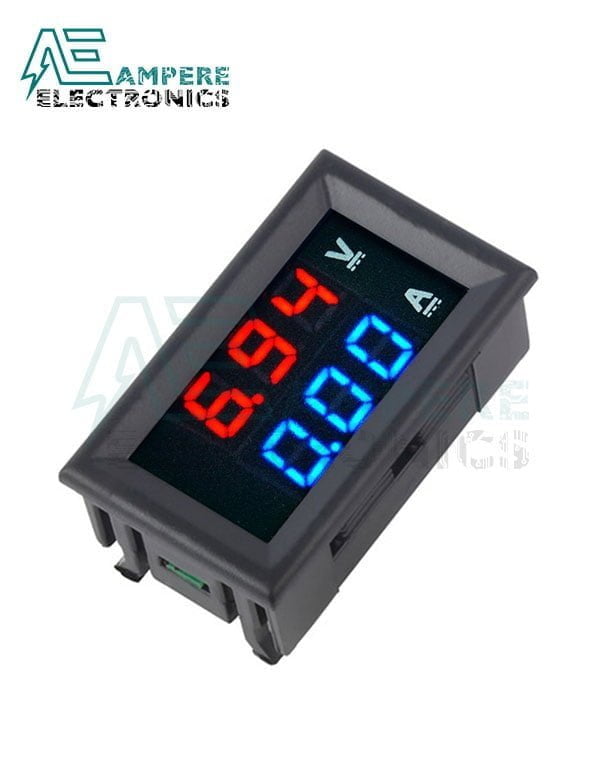

• 1x Voltmeter Ammeter Panel
