SKU: 25465

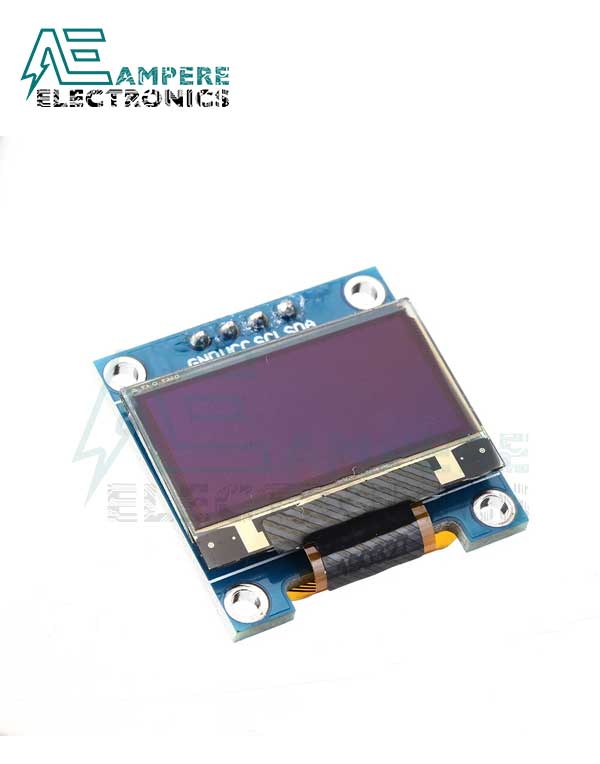

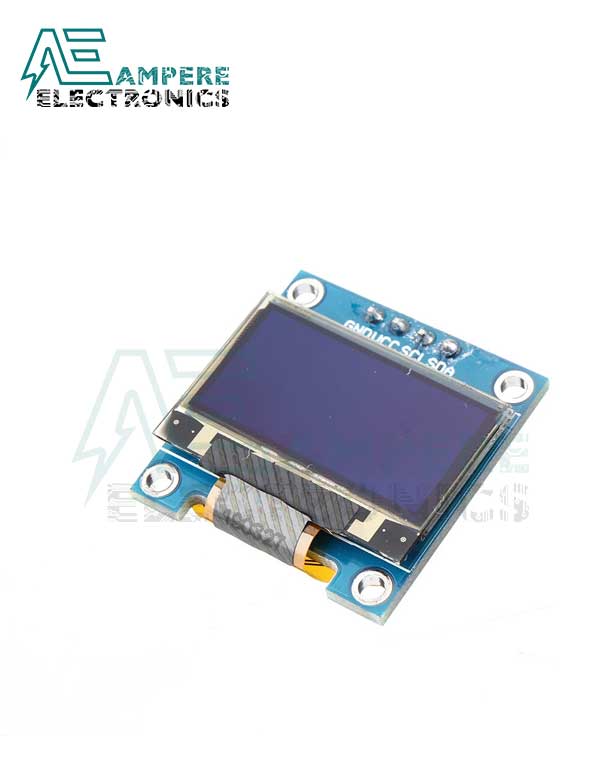

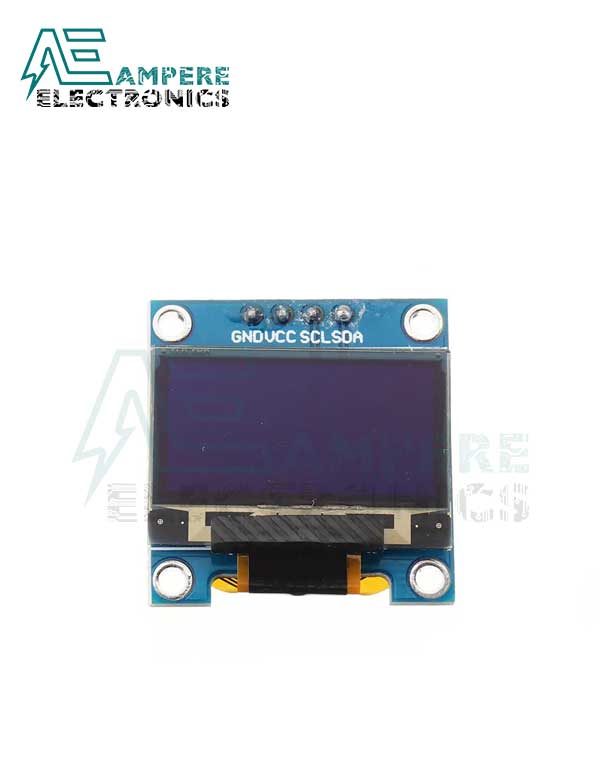

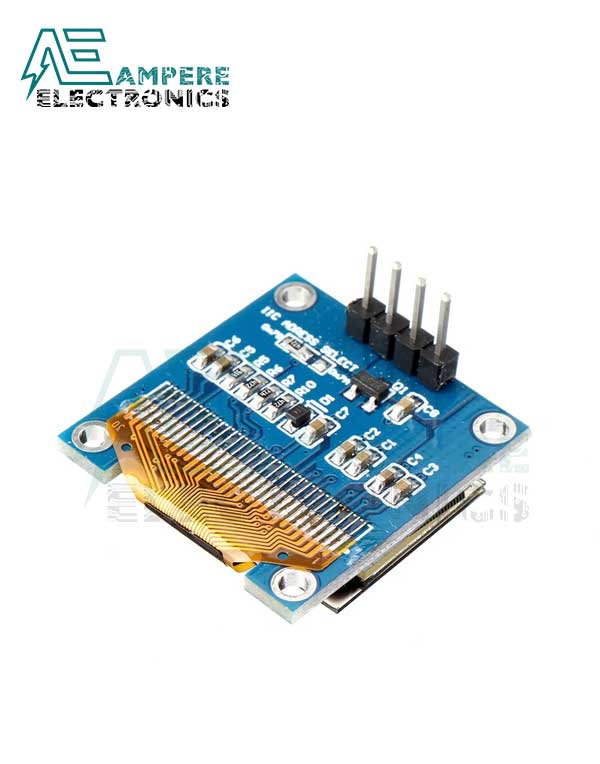

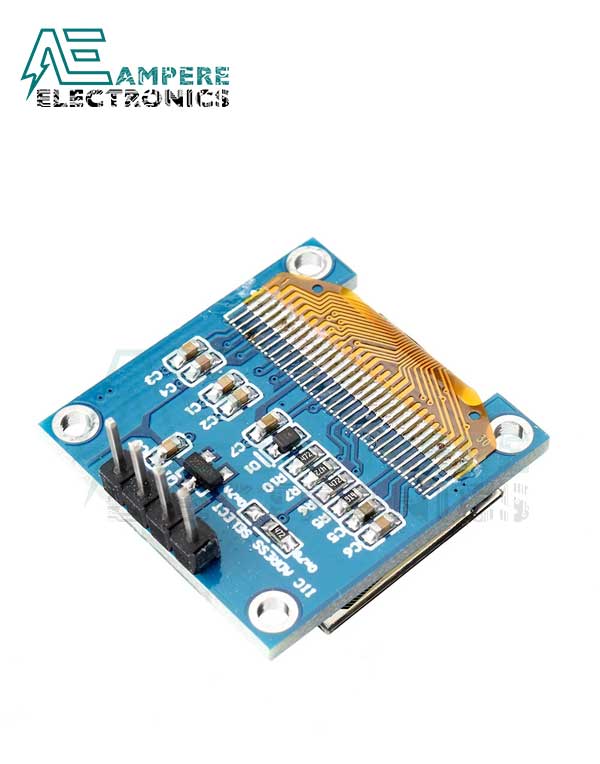

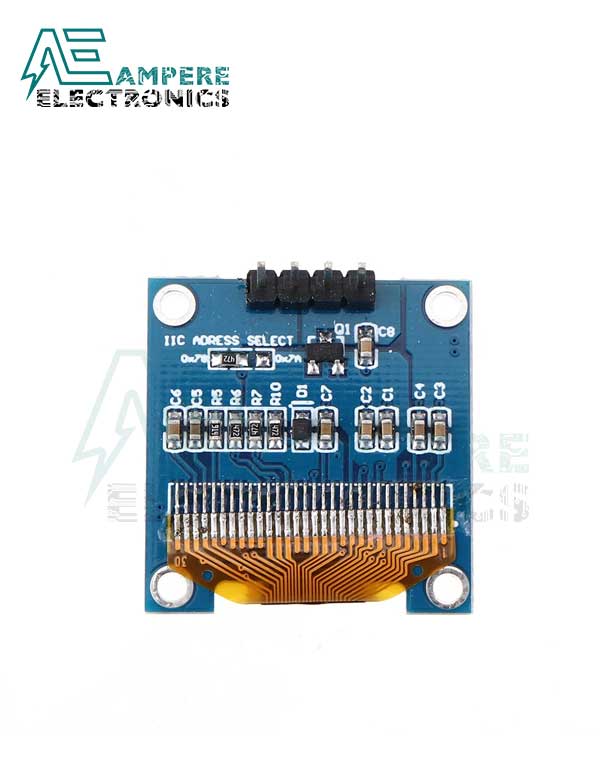

0.96 In OLED Display Module 128X64 4Pin I2C IIC
150,00 EGP
0.96 In OLED Display Module
- Display Size: 0.96 inch
- Dimension: 26.3×26.1 mm
- Display area: 21.7×10.9 mm
- Display Driver IC: SSD1315
- Resolution? 128×64
- Port: IIC
- Operating Voltage: 3.3-5V
- Display color: Blue, White (Optional)
In stock
Description
0.96 In OLED Display Module 128X64 4Pin I2C IIC
Perfect for small projects, wearables, and other portables. You can view its crispy graphics from a wide, 160-degree angle range. And it has a low 0.06W power consumption in regular working conditions. Extreme temperatures are even no match for this module which can operate in -30 to 70 degree C temperatures.
It’s IIC communication port supported and you can find the pin map on the front of the pre-attached breakout board.
Specifications
- Display Size: 0.96 inch
- Dimension: 26.3×26.1 mm
- Display area: 21.7×10.9 mm
- Display Driver IC: SSD1315
- Resolution? 128×64
- Port: IIC
- Operating Voltage: 3.3-5V
- Display color: Blue, White (Optional)
Links:
- 1x 0.96 In OLED Display Module
